Sina Ekato
1 / 4

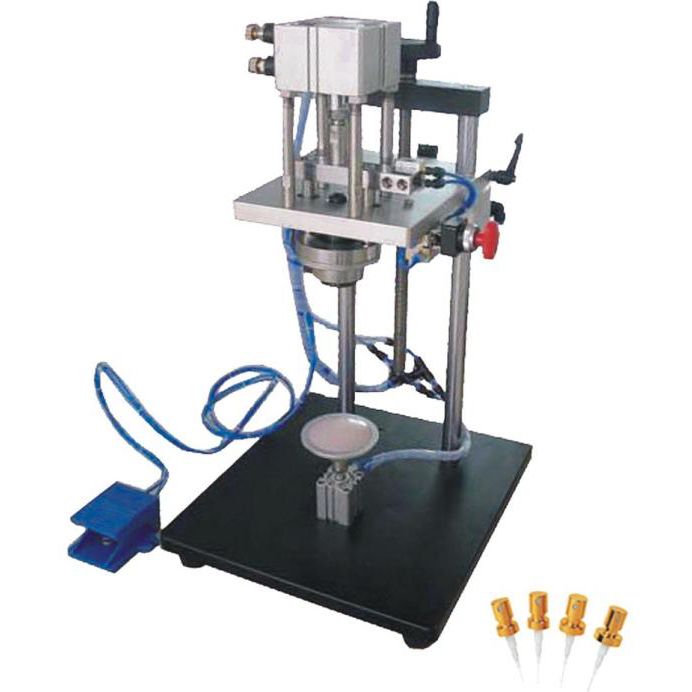

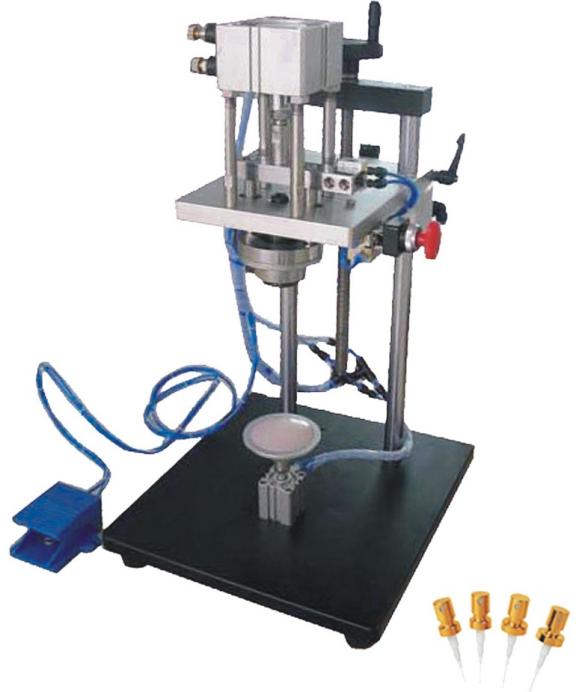

Semi-auto Perfume Crimping Machine
(Crimping head available in 13mm, 15mm, 17mm, 21mm, etc.)
Semi-auto Perfume Collaring Machine
(Collaring head available in 13mm, 15mm, 17mm, 21mm, etc.)

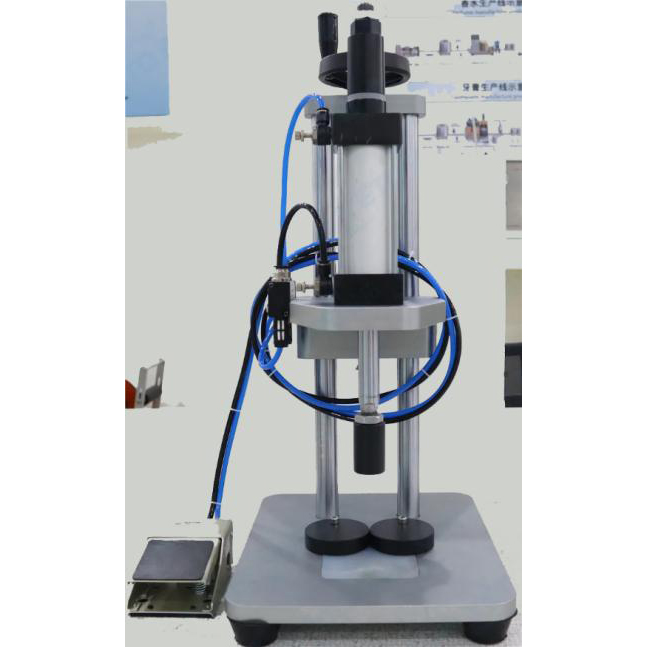

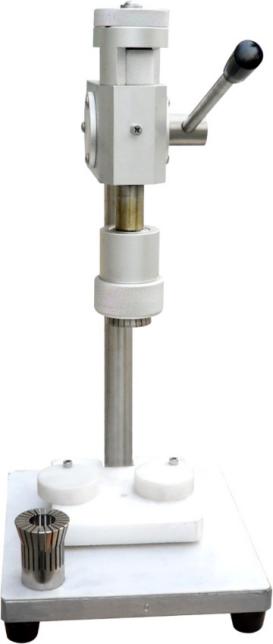

Manual Collaring Machine / Manual Crimping Machine
| Bottle height | ≤250mm |
| Maximum diameter of bottle mouth | ≤20mm |
| Minimum diameter | ≥4.5mm |
| Adjustable liquid level high (from the bottle mouth) | 26-50mm |
| Boundary dimension (excluding liquid storage bottle) | 660X470X 1330mm |
| Power Supply | 220V Single-phase |
| Vacuum pump | XD-020 (explosion-proof type 2X-4A) |
| Pumping rate | 5.5 (explosion-proof type 4) L/s |
| Motor power | 0.75 Kw |

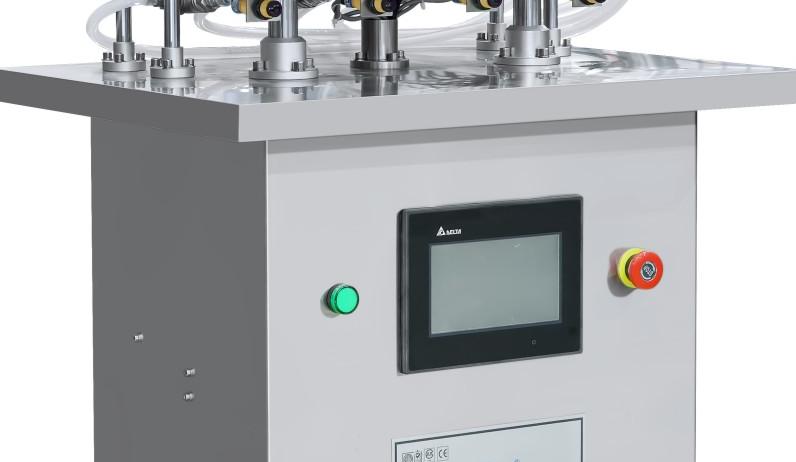

Simple operation panel allows for easy control of working parameters. No intensive training is required for operators. Interface languages can be customized according to operational needs.

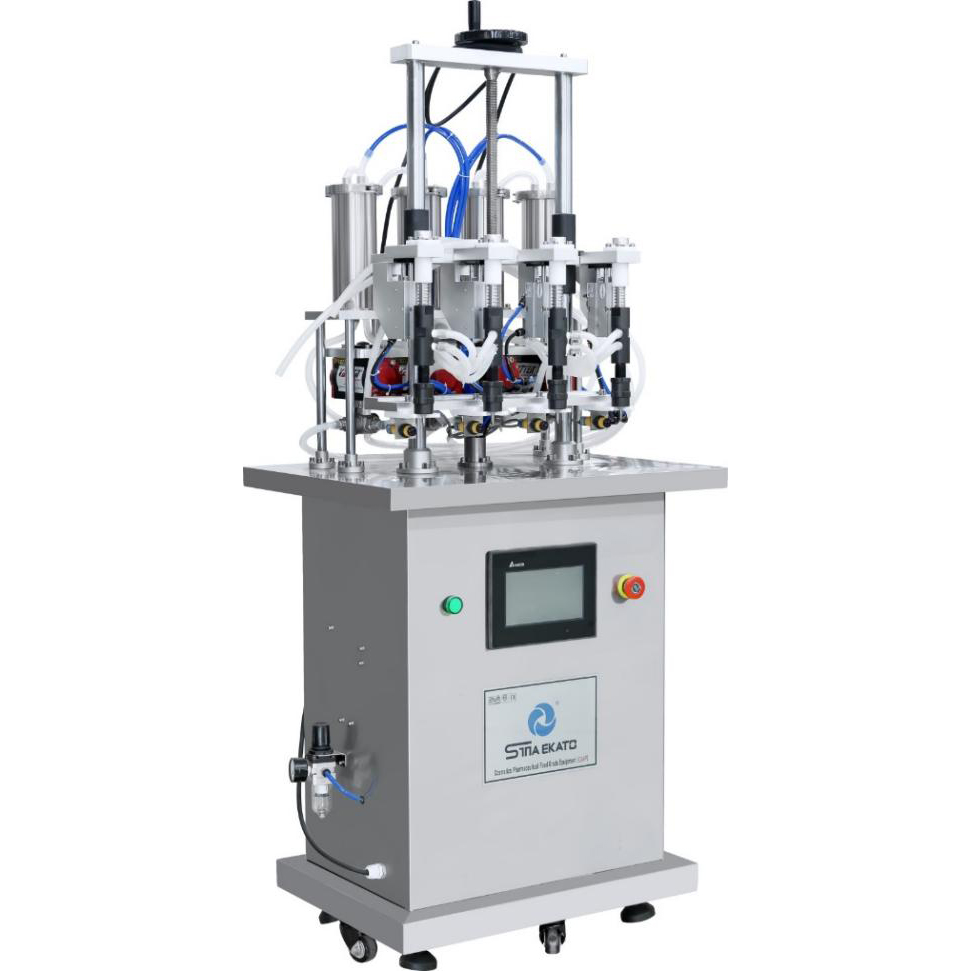

Using the vacuum constant liquid-level principle, liquid is filled accurately. If the liquid level exceeds the marked red line, the system sucks the extra liquid back into the material container. Each nozzle includes a spring mechanism to prevent bottle breakage from air pressure.

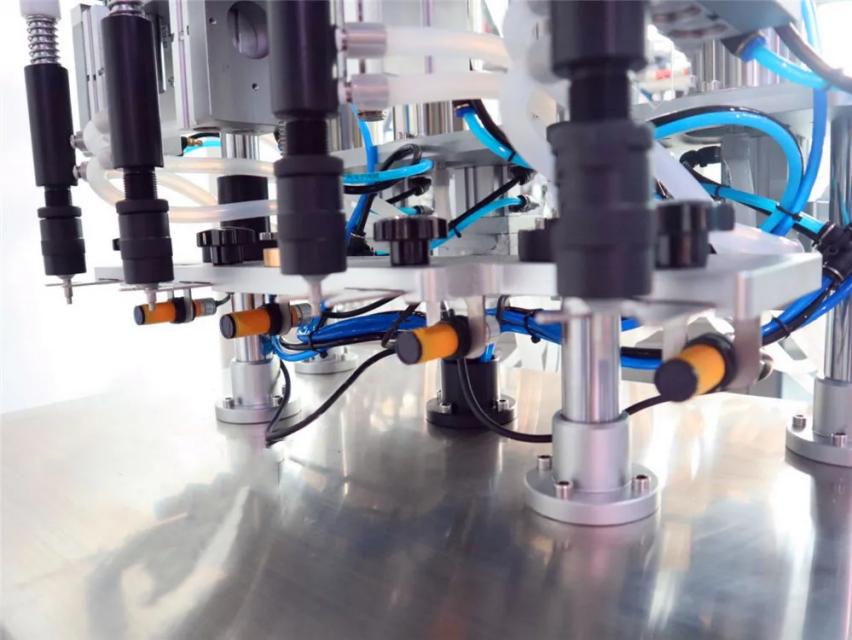

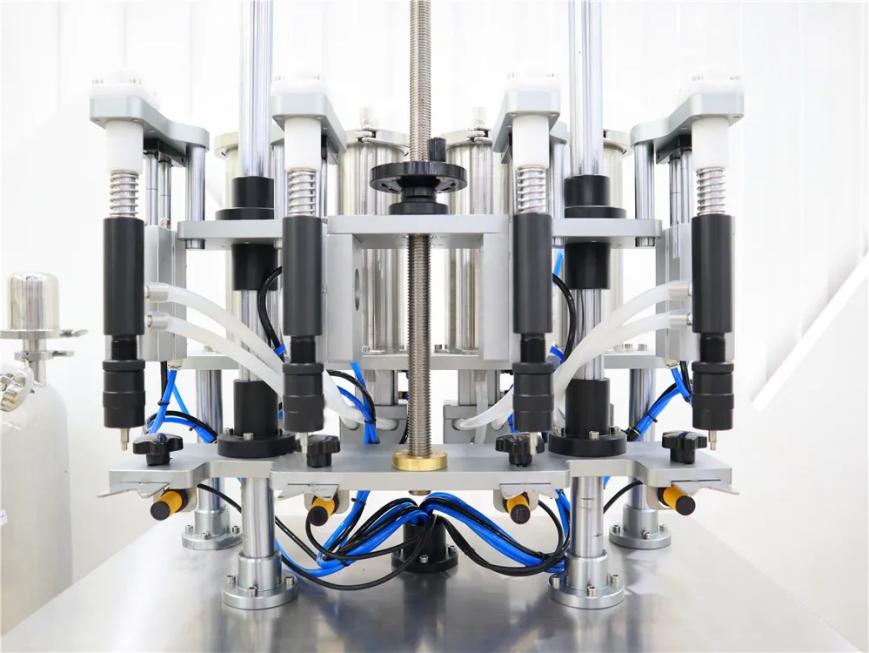

Equipped with high-quality electric eyes, each nozzle is individually controlled. The white bottle-fixing component ensures bottles remain stable during the process, preventing them from falling down.

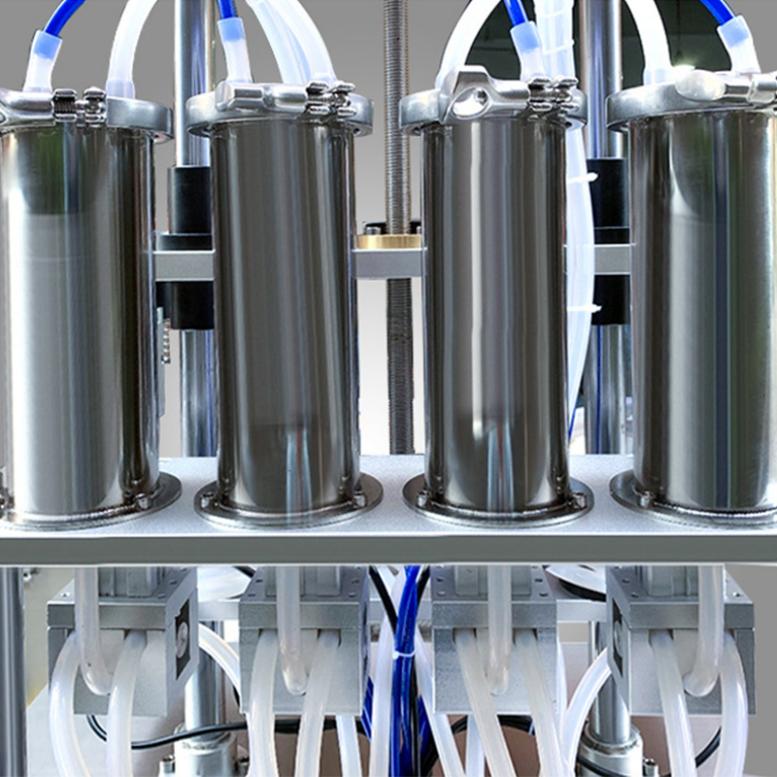

Large material cylinder for containing back-flowed liquid, ensuring continuous filling accuracy.

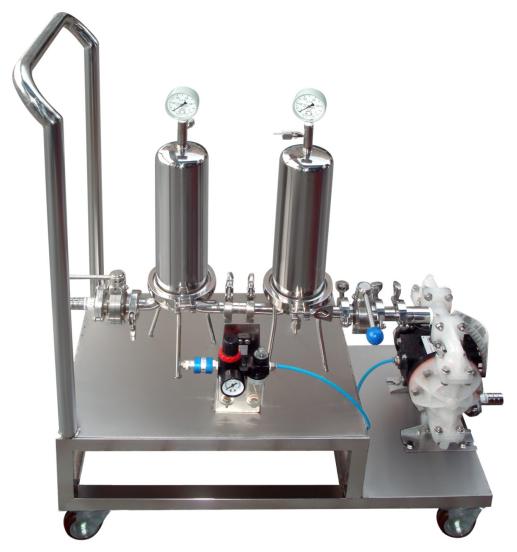

Perfume Cartridge Filter & Diagram Pump: High-efficiency filtering solutions for perfume production.

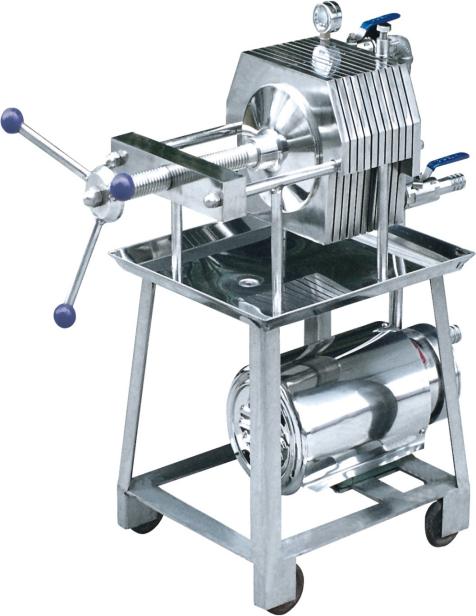

Perfume Paper Filter & Diagram Pump: Optimized for fine clarity and sediment removal.
