Stainless steel heat preservation freezing tank and titanium metal coil pipe; Freezing unit (imported from France Danfoss or Japan Hitachi); Anti-corrosive pneumatic diaphragm pump (imported from USA); Polypropylene micro porous filtration film (from USA); Stainless steel movable supporter, easy to operate; Sealing type electric control system and sanitary pipe fittings and valves, highest-performance.
Perfume-making Machine Fragrance Chiller Filter Mixer applied on perfume, fragrance, parfume, hair spray, body spray, etc.
| Technical Parameter | |||||
| Model | 2P-100 | 3P-200 | 5P-300 | 5P-500 | 10P-1000 |
| Freezing power | 2P | 3P | 5P | 5P | 10P |
| Freezing capacity | 100L | 200L | 300L | 500L | 1000L |
| Filtration precision | 0.1μm | 0.1μm | 0.1μm | 0.1μm | 0.1μm |
| Refrigeration temperature | -5°C to -15°C | ||||
| Refrigeration liquid | R22 (Optional other medium per requirement) | ||||
| Customized sizes available upon request | |||||
Equipped with polypropylene microporous filtration film, achieving accuracy up to 0.2 μm.
Combines Mixing paddle and chilling coil. Material contact part is SUS316L. Single machine realizes mixing, chilling and filtering functions.
Equipped with button controls where each function is manageable separately. Includes emergency stop switch for operator safety.
Handles raw material intake from storage to mixing tank, and discharges finished product to storage tanks efficiently.

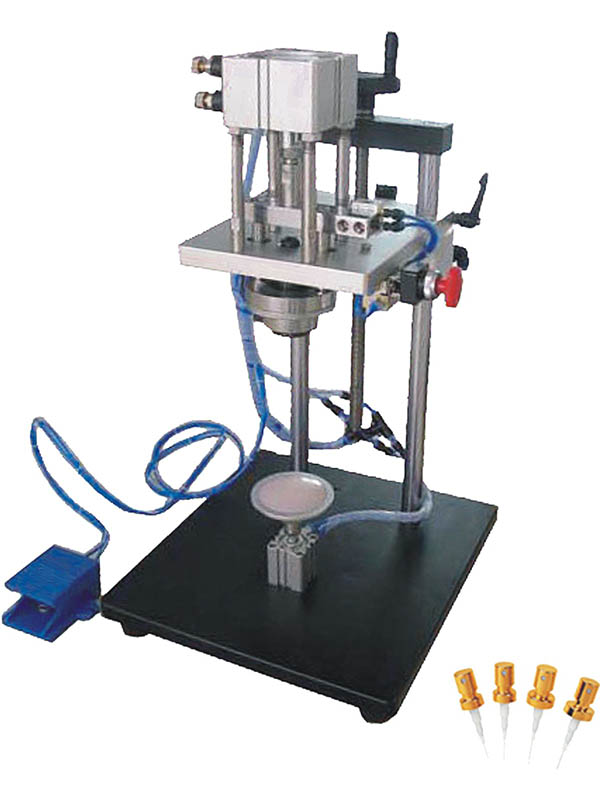

Perfume Crimping Machine (Semi-auto)
Perfume Filling Machine
Perfume Paper Filter
Perfume Cartridge Filter
The product is made of high quality 304 stainless steel or 316L stainless steel. The pneumatic diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration. The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection, with convenient assembly, disassembly and cleaning.
Equipped with polypropylene microporous filtration film, it can be widely used in cosmetics industry, scientific research department, hospital and laboratory, etc. for clarification, bacteria removal and filtration of small amount of liquid, or micro chemical analysis, which is convenient and reliable.
