Aluminum foil composite material through electromagnetic induction heating sealing technology, is currently more advanced, popular non-contact sealing technology.Its made by the principle of electromagnetic induction sealing machine has increasingly become medicine, agricultural chemicals, oil, food, health food, beverage, cosmetic, chemical and other industries for plastic, glass and other non-metallic bottle of hermetic seal to the necessary equipment, high quality to promote products, enhance the quality of sealing performance, improve the purpose of the anti-theft security requirements.
According to the principle that metal objects generate huge eddy current and heat under the action of high-frequency electromagnetic field, the machine fuses the adhesive film of the lower layer of aluminum foil and fuses with bottle mouth through electromagnetic induction to achieve continuous and rapid non-contact sealing.
Main Features
The control lever can adjust the height of the sealing head for more convenient operation.

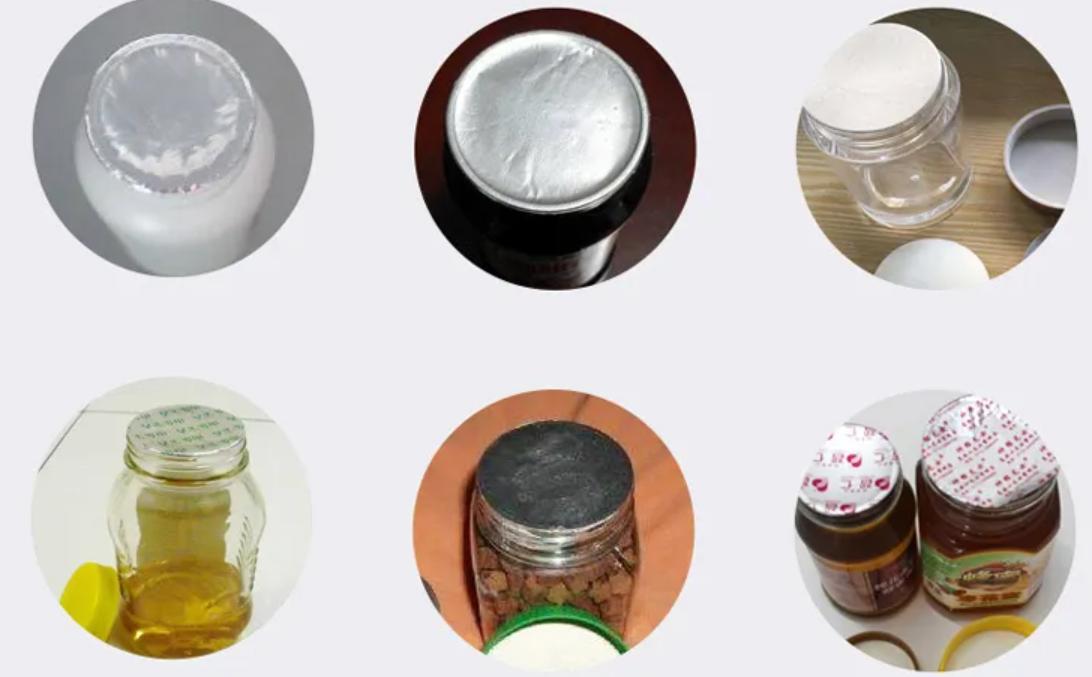

Seal the mouth by fusing aluminum foil and bottle mouth through instant heating.
The motor adopts high-quality components and has passed CE certification.
Speed knob to adjust the transmission speed of the conveyor belt according to the actual operation status.
Technical Advantages
Sealing range 20-130mm can adjust freely, ensuring ideal sealing quality and efficiency.
Automatic failure protection: conveyor stops automatically to isolate unsealed products.
Conveyor belt uses electronic stepless speed regulation for real-time voltage/current synchronization.
Electric height adjustment for the sensor head, accommodating objects 40mm to 400mm high.
Product Specifications
Name
Sealing machine for aluminum foil cup
Product Material
304 Stainless Steel
Power Supply
220V / 2.2kW
Capacity
20-50 bottles per minute
Type of Cooling
Forced air cooling
Weight
30kgs
Machine Size
900 x 450 x 500mm
Characteristic
Stable and efficient performance
Frequently Asked Questions
How does the induction sealing process work?
The machine utilizes high-frequency electromagnetic fields to generate eddy currents in the aluminum foil. This heat instantly fuses the foil's adhesive layer to the bottle mouth without direct contact.
What size of bottles can this machine seal?
The machine features a wide sealing range of 20mm to 130mm and can accommodate bottle heights ranging from 40mm to 400mm via electric adjustment.
Is the production speed adjustable?
Yes, the conveyor belt is equipped with electronic stepless speed regulation, allowing you to adjust the capacity between 20 and 50 bottles per minute based on your requirements.
What safety features does the machine have?
The machine includes an automatic safety stop. If a failure occurs during operation, the conveyor belt stops immediately to prevent unsealed products from passing through.
What material is the machine made of?
The main body of the machine is constructed from high-quality 304 stainless steel, ensuring durability and compliance with industrial standards.
Does the machine require water cooling?
No, this model uses a forced air cooling system, which makes it more compact (30kg) and easier to maintain compared to water-cooled units.
