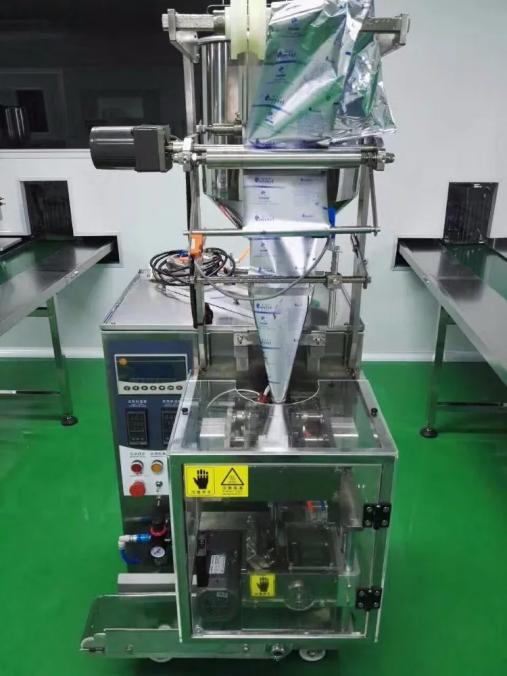

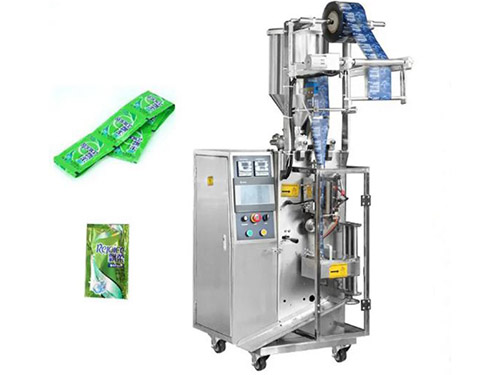

Sachet packing machine widely used to pack milk, soybean milk, sauce, vinegar, yellow wine, all kind of drink with film. The whole process can be accomplished automatically, such as ultraviolet sterilization, bag figuration, date printing, quantitative filling, enveloping, cutting, counting, and so on. The temperature of heat-sealing is controlled automatically, the production is beauty and fastness, the machine adopts stainless steel shell, and the sanitation is guaranteed. it can with glasses cover, ribbon coder and UV sterilizer.
| Model | Y50 |
| Material | Shampoo/Conditioner/Cream/Lotion/Perfume/Hand sanitizer |
| Packing weight | 1-50 ML (CAN CUSTOMIZE) |
| Bag size | 90 * 120MM (CAN CUSTOMIZE) |
| Film width | 180MM (CAN CUSTOMIZE) |
| Bag type | 4 sides dots sealing or Other type (CAN CUSTOMIZE) |
| Material discharge way | Piston pump metering |
| Speed | 20-35 bags/min |
| Machine dimension | 850 * 1250 * 1500mm |
| Weight | 260KG |
| Power | 1.5KW |
| Material contact | Stainless steel 304 |
| Feature | Fully automatic film bag making, metering, filling, sealing, steel press code, cumulative output, finished product output and a series of work. |
| Suitable packing material | Composite bag, such as: OPP+PE/PET+PE/PET+AL+PE/NYLON+PE/PAPER+PE... |
PLC & Touch Screen: YISI
Temperature control: YUYAO
Relay: YUYAO
Power switch: Schneider
Proximity switch: RUIKE
Step motor: NACHUAN
Photoelectric sensor: JULONG
Air components: Airtac
Lab Series
01
Pneumatic control including metering and bag-making, simple operation, less wear parts, reduce parts replacement.
02
Equipment configuration is easy key control, man-machine interface, stable and convenient.
03
Material: the box adopts SUS201, the contact part of the material adopts 304 stainless steel.
04
Use photoelectric accurate positioning to retain the integrity of the pattern. Photoelectric abnormal alarm, automatic stop.
05
Intelligent temperature controller to control the transverse and longitudinal sealing body temperature.
06
Recommended automatic feeding to reduce air contact and oxidation, with automatic stop when full.
07
The equipment is equipped with casters for easy handling and moving.
Frequently Asked Questions
What types of products can be packed with this sachet machine?
The machine is highly versatile and widely used for packing liquids and pastes such as milk, soybean milk, sauces, vinegar, shampoo, creams, lotions, and hand sanitizers.
Is the bag size and filling volume customizable?
Yes, the filling volume can be customized within 1-50 ML, and the bag size and film width are also adjustable according to your specific production requirements.
What materials are used for the machine's construction?
The machine shell is made of stainless steel (SUS201), and all parts that come into direct contact with the material are made of high-quality 304 stainless steel to ensure sanitation and durability.
Does the machine support automatic date printing?
Yes, the machine is fully automatic and includes functions for bag figuration, quantitative filling, heat-sealing, cutting, counting, and date printing (steel press code).
What is the production speed of the Y50 model?
The standard production speed is between 20 to 35 bags per minute, depending on the material viscosity and the bag size.
Does the machine have a sterilization feature?
Yes, it is equipped with ultraviolet (UV) sterilization to ensure the packaging process meets strict hygiene standards for food and cosmetic products.
