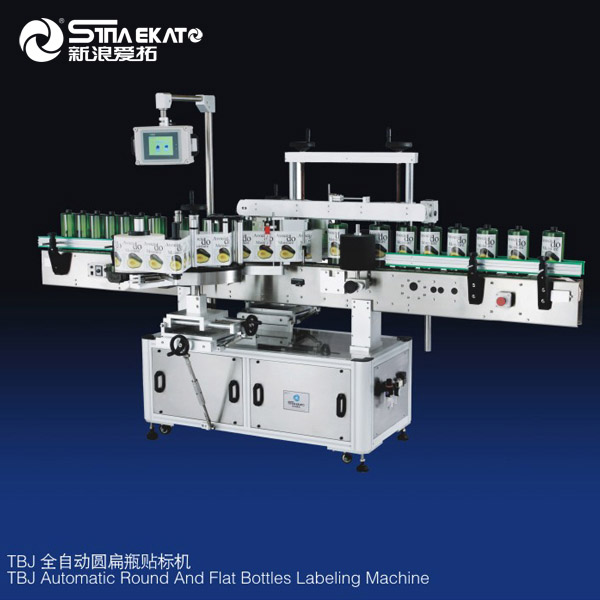

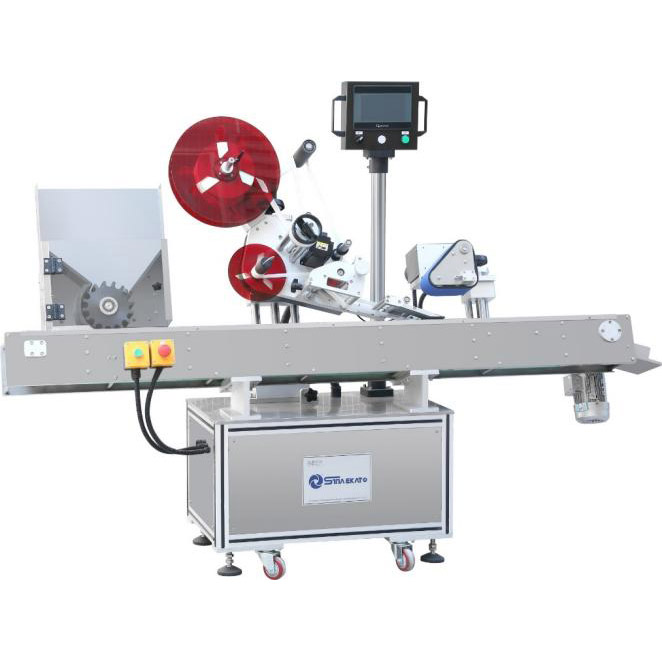

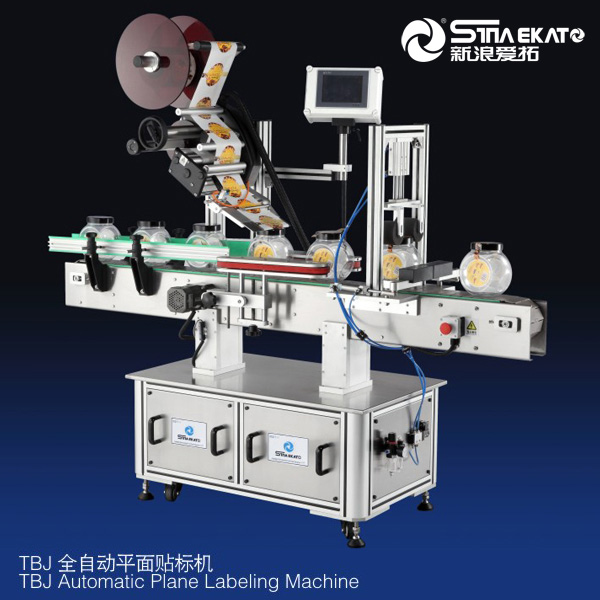

Discount TBJ Round and Flat Bottle Labeling Machine/Top Cover Labeling Machine (Full-auto & Semi-auto Optional) Manufacturer, Supplier

Product Description

Technical Specifications
Power supplyAC220V 50 Hz 1200W
Speed of labeling30m/min (related to label size)
Labeling accuracy±1mm
Label the maximum diameter350 mm
Roler diameter76.2mm
Maximum width of label (height)200mm
Diameter20 ~ 100 mm
Conveying to ground height860mm
Machine dimension3000*1800*1500(mm)
Machine weightabout 520KG
Main Configuration Components
No Name Set Number Instruction Brand
1Servo motor & Driverset2750WTaiwan Taida
2PLCpiece2CPU212Germany Siemens
3Label electronic eyepiece2/Germany Leuze
4Touch screenpiece17 inchesTaiwan Weinview
5Check bottle electronic eyepiece1/Germany Leuz
6Inverterpiece1200WTaiwan Taida
10Bottle-split motorset225WGermany JSCC
15Ac adapterpiece1220VDelixi - China
Key Features & Advantages
⚙️
Microcomputer Control: Imported microcomputer control system for high reliability.
📱
Touch Interface: Super large touch screen, intuitive and easy to operate.
Servo Accuracy: Servo motor adopted to enhance precision even at high speeds.
💾
Memory Storage: Over 100 groups of labeling parameter memories for fast switching.
🛡️
GMP Compliance: High class stainless steel and anodized aluminum alloy (anti-rust).
Detailed View

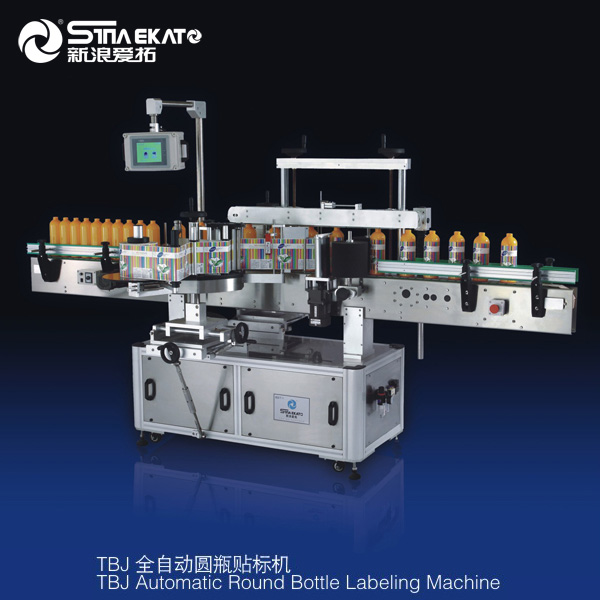

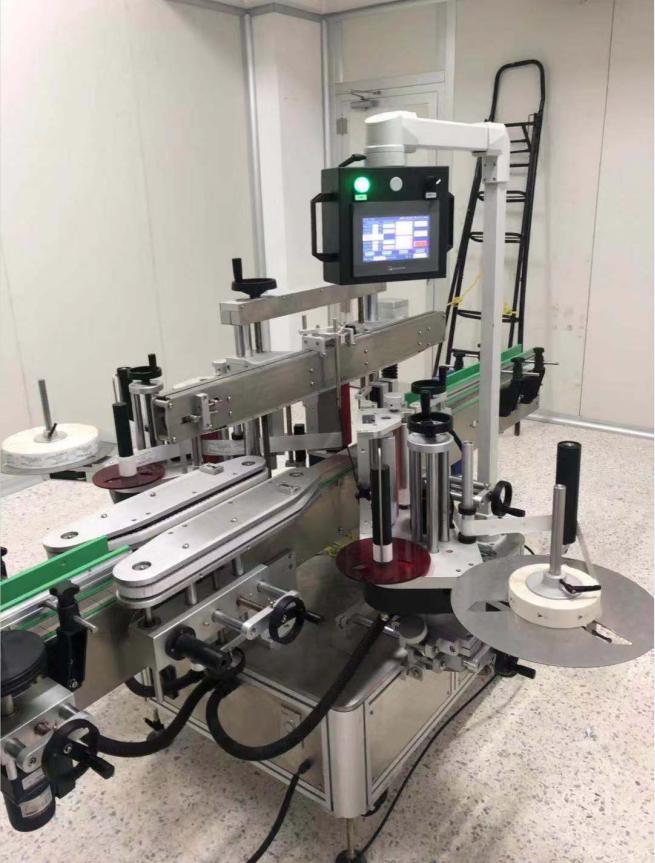

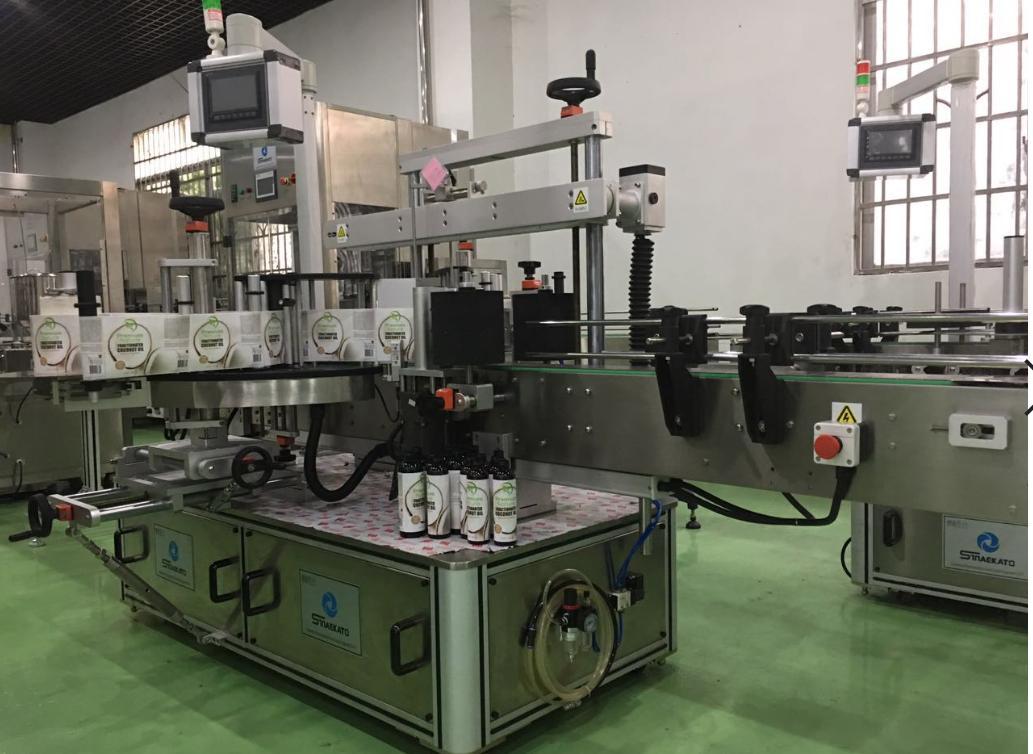

This automatic labeling machine is suitable for round bottles of different sizes and materials. It is widely used in round and conical bottles in food, cosmetics, electronics, daily necessities, medicine and other industries. Featuring automatic photoelectric tracking and identification of bottles, it ensures no labeling occurs without objects present.

Using well-known brand components and high-quality stainless steel, it offers reliable quality. The high resolution and large-size man-machine interface with PLC control makes operation intuitive and easy to use. Labeling machines are indispensable components of modern packaging. China's technical level in this field has greatly improved, offering positioning labeling for precise application.

Frequently Asked Questions
What types of bottles can this machine handle?
This automatic labeling machine is specifically designed for round and conical bottles of various sizes and materials across different industries.
How accurate is the labeling process?
The machine achieves a high labeling accuracy of ±1mm, thanks to the integrated servo motor and high-quality photoelectric sensors.
Is the machine compliant with industrial hygiene standards?
Yes, the entire machine is constructed from high-class stainless steel and aluminum alloy with anodizing treatment, fully conforming to GMP requirements.
Can I save settings for different products?
Yes, the system can store more than 100 groups of labeling parameters, allowing for fast sample changing and production efficiency.
Does the machine support integration into a production line?
Absolutely. The production line can be connected according to customer needs, and additional feeding equipment can also be integrated.
What is the maximum label height the machine can apply?
The machine supports a maximum label width (height) of up to 200mm.
