High-Quality New-Semi-Automatic Vertical Gear Pump Filling Machine Supplier, Factory

Introducing our new Semi-Automatic Vertical Gear Pump Filling Machine, an advanced servo-driven filling solution designed to replace traditional piston-type filling systems. This versatile machine supports unlimited filling capacity and is universally compatible with water, lotion, and cream products, delivering exceptional performance across a wide range of industries.

Product Description

Ideal for cosmetics, food, pharmaceutical, and chemical raw material sectors, this filling machine efficiently handles all types of liquids, creams, emulsions, facial creams, ointments, essential oils, laundry detergent, shampoo, body wash, semi-fluids, honey, and various viscous materials. This servo gear pump filling machine redefines filling efficiency and convenience. Unlike traditional piston fillers, it eliminates complex disassembly for cleaning, reduces downtime, and ensures seamless production.

The servo-driven system enables precise, programmable filling with unlimited capacity, making it the perfect upgrade for businesses looking to streamline their filling processes across cosmetics, food, and pharmaceutical production lines. Semi-Automatic Vertical Gear Pump Filling Machine is widely used in the packaging line of shampoo, conditioner, body wash, skin care products, etc., suitable for plastic bottle containers of different specifications.

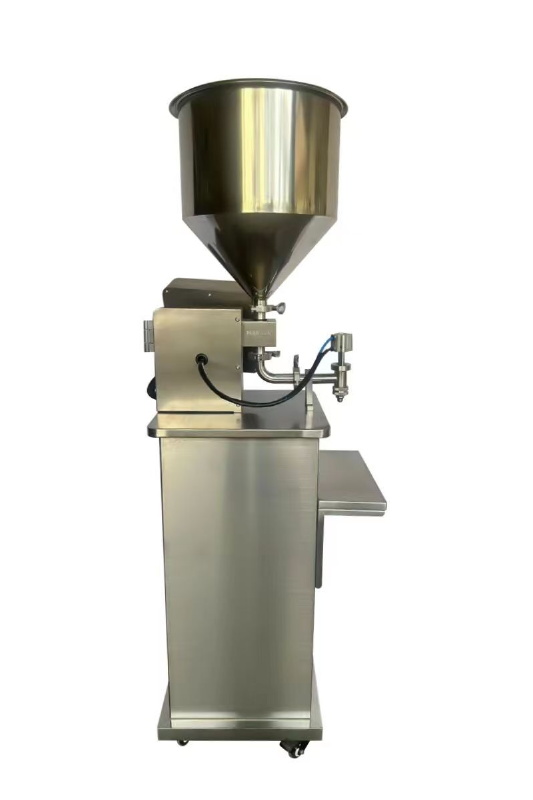

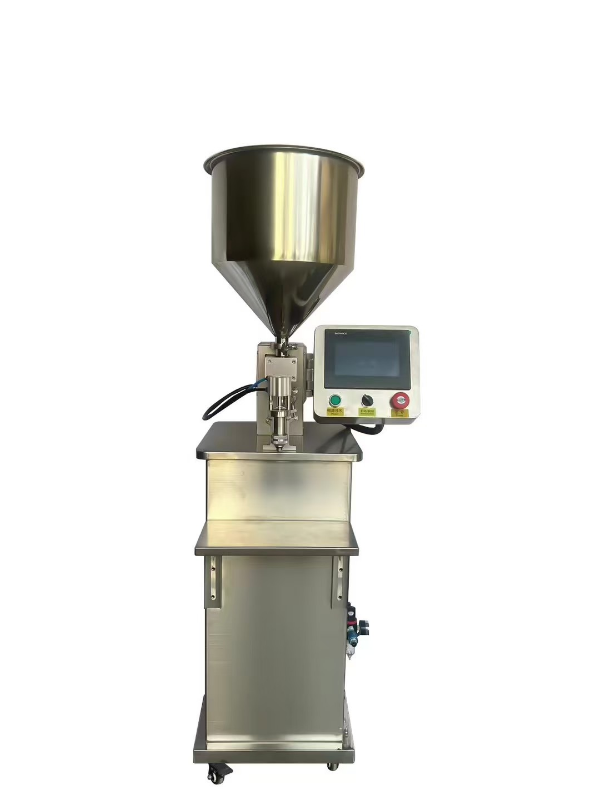

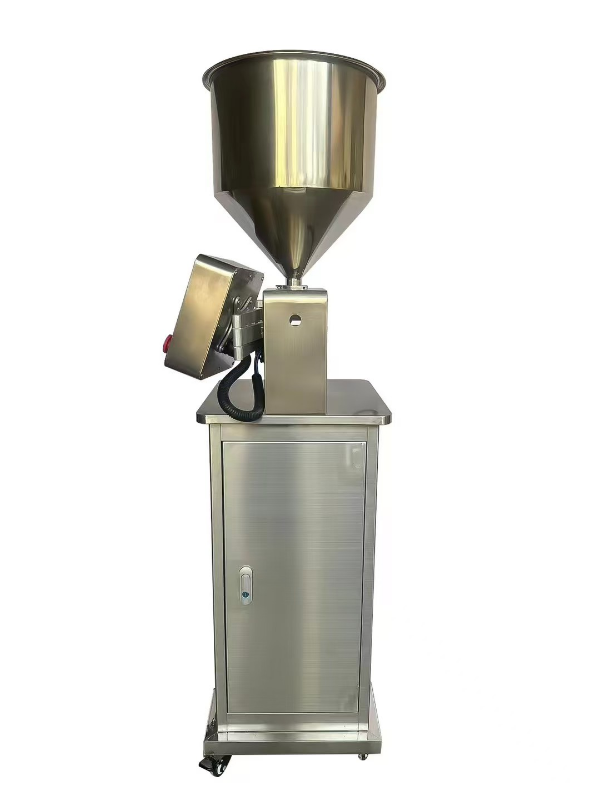

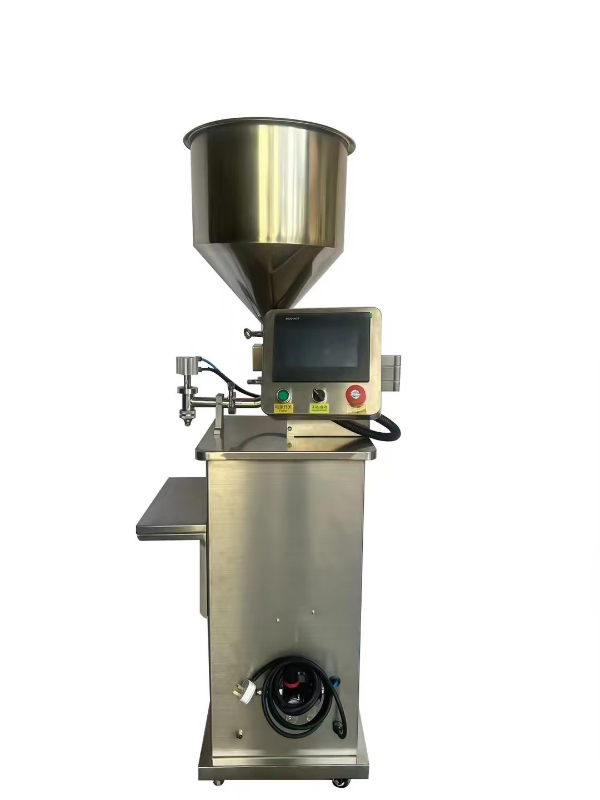

Semi-Automatic Vertical Gear Pump Filling Machine
Gear Pump Filling Machine Process
Parameter Details
Frame Material 304 stainless steel + high-grade anodized aluminum alloy, with 316L magnetic gear pump
Voltage & Power 220V, 50HZ, 850W
Filling Range 10ml - Unlimited (equipped with 60L/min high-flow pump)
Drive System Servo motor driven, with 2-stage speed setting; filling volume directly adjustable on touch screen
Operation Modes Foot pedal mode / continuous automatic mode
Filling Speed 20-40 bottles/min (subject to material, bottle type, and manual operation speed)
Filling Accuracy ±0.5g
Machine Dimensions 600*450*1570MM
Suitable Bottle Height 30mm - 300mm
Hair conditioner production application
Hair conditioner
Fast Filling Speed: Boost production efficiency with high-speed operation
Multi-purpose One Machine: Adapt to diverse products without complex reconfiguration
User-friendly "Fool-proof" Operation Interface: Easy to learn and operate, minimizing training time
High Quantitative Accuracy: Ensure consistent, precise filling every time
Small Footprint: Save valuable workshop space with a compact vertical design
Simple Cleaning & Maintenance: Easy disassembly for thorough cleaning, ideal for hygiene-sensitive industries
Wide Application Range: Suitable for liquids, semi-fluids, and high-viscosity materials
Dual Feeding Options: Supports self-priming operation and use with a material hopper
Shampoo
Shampoo filling demo 1
Shampoo filling demo 2
Shampoo filling demo 3
Shampoo filling demo 4
Shampoo filling demo 5
Shampoo filling demo 6
Feeding Table & Collection Table
Feeding Table and Collection Table layout
CE Certificate
Labeling Machine & Full-auto Filling Machine

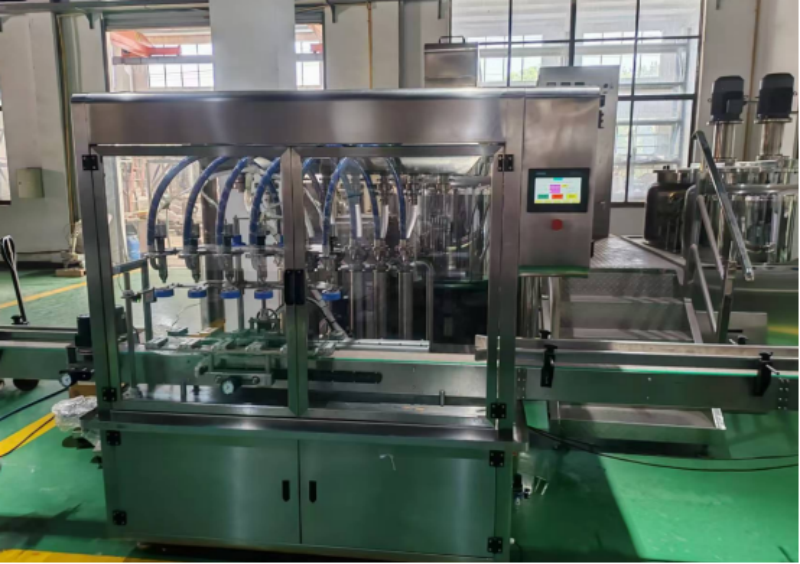

Full automatic filling and labeling system line
Frequently Asked Questions
Q: What materials can this gear pump filling machine handle?
A: This machine is highly versatile and handles all types of liquids, creams, emulsions, ointments, essential oils, laundry detergents, shampoos, body washes, honey, and various other viscous materials.
Q: How accurate is the servo-driven filling system?
A: Powered by a high-precision servo motor, the filling accuracy can reach up to ±0.5g. Filling volume parameter settings can be adjusted directly on the touch screen.
Q: Is the machine easy to clean between product switchovers?
A: Yes. Unlike traditional piston-driven fillers, the gear pump design eliminates complex disassembly. This design makes cleaning simple and quick, significantly reducing production downtime.
Q: What range of bottle sizes does this vertical filling machine support?
A: The machine is suitable for plastic and glass bottle containers with heights ranging from 30mm to 300mm, adapting easily to different specifications.
Q: What are the available operation modes?
A: It features dual operation modes: a manual foot pedal mode for batch control, and a continuous automatic mode for integrated production line setups.
Q: Does this machine support self-priming feeding?
A: Yes, the system supports dual feeding options. You can use it either with a self-priming operation directly from your storage tank or with a mounted material hopper.
