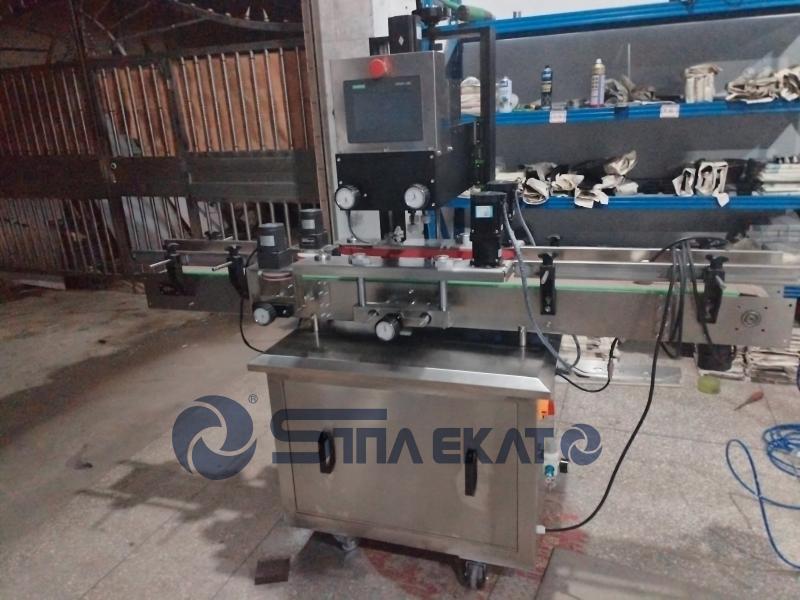

The automatic capping machine completes the capping operation efficiently through automatic conveyor belt, positioning, tightening and other steps. The parts in contact with the product are made of Swedish 316 stainless steel and processed by CNC machine tools to ensure that the surface roughness is less than 0.8. Automatic capping machine is widely used in the packaging line of shampoo, conditioner, body wash, skin care products, etc., suitable for plastic bottle containers of different specifications.
| No | Description | Details |
|---|---|---|
| 1 | Servo capping machine | - Servo motor screw cap (automatic torque control when the set torque is reached) - The bottle is driven by a stepper motor - The cylinder presses down on the cap - Optical fiber sensor location |
| 2 | Cap range | 30-120mm |
| 3 | Bottle height | 50-200mm |
| 4 | Capping speed | 0-80 bottles per minute |
| 5 | Work condition | Power: 220V 2KW air pressure: 4-6KG |
| 6 | Dimension | 2000*1000*1650mm |
| No | Name | Pcs | Original |
|---|---|---|---|
| 1 | Power driver | 1 | TECO China |
| 2 | 7 inch touch screen | 1 | TECO China |
| 3 | Pneumatic element set | 1 | China |
| 4 | Photoelectric switch | 1 | Omron Japan |
| 5 | Servo motor | 4 | TECO China |
| 6 | Bottle feeding and clamping motor | 2 | TECO China |
