Finished products can be discharged by valve or match a screw pump for efficient material handling.

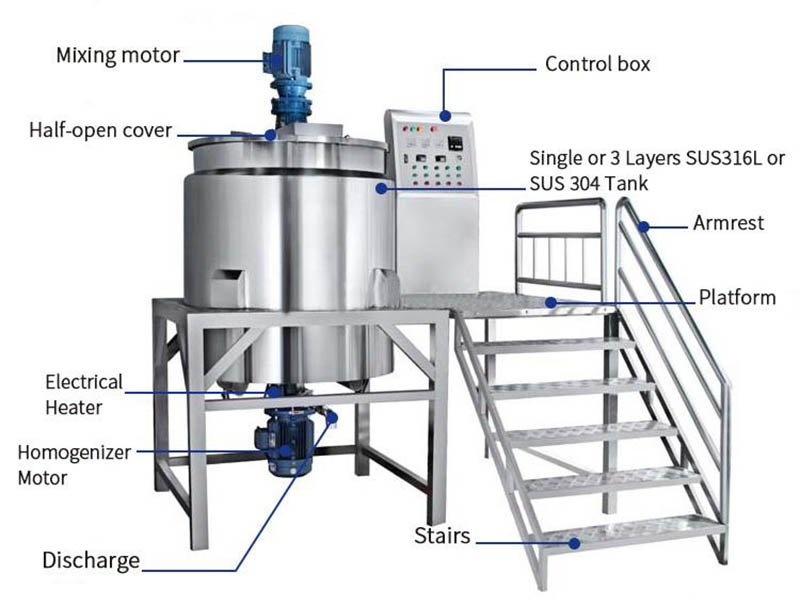

Equipped with double mixing systems: a top wall scraper mixer and a high shear bottom homogenizer for superior consistency.
Flexible heating systems: electric heating or steam heating optional. Movable design allows the mixing tank to handle small batch products.
High-speed dispenser functions to mix and disperse viscosity, solids, and liquids. Rapidly dissolves materials such as AES, AESA, and LSA, saving energy and shortening production cycles.
| Model | Capacity | Mixing power (kw) | Mixing speed (r/min) | Homogenizing power (kw) | Homogenizing speed (r/min) | Heating method |
|---|---|---|---|---|---|---|
| PME-200 | 200L | 0.75 | 0-65 | 2.2-4 | 3000 | Steam Heating Or Electric Heating |
| PME-300 | 300L | 0.75 | 0-65 | 2.2-4 | 3000 | |
| PME-500 | 500L | 2.2 | 0-65 | 5.5-7.5 | 3000 | |
| PME-1000 | 1000L | 4 | 0-65 | 7.5-11 | 3000 | |
| PME-2000 | 2000L | 5.5 | 0-53 | 11-15 | 3000 | |
| PME-3000 | 3000L | 7.5 | 0-53 | 18 | 3000 | |
| PME-5000 | 5000L | 11 | 0-42 | 22 | 3000 | |
| PME-10000 | 10000L | 15 | 0-42 | 30 | 3000 | |
| Note: The parameters for reference ONLY, all the machines can be customized accordingly. | ||||||
