This labeling host utilizes two top-tier technologies to ensure performance and precision:

• Double press roll label delivery: Significantly improves labeling accuracy. Before labeling, the label passes through an initiative pressing roll to eliminate wrinkles and ensure high-quality application to the very last label.
• Secondary rocker spring delivery clutch: Equipped with additional belt brakes to achieve high-speed constant tension delivery.

• Touch screen: WEINVIEW
• Top belt holder Pressing device: Stand-alone type, motor controlled.
• Synchronous chain correcting device: Motor controlled with frequency converter speed adjustment. Synchronous with the conveyor (suited for cone bottle correcting).
• Bottle separate device: Panasonic Motor with frequency control.

New design labeling head (2 Sets): Utilizing a patent concept with multi-dimensional adjustment and strong rigidity.

Specialized Fixing Devices:

• Cone bottle second fixing device: Dedicated to oval shape products, Japan servo motor control.
• Wrap around bottle device: Suitable for round bottle labeling and symmetrical labeling.

The system utilizes Siemens PLC for professional closed-loop control of YASKAWA ultra-small inertia 750W servo motors. With an advanced HMI system, it achieves speed control accuracy of 0.01 m/min. The speed is adjustable between 0.5-40 m/min to meet various production line requirements, achieving true high-speed labeling.

Performance Comparison:

• Uses ultra-small inertia servo motors instead of standard stepper motors.
• Siemens PLC control rather than general SCM.
• HMI features full digital control for superior precision.

*Note: Materials used include advanced 304 stainless steel and anodized aluminum. If brands are out of stock, equivalent quality brands will be substituted.

• Extremely fast speed: 3000-8000B/H for front and back labeling.
• High precision: ±1mm labeling accuracy.
• Eight-orientation labeling head adjustment for easy angle control.
• Suitable for complicated shapes: Oval, flat, cone, and round bottles.
• Industry Applications: Daily chemicals, petroleum, food, and pharmaceutical.

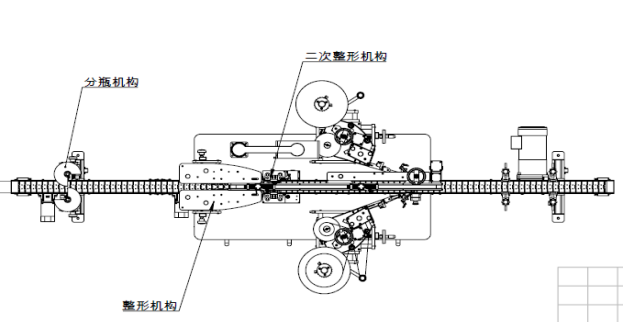

Front Label Direction

Back Label Direction
