Best Flat Cover Type Stainless Steel Storage Tank Suppliers, Factory

1) Raw material: Food graded - SUS316L or SUS304; 2) For all kinds of produts storage; 3) Support customized;

Send Inquiry

Product Description

Specs (L)	D(mm)	D1(mm)	H1(mm)	H2 (mm)	H3 (mm)	H(mm)	DN(mm)
200	700	800	400	800	235	1085	32
500	900	1000	640	1140	270	1460	40
1000	1100	1200	880	1480	270	1800	40
2000	1400	1500	1220	1970	280	2300	40
3000	1600	1700	1220	2120	280	2450	40
4000	1800	1900	1250	2250	280	2580	40
5000	1900	2000	1500	2550	320	2950	50

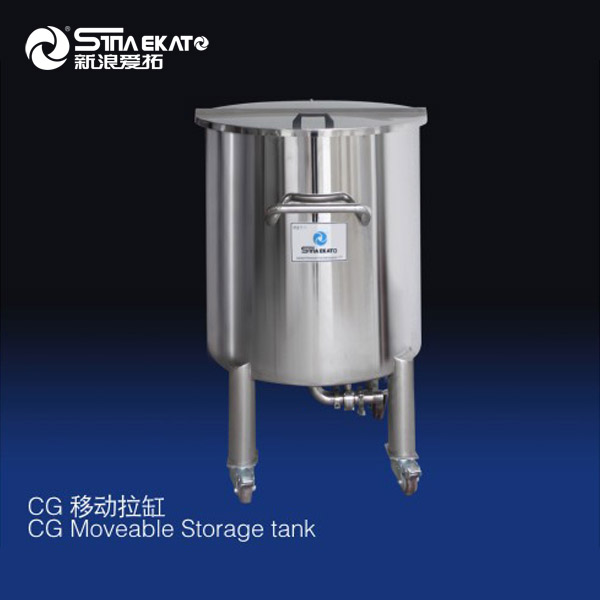

Flat Cover Type Stainless Steel Storage Tank

According to storage capacity, the storage tanks are classified into tanks of 100-15000L. For storage tanks with storage capacity more than 20000L, it is suggested to use outdoor storage. The storage tank is made of SUS316L or 304-2B stainless steel and has good heat preservation performance.

Standard Accessories:

Inlet and outlet
Manhole
Thermometer
Liquid level indicator
High and low level alarm
Fly and insect prevention spiracle
Aseptic sampling vent
CIP cleaning spraying head

Technical Specifications

Material: Sanitary stainless steel 304/316
Volume: 50L-20000L
Design Pressure: 0.1Mpa~1.0Mpa

Applicable range: Used as liquid storage tank, liquid composing tank, temporary storage tank and water storage tank etc. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

Structure & Configuration

Structure characteristics: Made of single-layer stainless steel structure. Materials are all sanitary stainless steel. Humanized structure design and easy to operate. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.

Quick open manhole - OPTIONAL
Various types of CIP cleaners
Adjustable triangular bracket
Dismountable materials input pipe
Ladder (Customer requirements)
Liquid level meter and controller
Thermometer
Eddy-proof board

Each machine is carefully made to ensure satisfaction. Our products are strictly monitored during the production process to provide you with the best quality. High production costs but competitive prices for long-term cooperation. You can have a variety of choices and the value of all types are equally reliable.

Frequently Asked Questions (FAQ)

1. What materials are used for the storage tanks?

The tanks are constructed using high-quality sanitary stainless steel, specifically SUS316L or 304-2B, ensuring excellent corrosion resistance and heat preservation.

2. What is the capacity range available for these tanks?

Standard capacities range from 50L to 15,000L. For requirements exceeding 20,000L, outdoor storage tank solutions are recommended.

3. Which industries are these stainless steel tanks suitable for?

These tanks are ideal for the food, dairy, beverage (fruit juice), pharmaceutical, chemical industry, and biological engineering sectors.

4. How is the sanitation of the tank maintained?

The interior walls feature an arc transition design to eliminate dead corners. Additionally, they are equipped with CIP (Clean-in-Place) cleaning spray heads and aseptic sampling vents.

5. Can the configuration of the tank be customized?

Yes, several components are optional or customizable according to customer requirements, including ladders, liquid level controllers, thermometers, and quick-open manholes.

6. What is the design pressure of these storage tanks?

The typical design pressure for these stainless steel storage tanks ranges between 0.1Mpa and 1.0Mpa.
