The product is suitable for automatic color code aligning, filling, sealing, date printing and end cutting of various plastic tubes and aluminum composite tubes. It is widely applied in daily chemical industry, medicine, food, etc.

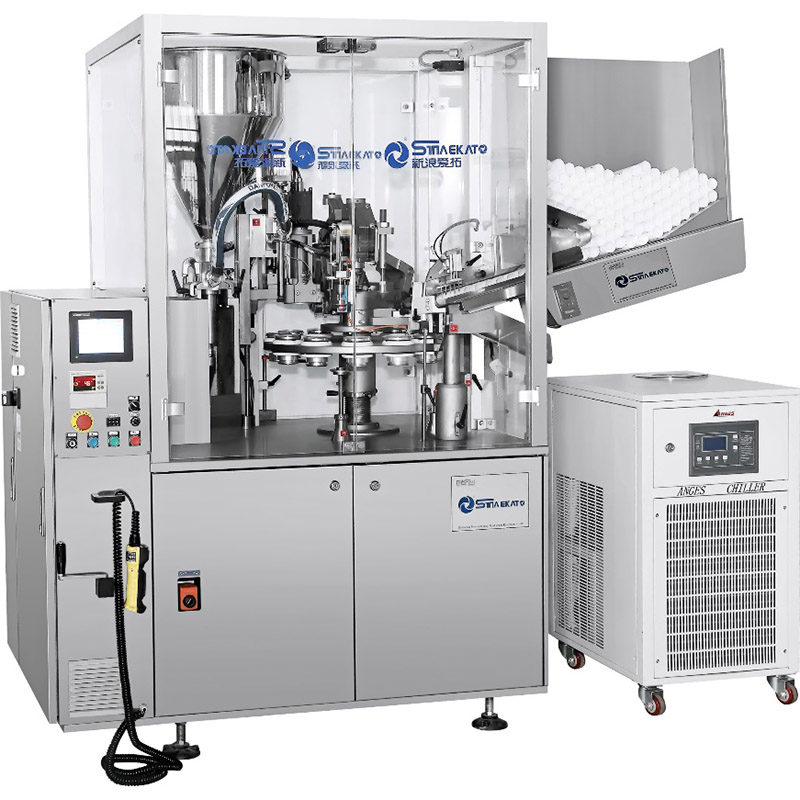

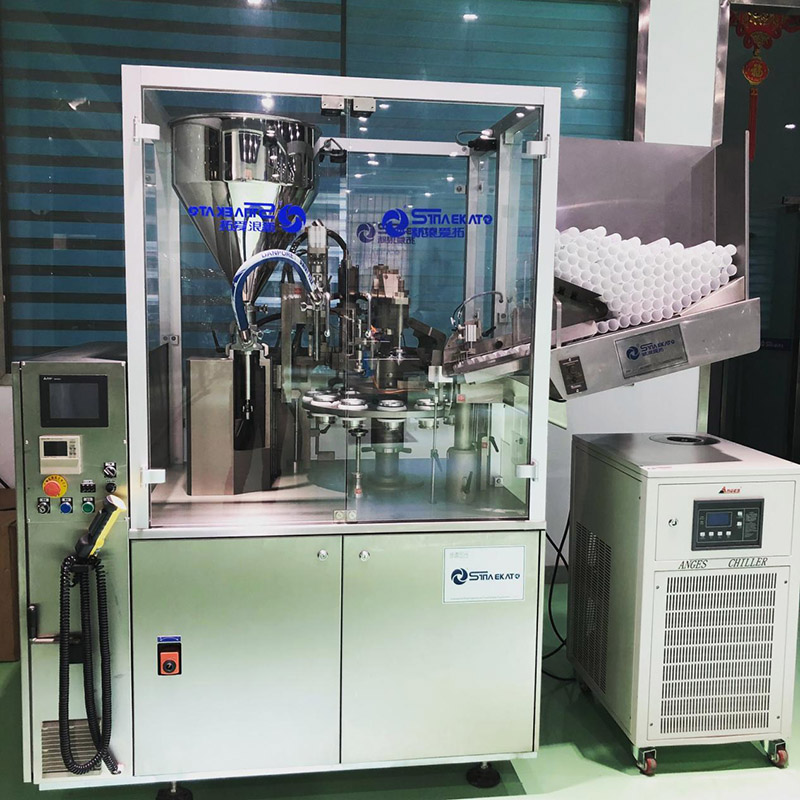

🛡️ Advantage on ST-60 Tube Filling Machine
Follow EU standard and "CE" support. This machine prioritizes user-friendly operation and worker safety, mirroring European engineering standards.
Safety & Control: Equipped with a torque clutch from Italy to protect against machine crashes and abnormal operations. Japan safety handles are used instead of simple buttons to mitigate operating risks.
Design & Maintenance: Features a pure mechanical design for easy maintenance and repair, enclosed in an omni-directional security door for maximum safety.
GMP Compliance: Filling nozzles are crafted from French materials with a unique cutting design ensuring zero leaking and no product pollution.
High Efficiency: Utilizes an Italian driver and Japanese Sanyo step system for precise color calibration. Guaranteed speed of 60 pcs/min with a qualified sealing rate above 99%.
🌍 Global Application
Our machines are trusted and used in the USA, JAPAN, DUBAI, PAKISTAN, and many other countries.

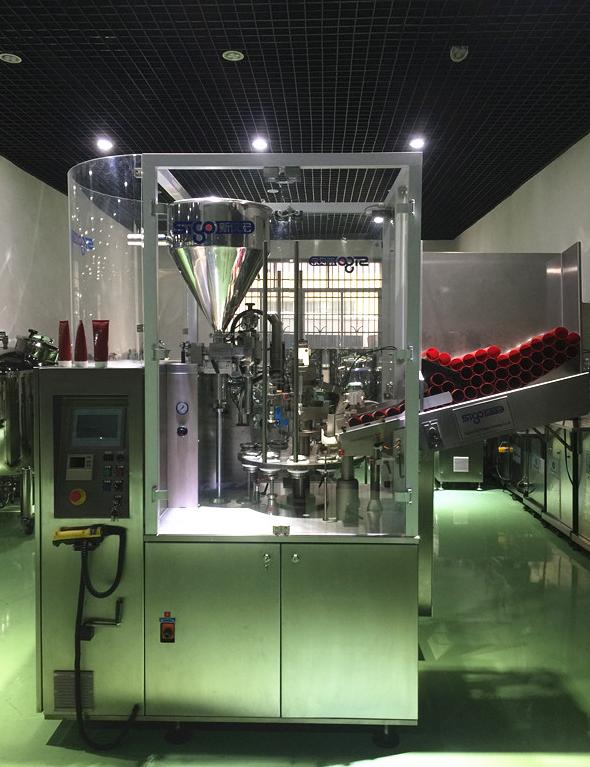

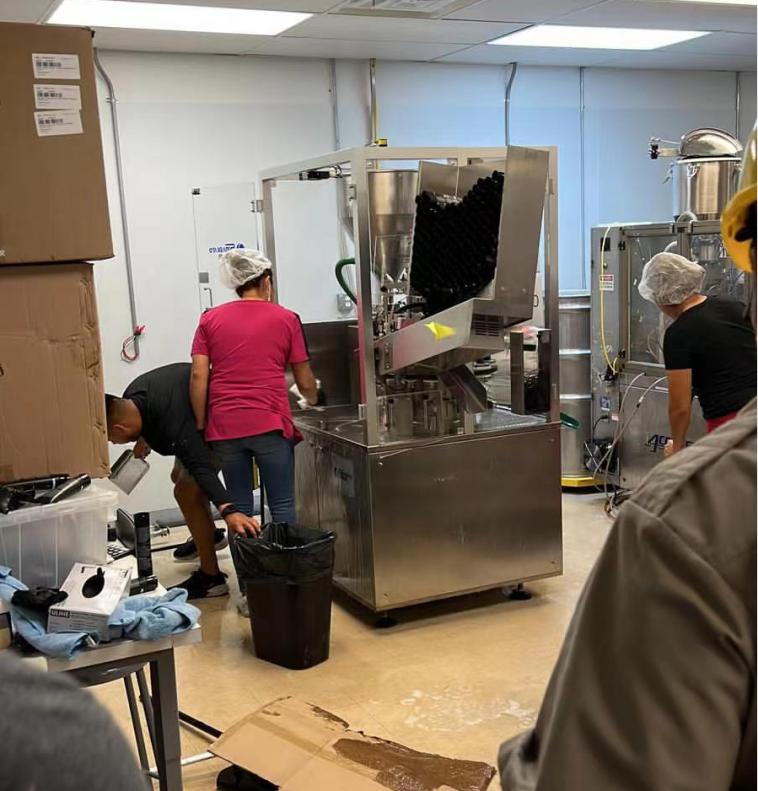

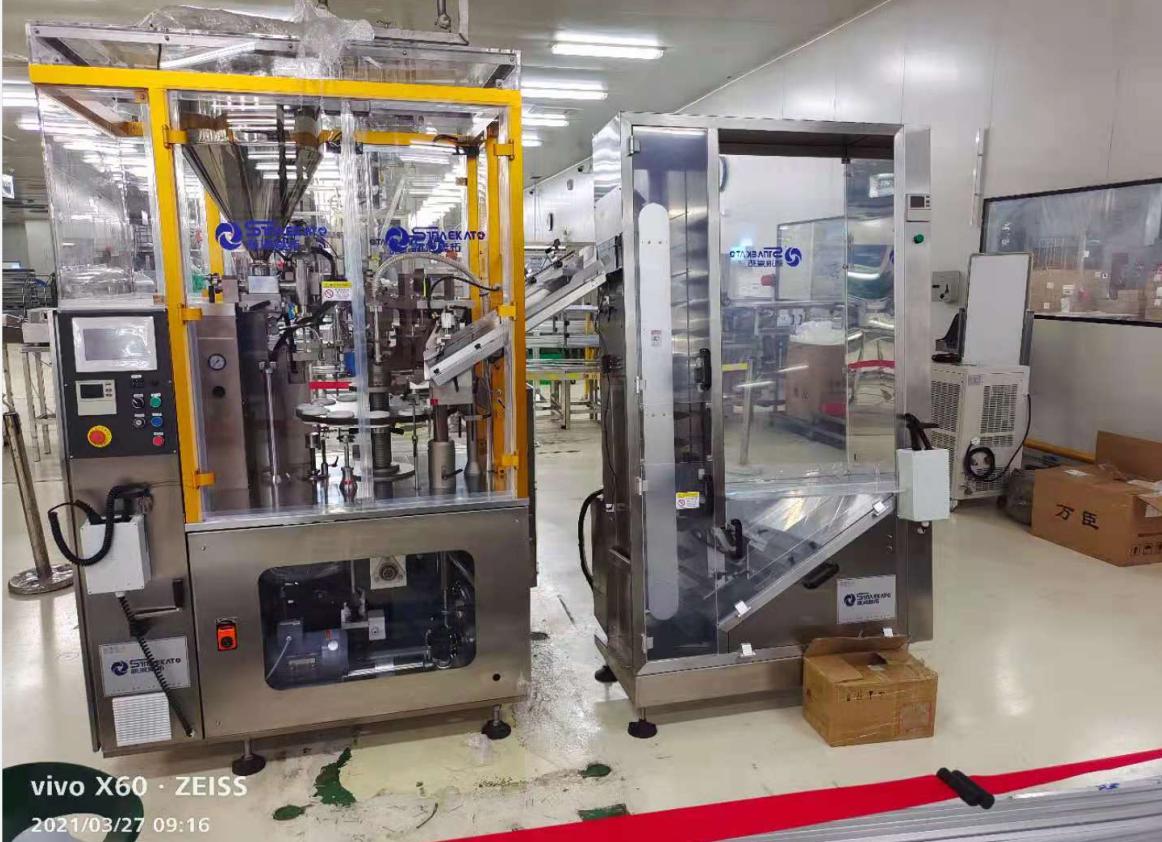

International Factory Usage Situations
⚙️ Technical Specifications
- Filling volume: 1-400ml
- Filling speed: ~60pcs/min
- Precision: ≤ ±1%
- Tube diameter: Φ16-50mm (Max 55mm)
- Tube length: Max 200mm-210mm
- Hopper capacity: 45L
- Air pressure: 0.5-0.7 MPa
- Voltage: 380V / 50Hz 3Phase
- Power Consumption: 5.5 KW
OUTPUT: 3600 tubes/hour (Depending on viscosity, diameter, and tube length).

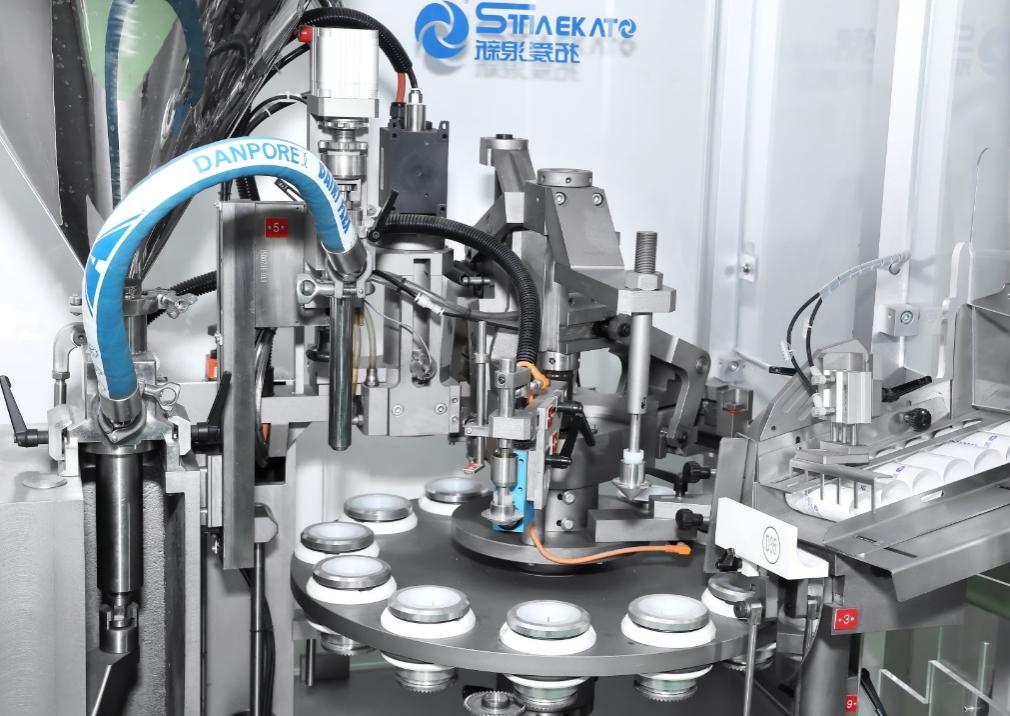

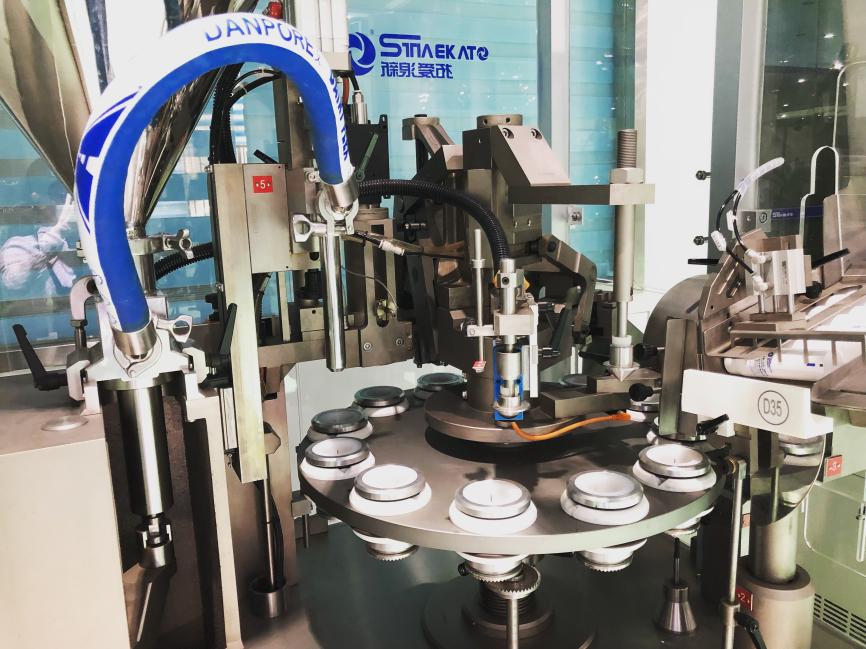

🔄 Automatic Operation Sequence
The machine is operated by a single person and automatically executes the following:
- Tube transfer into holder
- Automatic orientation

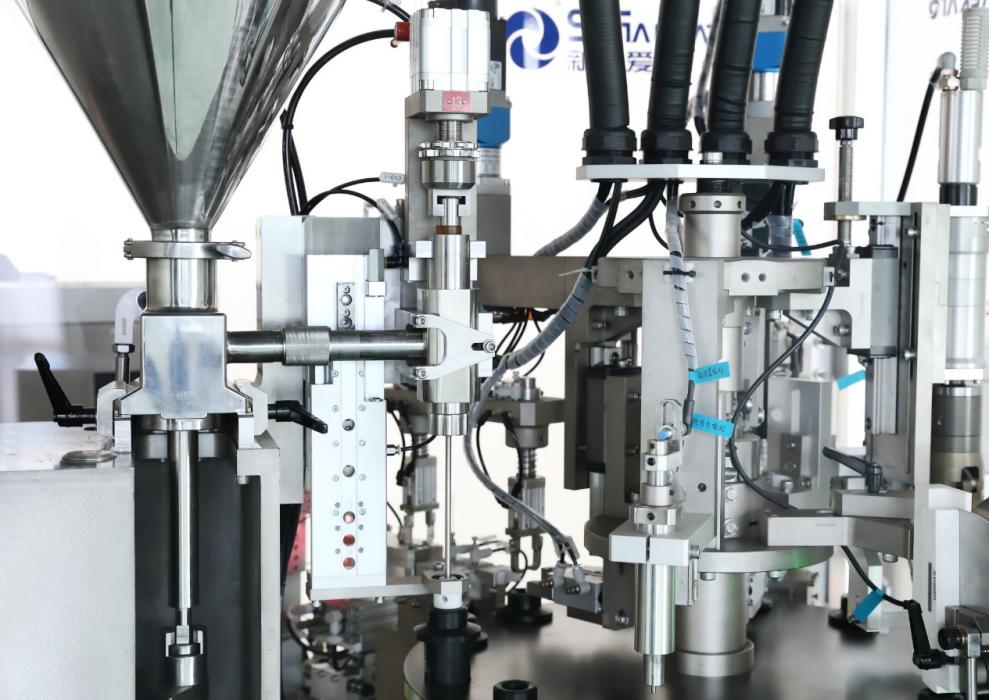

- Precision tube filling
- Automatic counting
- Sealing & Code marking
- Finished tube ejection
💎 High-Quality Components
| Part Name |
Origin |
Feature |
| Motor Reductor | Germany | Transmission |
| Cam indexers | Japan | Transmission |
| Torsion Limiter | Italy | Transmission |
| Adjust-speed motor | Japan | Discharge tube |
| Linear Slide Rail | Japan | Multifunctional pieces |
| Knuckle Bearing | Sweden | Multifunctional pieces |
| Copper Bush | France | Multifunctional pieces |
| Cursor Locator | Germany | Rotational Position |
| Pneumatic parts | Germany (Festo) | Multifunctional pieces |
| Electric Parts | France | Multifunctional pieces |
GZF-S Semi-auto Cream Lotion Toothpaste Hair-dye Gel Tube Filling and Sealing Machine
Cartoning Machine Integration
❓ Frequently Asked Questions
1. What materials are the filling nozzles made of?
The filling nozzles are made of high-quality French materials, featuring a unique cutting design to ensure no leaking or pollution, compliant with GMP standards.
2. Which types of tubes can this machine process?
The machine is suitable for plastic tubes, aluminum composite tubes, and laminated tubes used in various industries like food, medicine, and cosmetics.
3. What is the production capacity of the ST-60?
The ST-60 can produce approximately 60 pieces per minute, leading to an hourly output of about 3,600 tubes, depending on the product viscosity and tube size.
4. How does the machine ensure operator safety?
It features an Italian torque clutch to protect against abnormal operation, Japan safety handles for risk mitigation, and omni-directional security doors.
5. Is the filling volume adjustable?
Yes, the machine supports a filling volume range from 1ml up to 400ml with a precision of ≤ ±1%.
6. What international parts are used in the machine?
The machine uses world-class components including German pneumatic parts (Festo), Japanese Sanyo step systems, and Italian drivers to ensure stable and long-term performance.
