| No. | Material volume (t) | Unit disposing capacity(t/h) | Initial temperature (℃) | Final temperature (℃) | Temperature drop difference(℃) | Calculated cold load(kw) | Affluence factor (1.30) | Designed cooling capacity(kw) |
| 1 | 1.00 | 1.00 | 80.00 | 30.00 | 50.00 | 58.15 | 1.30 | 1.30 |
| 2 | 2.00 | 2.00 | 80.00 | 30.00 | 50.00 | 116.30 | 1.30 | 1.30 |
| 3 | 3.00 | 3.00 | 80.00 | 30.00 | 50.00 | 174.45 | 1.30 | 1.30 |
| 4 | 4.00 | 4.00 | 80.00 | 30.00 | 50.00 | 232.60 | 1.30 | 1.30 |
| 5 | 5.00 | 5.00 | 80.00 | 30.00 | 50.00 | 290.75 | 1.30 | 1.30 |

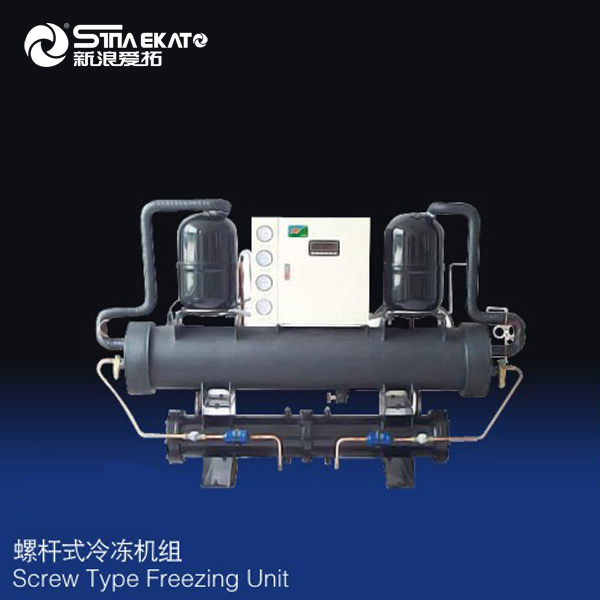

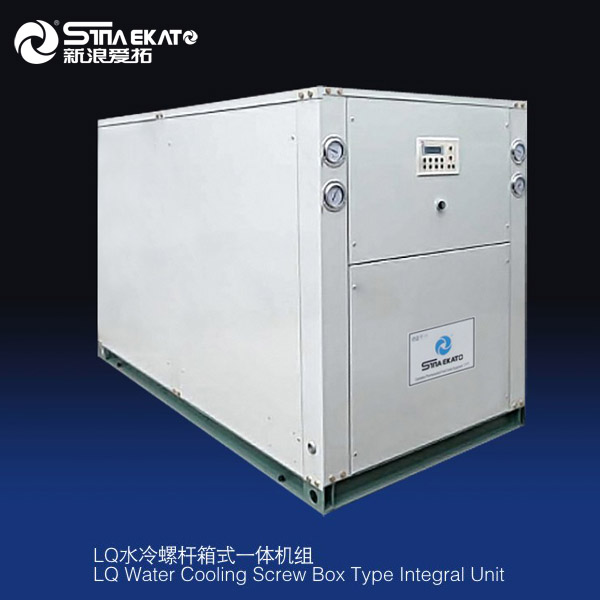

1. Branded Components: Adopted world-famous branded semi-hermetic compressors for long-term reliable and efficient running. Options include HANBELL or BITZER.
2. Capacity Control: Compressor runs with no stage limits to realize stageless continuous adjustment of cooling capacity between 25%-100% power load, maintaining stable outputs.
3. Advanced Heat Exchange: Shell and tube condenser adopts high-precision external threaded copper design; evaporator adopts inner threaded copper design for larger heat exchanging area.
4. Precision Control: Adopted the latest generation PLC controller. Accuracy of outlet chilled water temperature is within ±0.5 Celsius degrees.
5. Smart Features: Equipped with 24-hour timing function for automatic operation and RS485 communication for remote management.
6. Durable Design: High temperature and pressure resistant components instead of capillary copper tubes, preventing refrigerant leakage due to excessive pressure.
