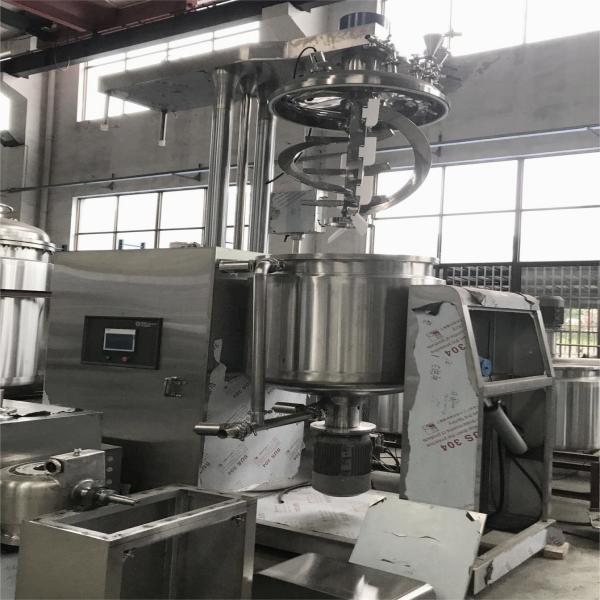

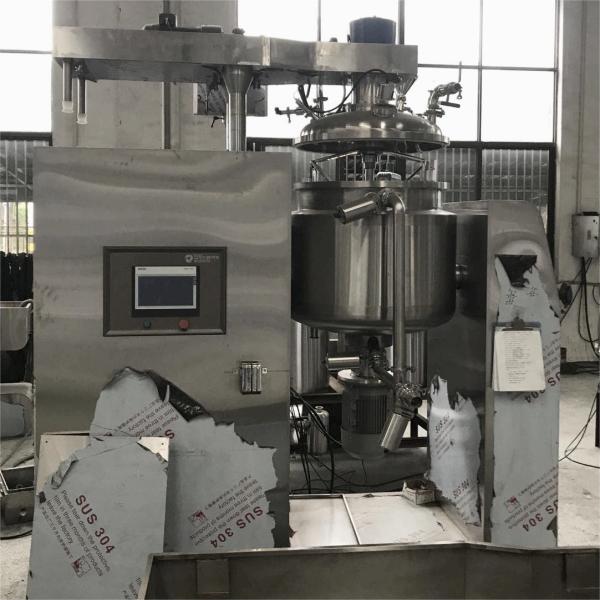

CE Certification Vacuum Homogenizer Emulsifying Machine Shampoo Liquid High Shear Emulsion Homogenizing Mixer for Making Cosmetics Cream Manufacturers, Factories

Emulsifying machine is a kind of equipment widely used in food, beverage, cosmetics, medicine and chemical industry. It can take insoluble liquids, such as water and oil, through the action of high-speed stirring and shearing, to form a uniform emulsion or mixture. Emulsifying machine has a very wide range of applications. In the food and beverage industry, it is used in the production of milk, yogurt, jams, sauces and other products. In the cosmetic and pharmaceutical industries, emulsifiers are used to prepare products such as lotions, ointments and injections. In the chemical industry, it is used in the production of coatings, paints and pigments. The emulsifying machine has the characteristics of high efficiency, stability, reliability and easy operation, which can meet the emulsifying and mixing needs of different industries.

Send Inquiry

Product Description

Technical Parameters

Model	Capacity	Homogenizer Motor		Stir Motor		Dimension			Total Power		Limit vacuum(Mpa)
Model	Capacity	KW	r/min	KW	r/min	Length(mm)	Width(mm)	Height(mm)	Steam heating	Electric heating	Limit vacuum(Mpa)
SME-AE5	5L	0.37	3000	0.18	63	1260	540	1600/1850	2	5	-0.09
SME-AE10	10L	0.75	3000	0.37	63	1300	580	1600/1950	3	6	-0.09
SME-AE50	50L	3	3000	1.1	63	2600	2250	1950/2700	9	18	-0.09
SME-AE100	100L	4	3000	1.5	63	2750	2380	2100/2950	13	32	-0.09
SME-AE200	200L	5.5	3000	2.2	63	2750	2750	2350/3350	15	45	-0.09
SME-AE300	300L	7.5	3000	2.2	63	2900	2850	2450/3500	18	49	-0.085
SME-AE500	500L	11	3000	4	63	3650	3300	2850/4000	24	63	-0.08
SME-AE1000	1000L	15	3000	5.5	63	4200	3650	3300/4800	30	90	-0.08
SME-AE2000	2000L	15	3000	7.5	63	4850	4300	3800/5400	40	_	-0.08
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.

Key Performance Features

Bottom Homogenizer & Inner Circulation

Delivers exceptional emulsification. The lower homogenizer can execute multiple homogenizations simultaneously for a highly uniform effect and stable product quality.

Helical Ribbon & Double Way Mixing

Achieves optimal consistency. The scraping wall mixing system pushes material upward from the bottom and pulls it down from the top to ensure full mixing.

Variable Speed Control

Adopts advanced frequency conversion speed regulation. Offers a wide range of flexible speed settings to adapt to different materials and technological demands.

Aseptic Processing

Equipped with a high-precision temperature and pressure control system. Supports sterile handling and meets hygienic requirements of food and pharmaceutical fields.

Flexible Cylinder Lifting Systems

Includes single-cylinder and double-cylinder lifting modes. Triple mixing systems utilize imported frequency converters to meet complex processing requirements.

High Shear Capacity

Emulsifying rotation speeds reach up to 4,200 rpm, delivering extreme shear fineness of 0.2 to 5 µm. Full vacuum defoaming guarantees aseptic quality.

Vacuum Material Sucking

Efficient suction system ideal for powder inputs, eliminating dust generation. The liftable and tilt-discharge emulsifying pot simplifies overall cleaning.

Premium Three-Layer Stainless Steel

Welded by imported three-layer stainless steel. Both tank body and pipeline feature mirror polishing to fully conform to strict GMP standards.

We can offer machines for you as following:
Reverse osmosis water purifier, vacuum homogenizing emulsifier, aseptic storage tank, drying sterilizer, ointment filling machine, conveying workbench, code printer, labeling machine, aluminum foil sealing machine, shrink film machine.

Product Portfolio & Manufacturing Lines

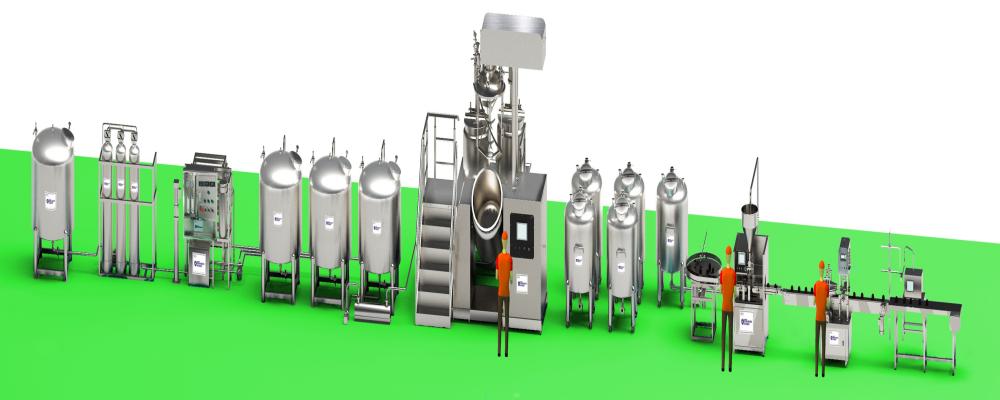

Fully Automatic Production Line

Reverse Osmosis Water Treatment

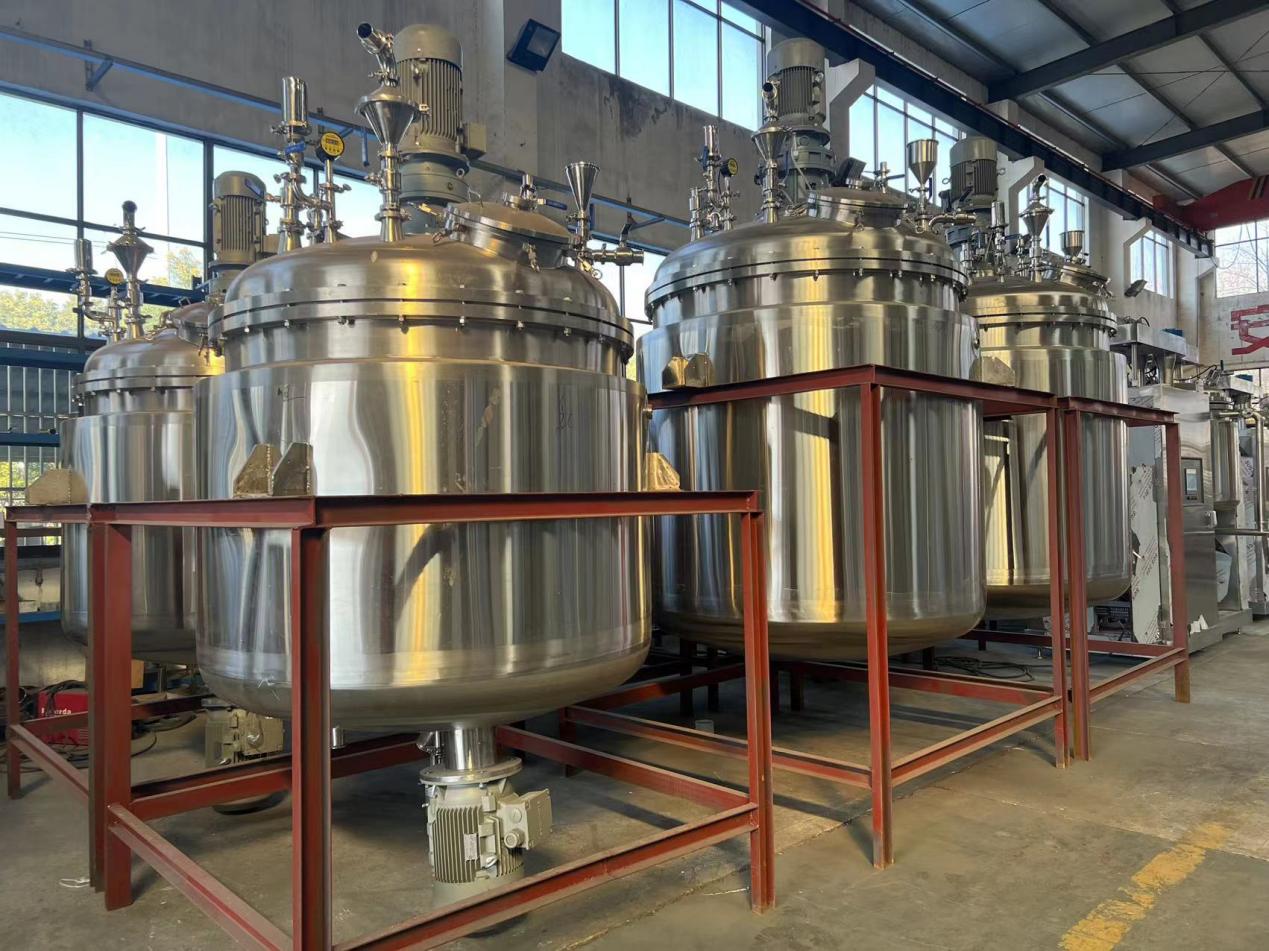

Aseptic Storage Tank

Semi-Automatic Filling Machine

Capping Machine (Full-Auto & Semi-Auto & Manual Type)

TBJ Round and Flat Bottle Labeling Machine / Top Cover Labeling Machine

Detailed Configuration System Overview

Helical Ribbon mixing & Double way Mixing System

Bottom Homogenizer & Inner circulation homogeneous System

Bottom material outlet

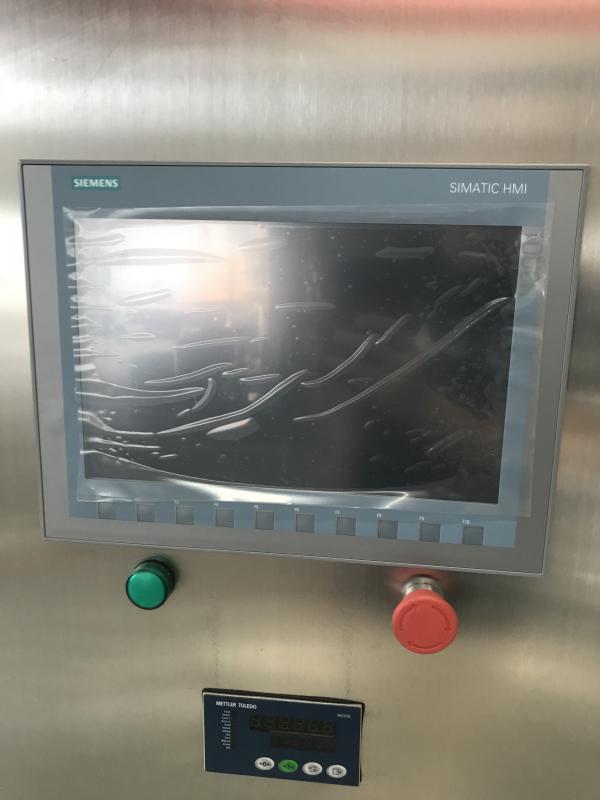

Siemens electric box control touch screen

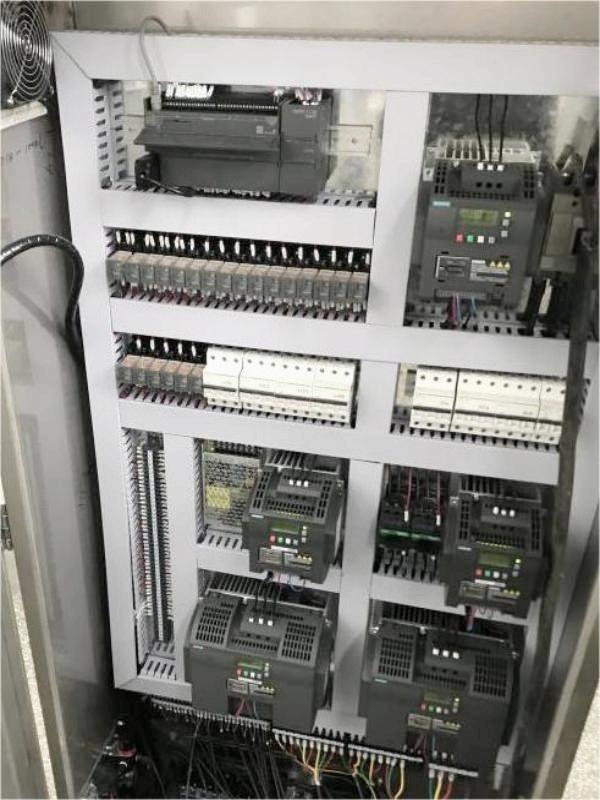

PLC controls the electric box

Vacuum Emulsification Control System

Product Applications

Daily Cosmetic
hair conditioner	facial mask	moisturizing lotion	suncream
skin care	shea butter	body lotion	sunscreen cream
cream	hair cream	cosmetic paste	BB Cream
lotion	face wash liquid	mascara	foundation
hair color	face cream	eye serum	hair gel
hair dye	lip balm	serum	lip gloss
emulsion	lipstick	highly viscous product	shampoo
cosmetic toner	hand cream	shaving cream	moisturizing cream
Food & Pharmaceutical
cheese	milk butter	ointment	ketchup
mustard	peanut butter	mayonnaise	wasabi
toothpaste	margarine	Salad dressing	sauce

Manufacturing Process

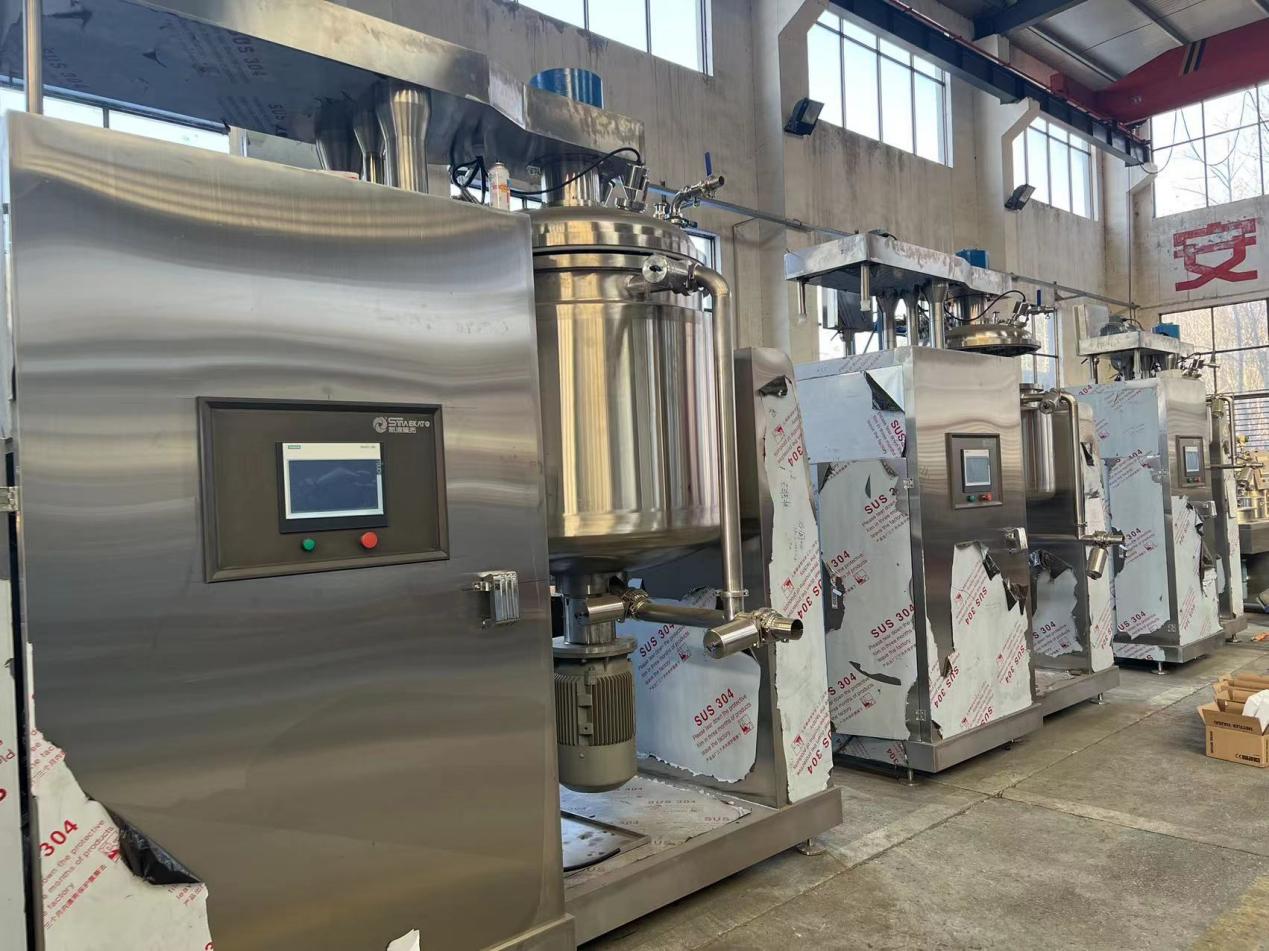

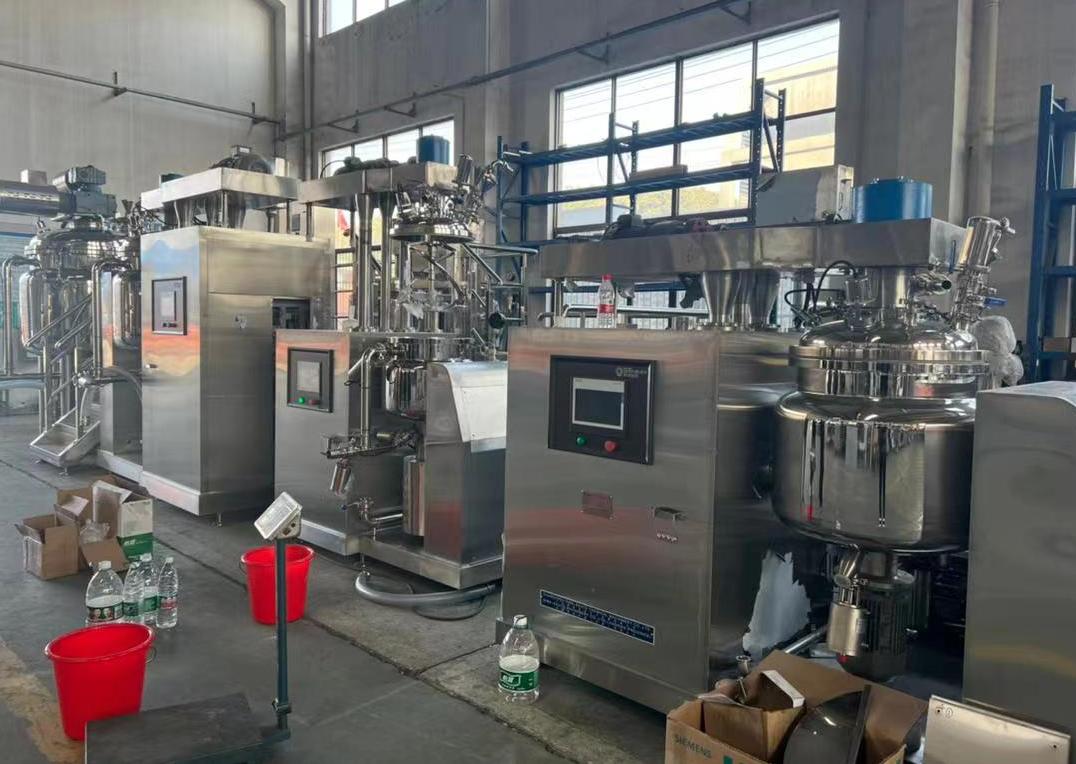

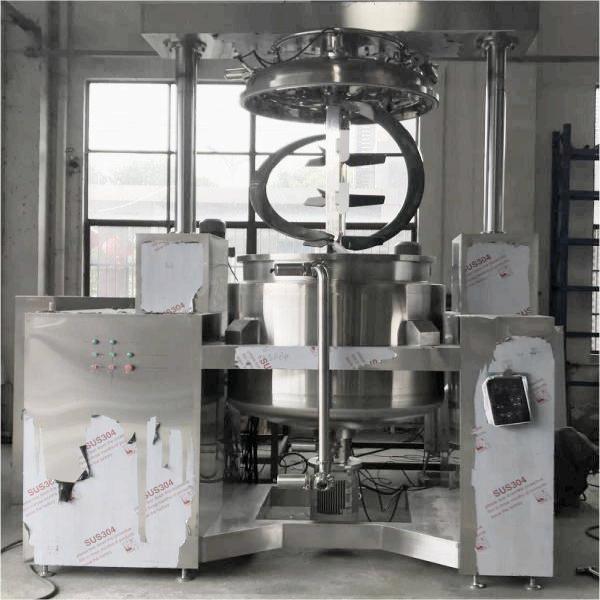

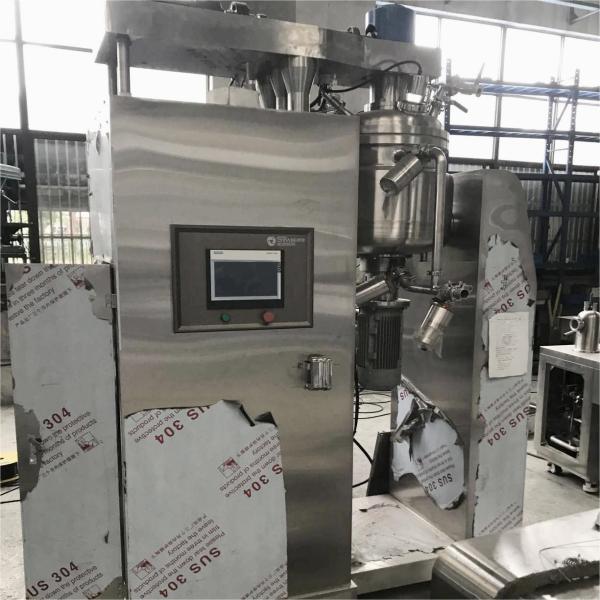

SME-AE vacuum homogenizer under manufacture

Frequently Asked Questions

What are the main advantages of the bottom homogenizer system?

The bottom homogenizer and inner circulation system perform multiple homogenizations at the same time. This leads to outstanding emulsifying results and guarantees highly uniform and stable final product quality.

Does the equipment satisfy GMP hygienic requirements?

Yes, absolutely. The pot body is welded using three-layer imported stainless steel, and both the tank and the pipe connections are mirror-polished, aligning completely with strict GMP standards.

What type of heating methods does this machinery support?

The systems can be designed with either steam heating or electric heating modes, allowing you to select the best technology to match your specific production requirements.

How does the vacuum system handle powders and avoid dust?

The vacuum material sucking system can draw materials directly into the pot. Especially when feeding dry powder ingredients, this process effectively prevents dust from dispersing into the workshop environment.

What is the rotational speed and shearing capability of the system?

The maximum emulsifying speed can reach up to 4,200 rpm, delivering a shearing fineness as precise as 0.2 to 5 µm. This high shear strength is perfect for making ultra-fine cosmetic emulsions.

What range of capacities is available?

We supply pilot-scale setups beginning at 5L and 10L, all the way up to heavy-duty industrial production capacities reaching 2000L.
