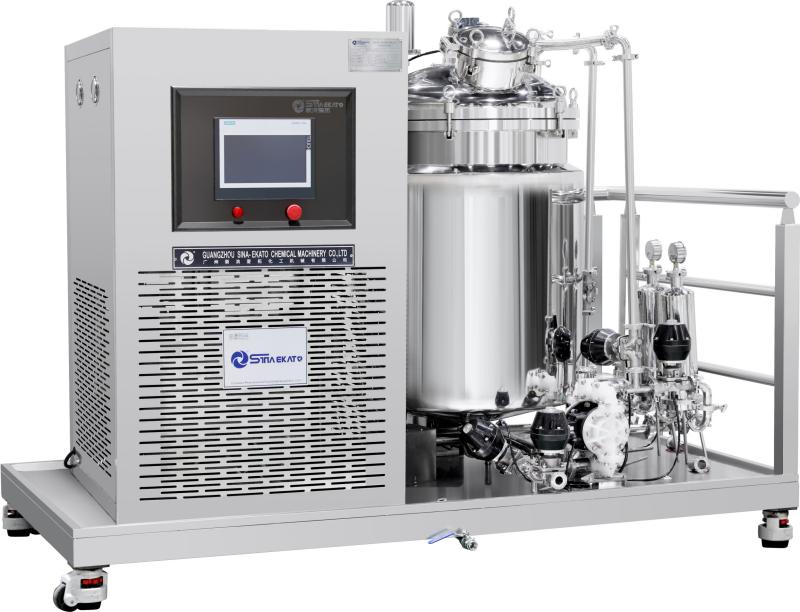

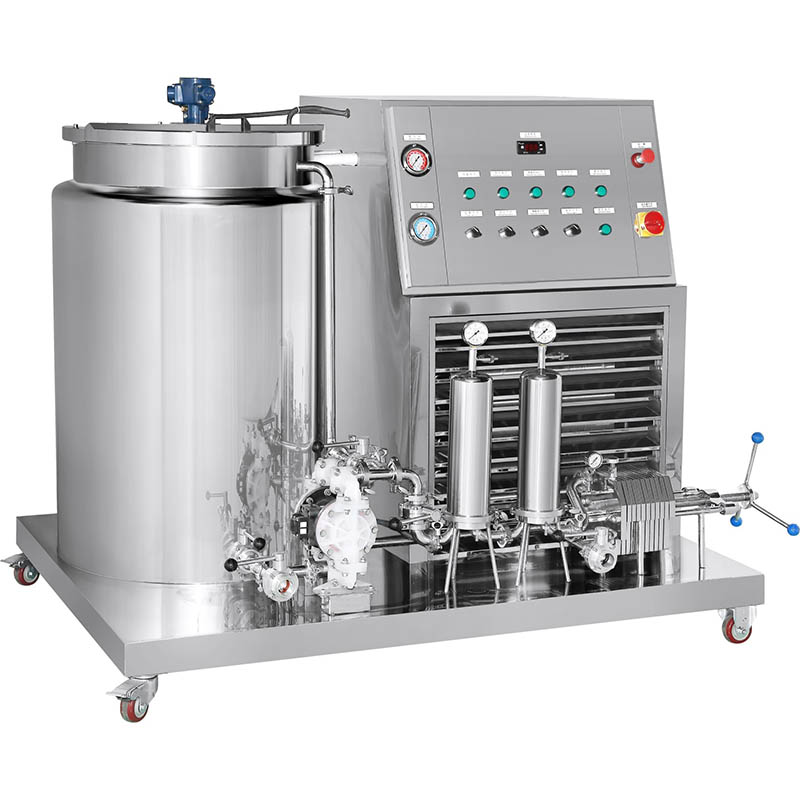

Perfume-making Machine Fragrance Chiller Filter Mixer applied on perfume, fragrance, parfume, hair spray, body spray..ect.
| Technical Parameter | |||||
|---|---|---|---|---|---|
| Model | 2P-100 | 3P-200 | 5P-300 | 5P-500 | 10P-1000 |
| Freezing power | 2P | 3P | 5P | 5P | 10P |
| Freezing capacity | 100L | 200L | 300L | 500L | 1000L |
| Filtration precision | 0.1μm | 0.1μm | 0.1μm | 0.1μm | 0.1μm |
| Refrigeration temperature | -5°C - -15°C | ||||
| Refrigeration liquid | R22 (can be other medium, according to customer choose) | ||||
| More size accept customized | |||||
Filtration System
Equipped with polypropylene microporous filtration film, Filtration accuracy reach to 0.2 μm.
Mixing Paddle and Chilling Coil
1: Material contact part: SUS316L.
Pneumatic Mixing Motor
1: Safety - Suitable for mixing the liquid with alcohol.
Control Components
1: Button control with emergency stop switch.
Pneumatic Pump
Double function: pump the raw material from storage to mixing tank, and pump finished product from mixing tank to storage.
Additional Equipment Options:

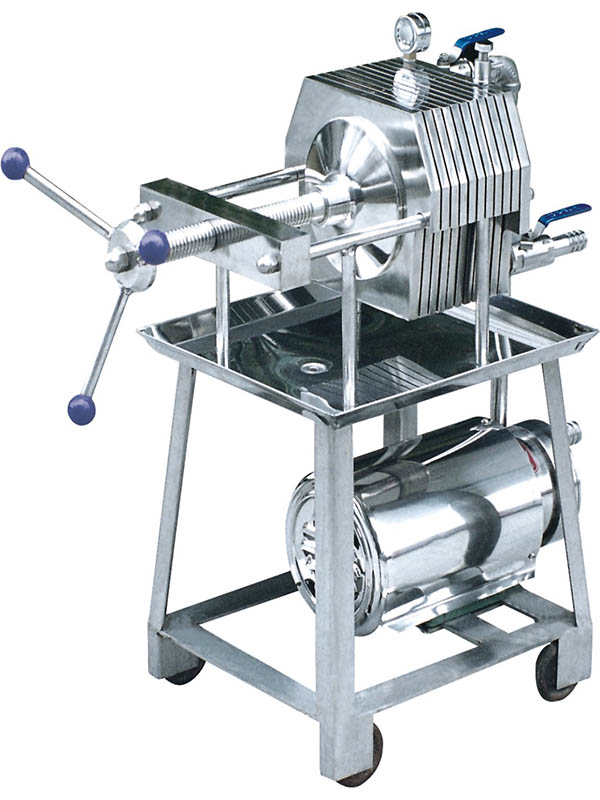

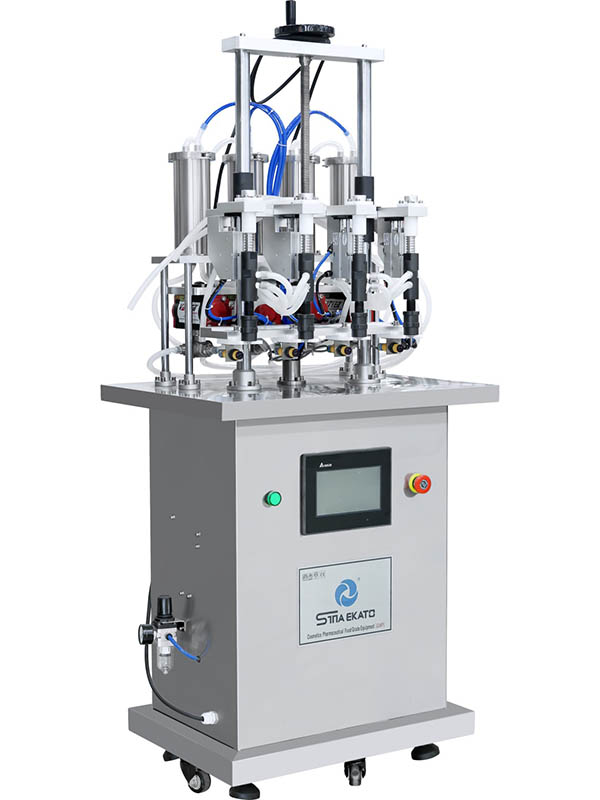

Perfume Crimping Machine (Semi-auto) | Perfume Filling Machine | Perfume Paper Filter | Perfume Cartridge Filter

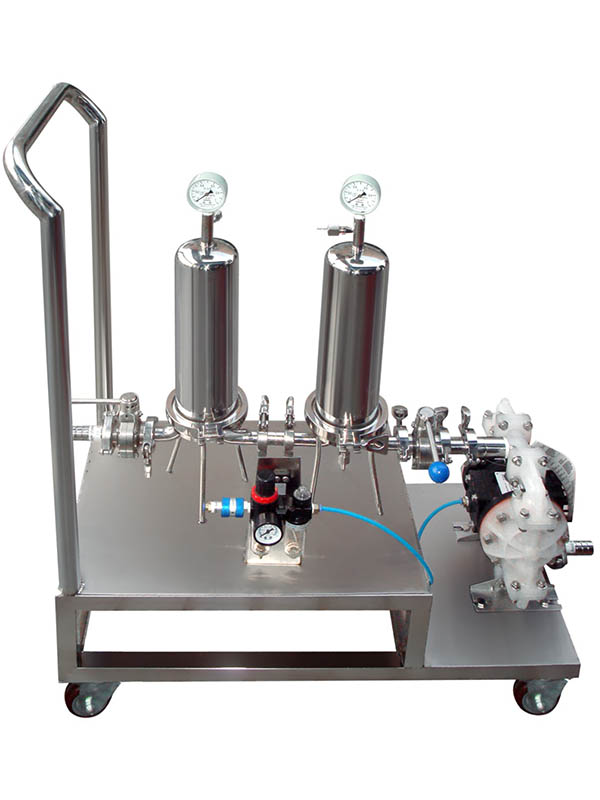

The product is made of high quality 304 stainless steel or 316L stainless steel. The pneumatic diaphragm is adopted for pressure source to carry out positive pressure filtration. The connecting pipes are sanitary polishing pipes with rapid installation type connection for convenient assembly, disassembly and cleaning.

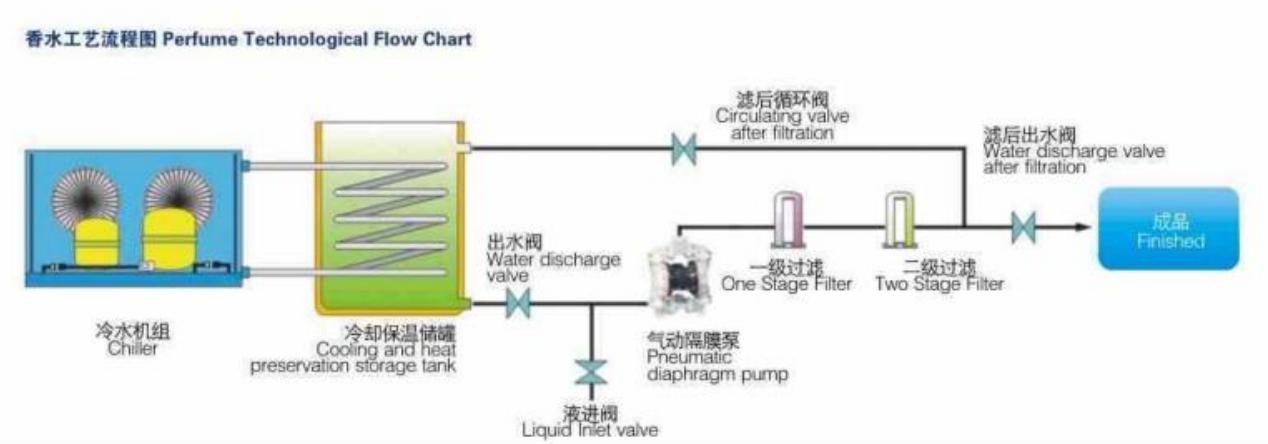

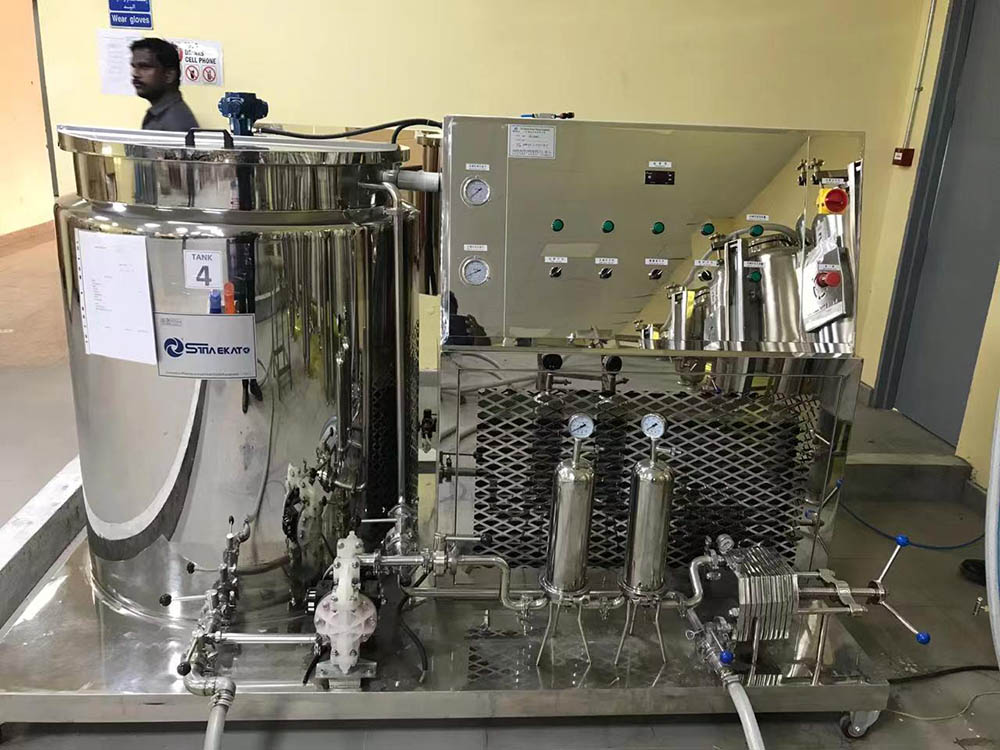

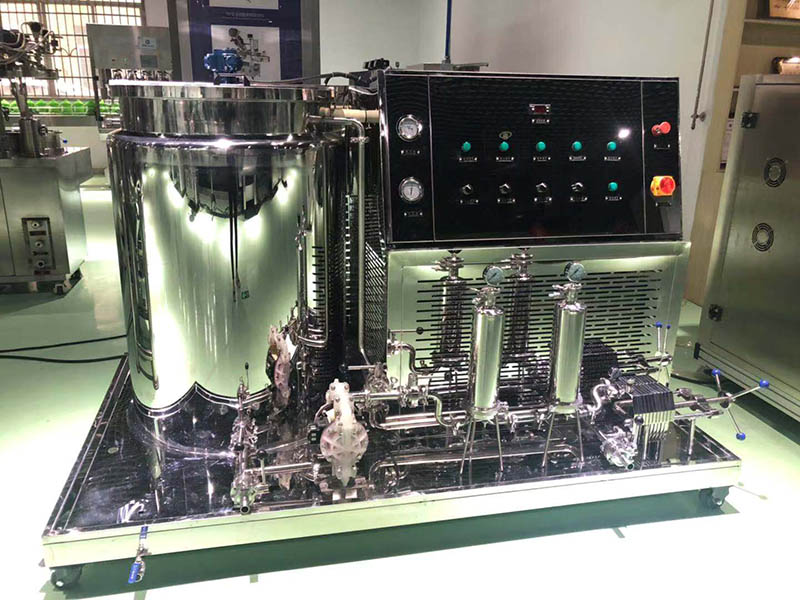

Integrated System Includes: Mixing tank for raw material + Chiller system for cooling perfume + Pump for circulation & discharge + 3 times filter process.
