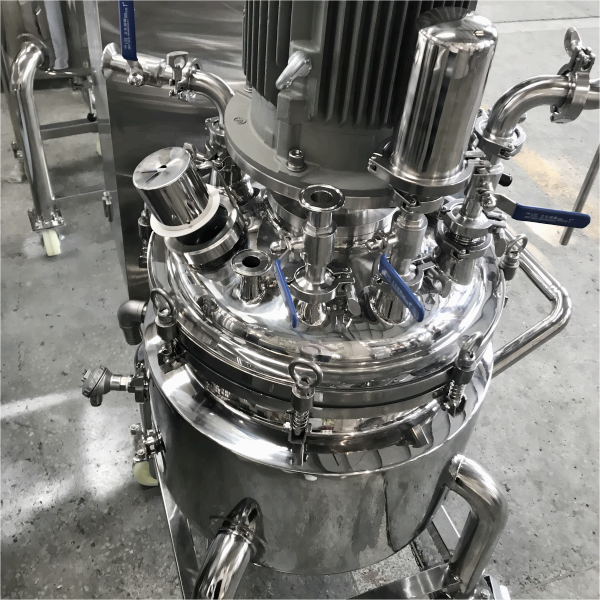

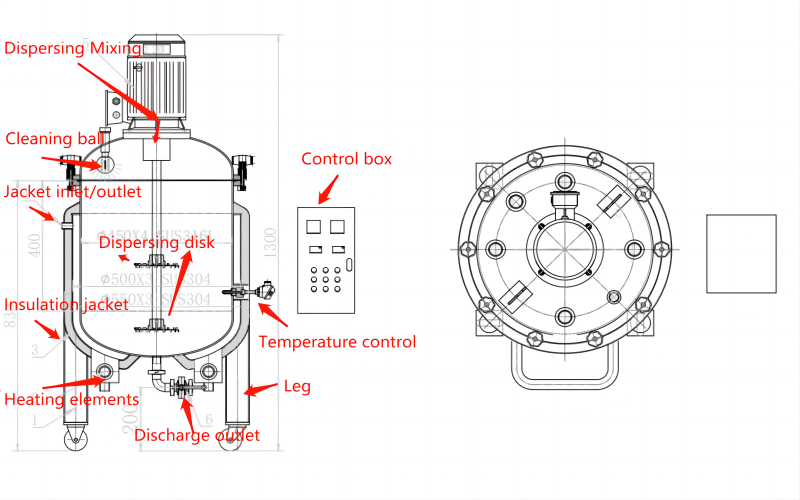

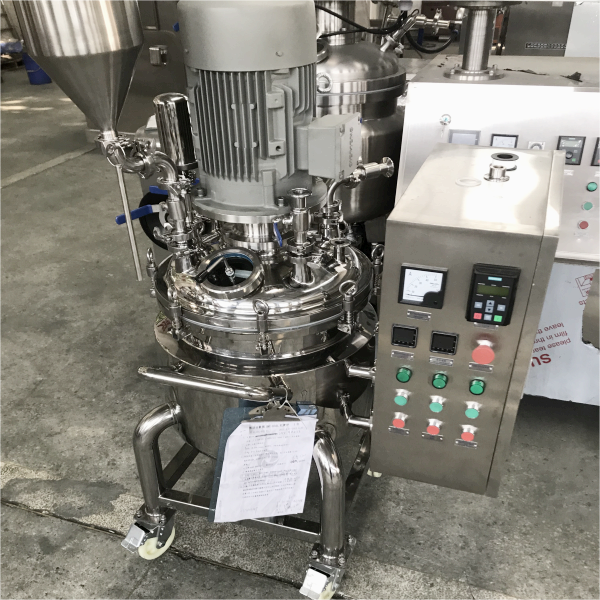

⚙️ Structure: The pot body features a three-layer stainless steel structure. The innermost layer is made of SS316L stainless steel for direct material contact, while the intermediate layer functions as a heating chamber via an electric generator. The outermost layer provides thermal insulation.
🛡️ Compliance: The entire equipment complies with GMP standards. All contact parts are made of imported stainless steel. Interior surfaces feature mirror polishing (300EMSH sanitary level) to meet strict hygienic requirements.

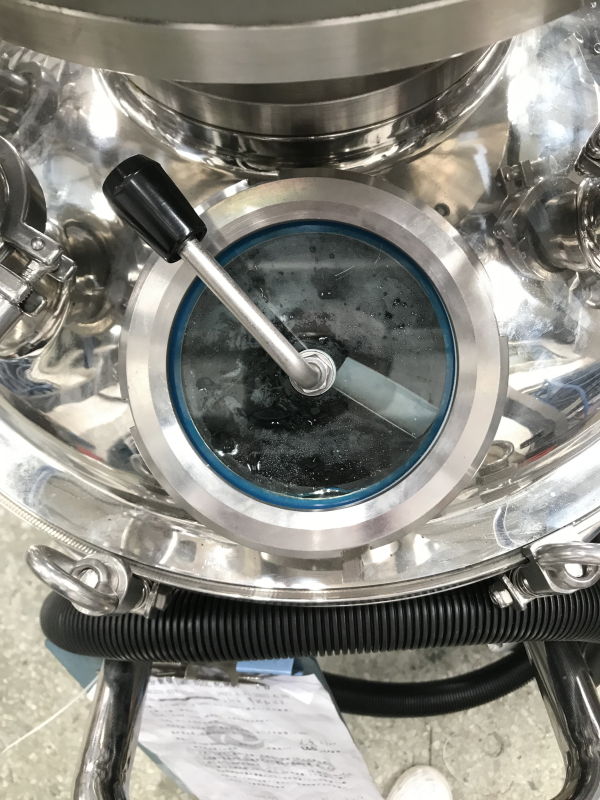

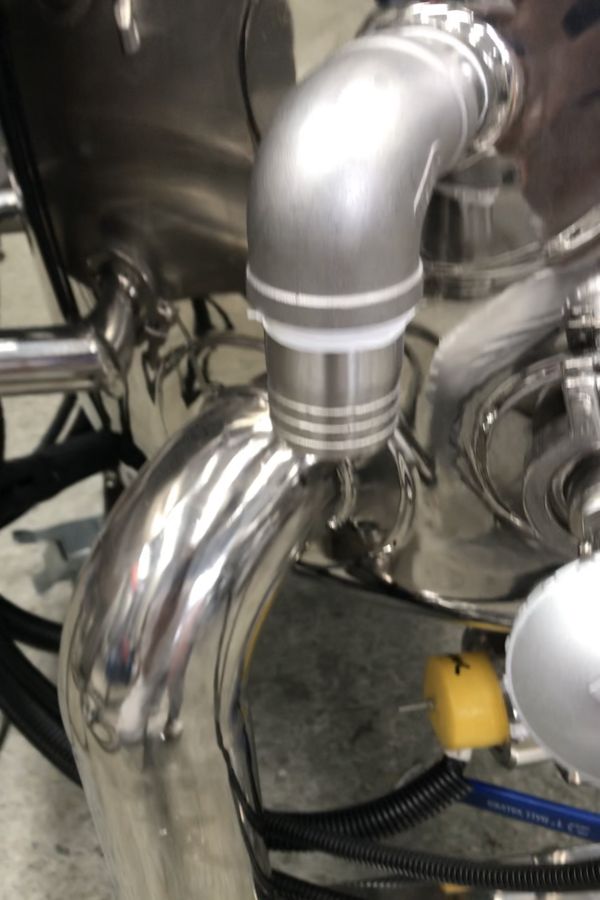

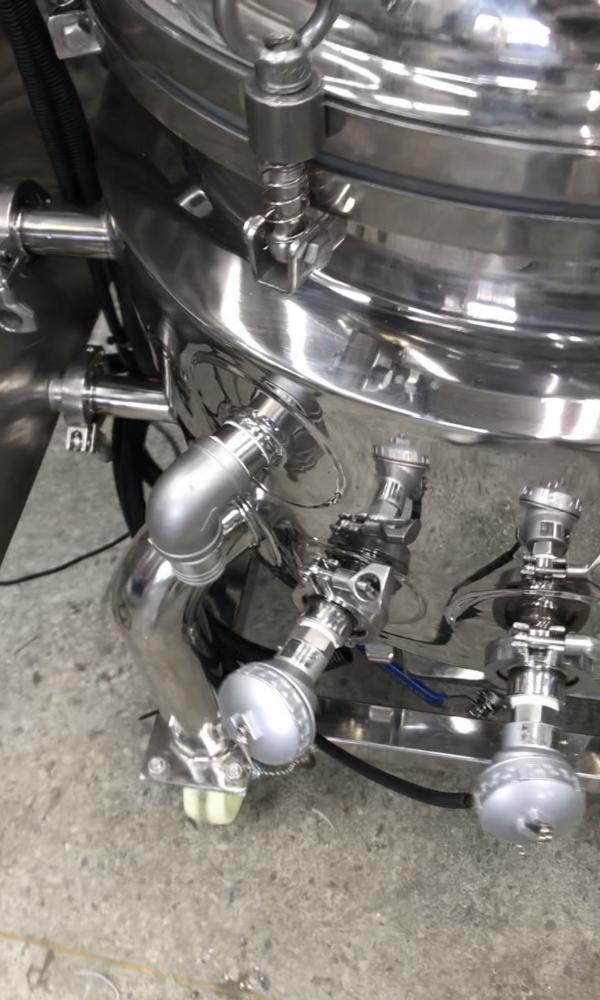

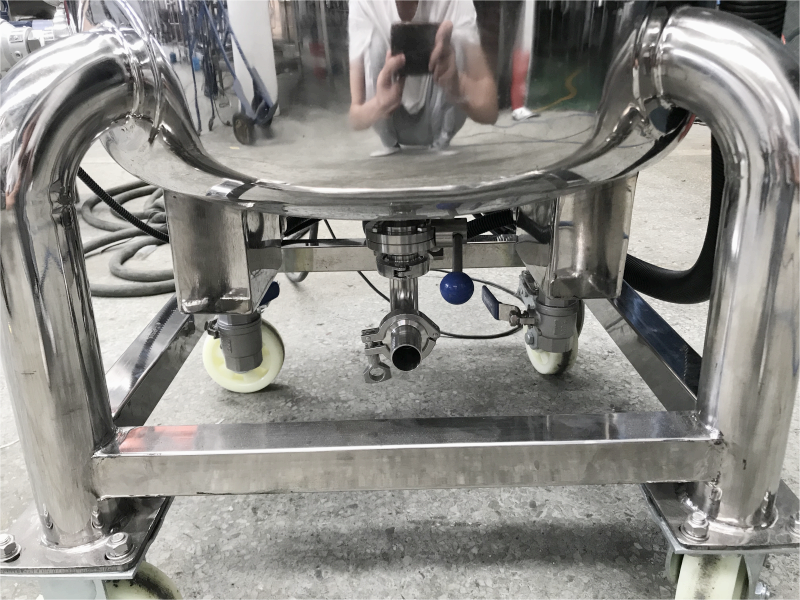

🔄 System Design: The stirring pot and cover are connected with flange sealing. The tank is equipped with process ports for feeding, discharging, observation, temperature/pressure measurement, and safety venting.

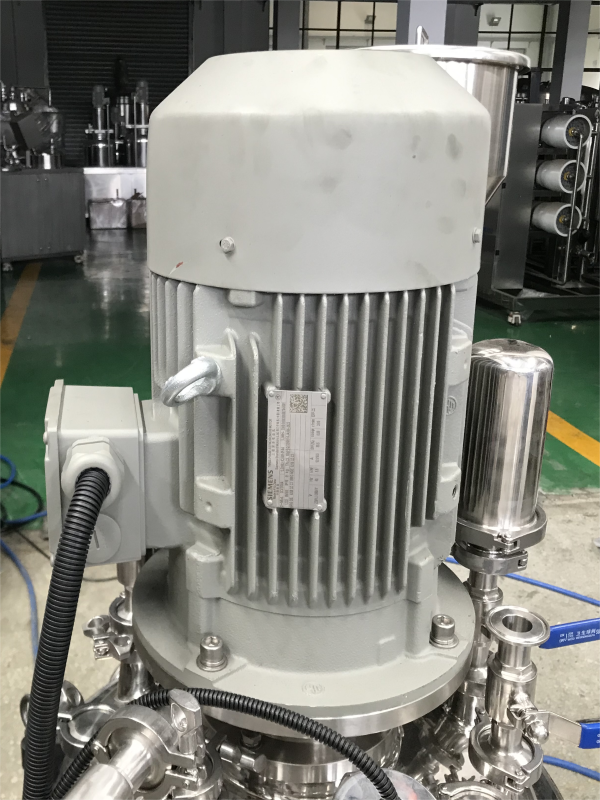

The dispersion system is driven by high-performance Siemens motors, transmitting power through a drive shaft and coupling to a dual dispersion disc. Speed regulation is managed via a Siemens inverter within the electrical box for maximum stability and international standard compliance.
Operating with the support of advanced design centers and research institutes, our production focuses on senior engineering expertise to provide professional cosmetic machinery. Our products serve diverse industries including cosmetics, medicine, food, chemical, and electronics, meeting the needs of numerous internationally recognized enterprises.
📦 Packaging: Standard Export Plywood Case / Steel Case suitable for container transportation.
⏳ Standards: Products designed in strict accordance with DIN, SMS, 3A, IDF, ISO, and compliant with GMP, QS, and HACCP requirements.
| Product name | Volume (L) | Motor power (KW) | Mixing Speed (r/min) | Heating power | Pot pressure (Mpa) |
| SME-B-50L | 50L | 5.5(KW) | 0-3400(r/min) | 3KW | 0.1-0.15(Mpa) |
