⚙️ Technical Features
🚀
Dual Motor System: Uses a stirring motor for mixing paddle rotation and a discharge motor for tilting the tank to facilitate easy unloading.
🛡️
High-Precision Bearings: Equipped with one-way and radial thrust ball bearings at both ends of the shaft to prevent radial turbulence.
💎
Advanced Sealing: Improved sealing mechanisms at both ends of the mixing shaft ensure zero material contamination.
🔄
Self-Locking Mechanism: The worm wheel and worm drive provide a self-locking effect, allowing the box to be dumped and held at any angle safely.
🧪
Flexible Processing: Supports adding raw materials, drying, adding adhesives or liquid sprays to achieve the ideal soft material consistency.
🏭 Industrial Applications
Pharmaceutical: Mixing for tablets and granules production.
Food Industry: Condiments, dairy products, spices, and cakes.
Feed Production: High-efficiency mixing of various feed materials.
Chemical: Professional mixing of powders and liquids.
✅ Professional Service Commitments
⏱️ Fast Delivery: Standard delivery date in only 30 days.
🛠️ Customization: Plans tailored according to specific requirements.
📹 Visual Inspection: Support for video factory and product inspections.
📜 Warranty: Two-year comprehensive equipment warranty.
📚 Training: Detailed equipment operation videos provided.
📊 Aseptic Storage Tank Specifications
| Model |
50L |
300L |
550L |
| Blades form |
S type paddle |
S type paddle |
S type paddle |
| Volume(L) |
50 |
300 |
550 |
| Agitation speed(r/min) |
24 |
24 |
24 |
| Flip Angle |
< 105 |
< 105 |
< 105 |
| Mixing motor(kW) |
1.5 |
5.5 |
7.5 |
| Dumping motor(kW) |
0.37 |
1.1 |
1.5 |
| Dimension(mm) |
1200*500*950 |
2150*700*1250 |
2400*1000*1300 |
| Weight(kg) |
200 |
550 |
850 |

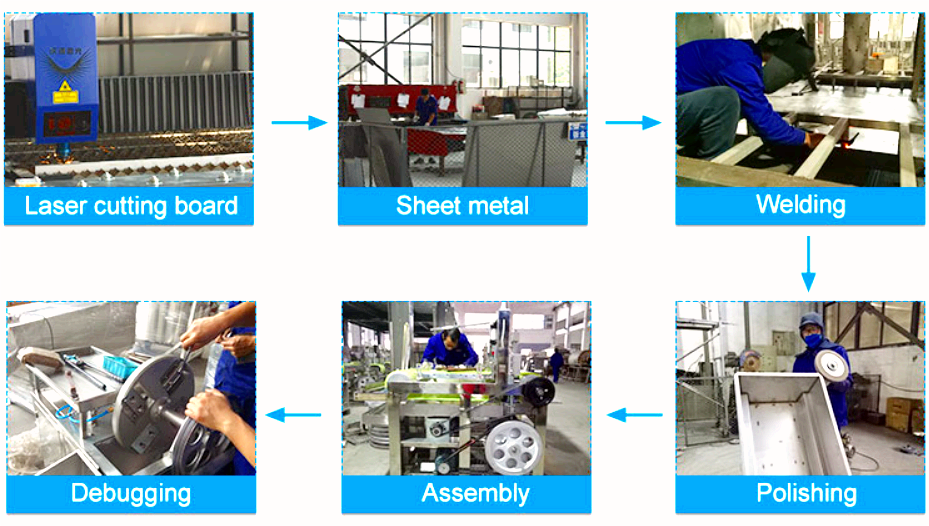

With many years of experience in domestic and international installation, we have undertaken the integral installation of hundreds of large-sized projects. Our team provides top-ranking professional project management and maintenance services. Our after-sales personnel have extensive practical experience and receive systemic training to provide machinery equipment, raw materials, and technical consultation services.

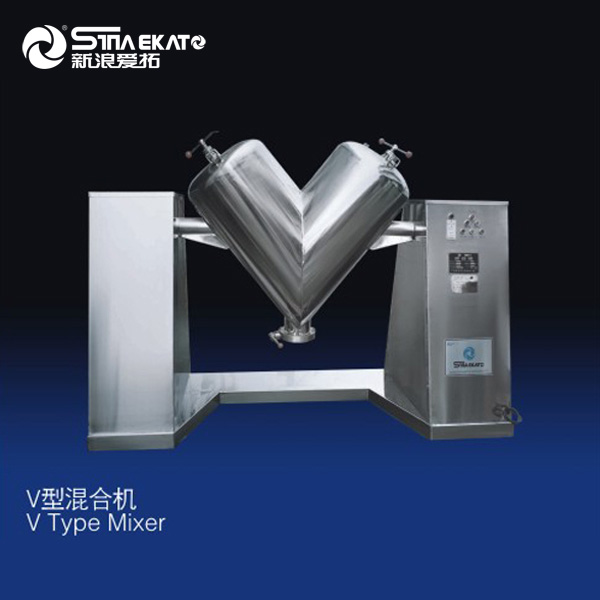

✨ V Type Mixer
Frequently Asked Questions (FAQ)
Q1: What are the primary industries that can benefit from this mixer?
A: It is widely used in the pharmaceutical, food (condiments, dairy, spices), feed production, and chemical industries for mixing powders and liquids.
Q2: How does the discharge motor improve operation?
A: The dedicated discharge motor allows the stirring tank to tilt at any angle, making the unloading process much easier and more controlled through a self-locking worm drive.
Q3: Does the machine prevent cross-contamination?
A: Yes, the sealing at both ends of the mixing shaft has been specifically improved to ensure it is completely sealed, preventing any contaminant material from entering the mixture.
Q4: What is the typical lead time for delivery?
A: The standard delivery date is approximately 30 days from the order confirmation.
Q5: What kind of after-sales support is provided?
A: We provide a two-year equipment warranty, equipment operation videos, and support for remote video inspections of the finished product.
Q6: Can the machine handle both dry and wet mixing?
A: Yes, it is designed to dry raw materials for a period and then mix in adhesives or liquids to create an ideal soft material.
