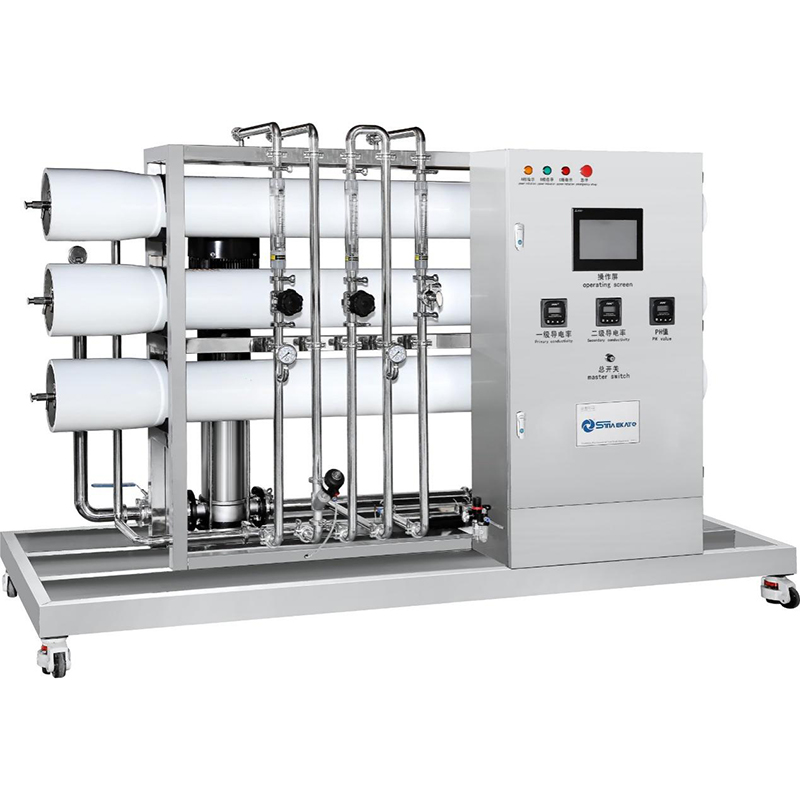

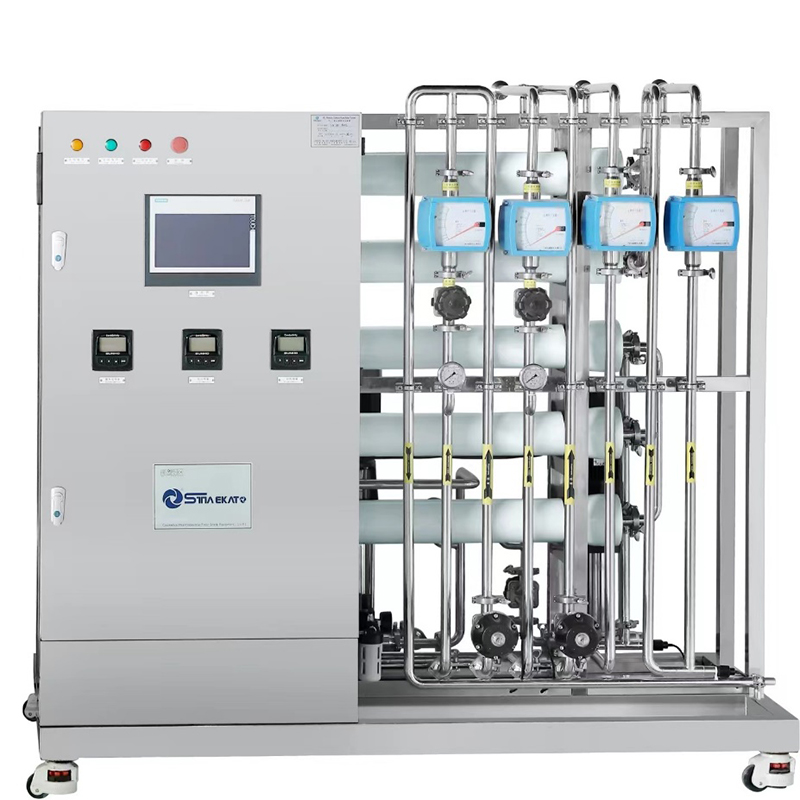

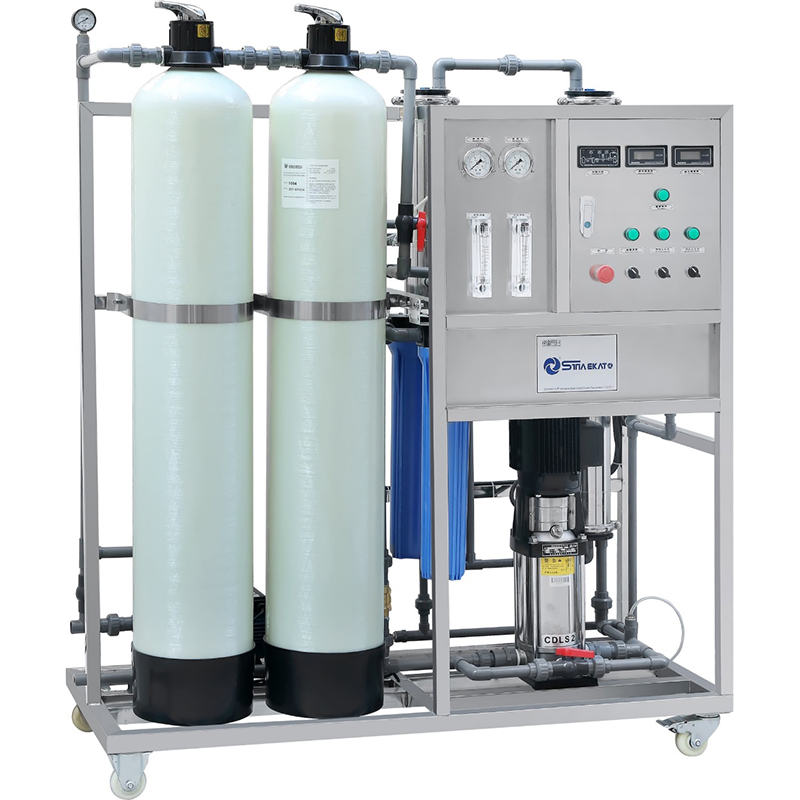

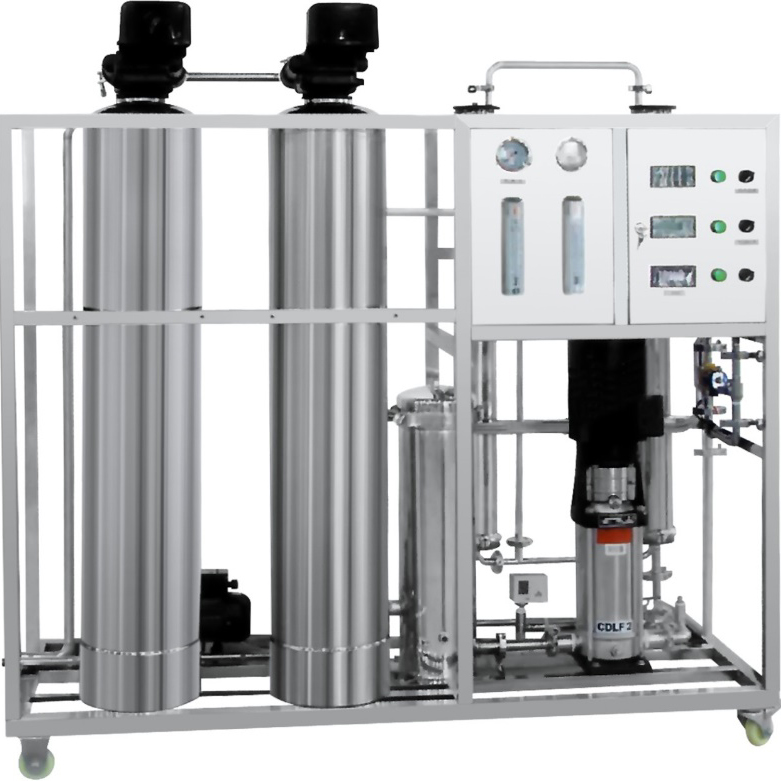

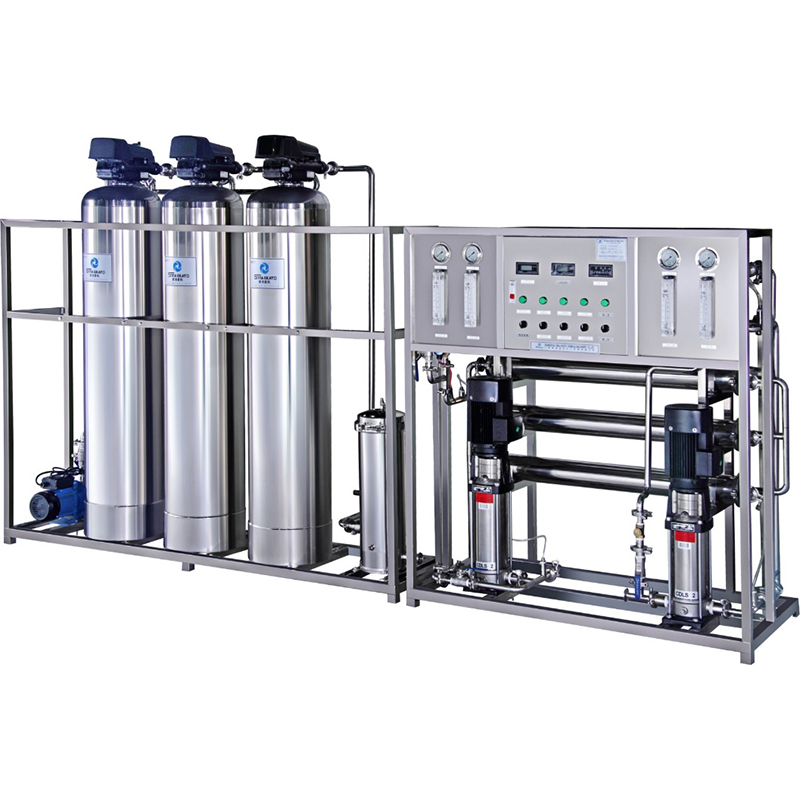

Custom One-stage and Two-stage stainless steel RO water treatment Manufacturers, Factories

Reverse osmosis technology is a modern high technology developed recently in China. Reverse osmosis is to separate water from solution after it permeates the specially-made semi-transparent membrane through exerting a pressure that is higher than the osmosis pressure on the solution, As this process is reverse to the natural permeation direction, it is called reverse osmosis. According to different osmosis pressures of various materials, the process of reverse osmosis with a pressure higher than the osmosis pressure can be used to reach the purposes of separation, extraction, purification and concentration of a certain solution it does not need heating and there is no phase changing process; therefore, it saves more energy than traditional process.

Product Description

This system occupies little space, is easy to operate, and has a wide application range. When used for disposing industrial water, the reverse osmosis device does not consume large amounts of acids and alkalis, ensuring no secondary pollution while maintaining low operation costs.

💧
High Desalination: Rate >99%, machine rate >97%. Removes 98% of organic matters, colloids, and bacteria.
Water Quality: One stage ≤ 10 µs/cm, two stage around 2-3 µs/cm, EDI ≤ 0.5 µs/cm (base on raw water ≤ 300 µs/cm).
🤖
Automation: High degree of automation. Features automatic start/stop, timed flushing, and IC microcomputer control.
🛡️
Quality Parts: Imported parts account for over 90% of the system components.

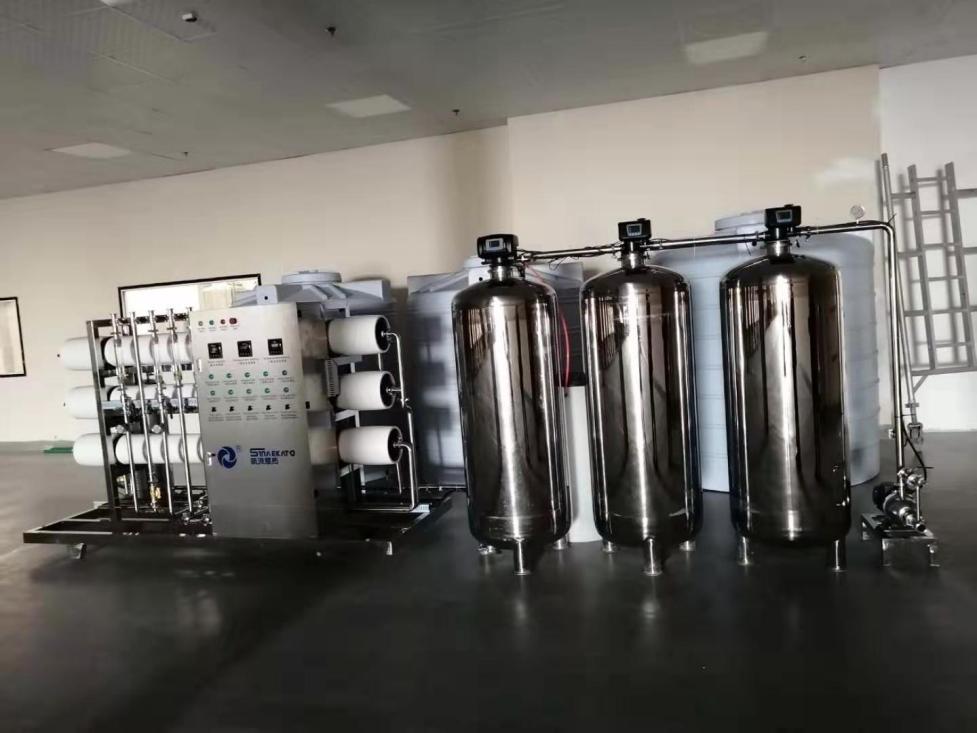

Water Treatment Equipment
Reverse Osmosis System
Industrial RO Unit
DUBAI Project - 2000L/Hour
Application Industries
Electronic Industry: Integrated circuits, silicon wafers, display tubes.
Pharmaceutical: Infusions, injections, tablets, biochemical products.
Chemical Process: Circulating water, product manufacturing.
Electric Industry: Thermal power generation, low pressure boilers.
Food & Beverage: Purified water, beverages, beer, alcohol.
Desalination: Seawater and saline water for islands and ships.
Cosmetics: Fine chemicals and home appliance painting.

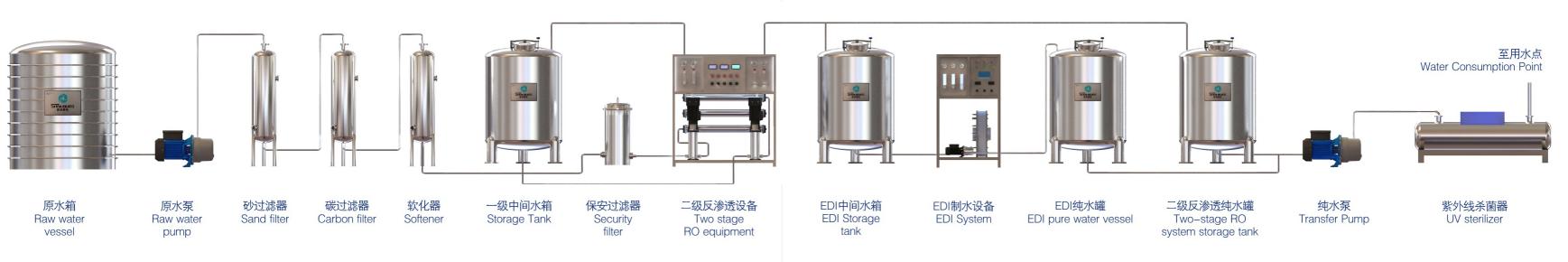

Flowchart for Two-stage Type
Raw water → Raw water tank → Raw water pump → Sand filter → Carbon filter → Safety filter → High pressure pump → One stage RO → Middle water tank → High pressure pump → Two stage RO → Stainless steel pure water tank → Pure water pump → Point of use
Global Projects Showcase

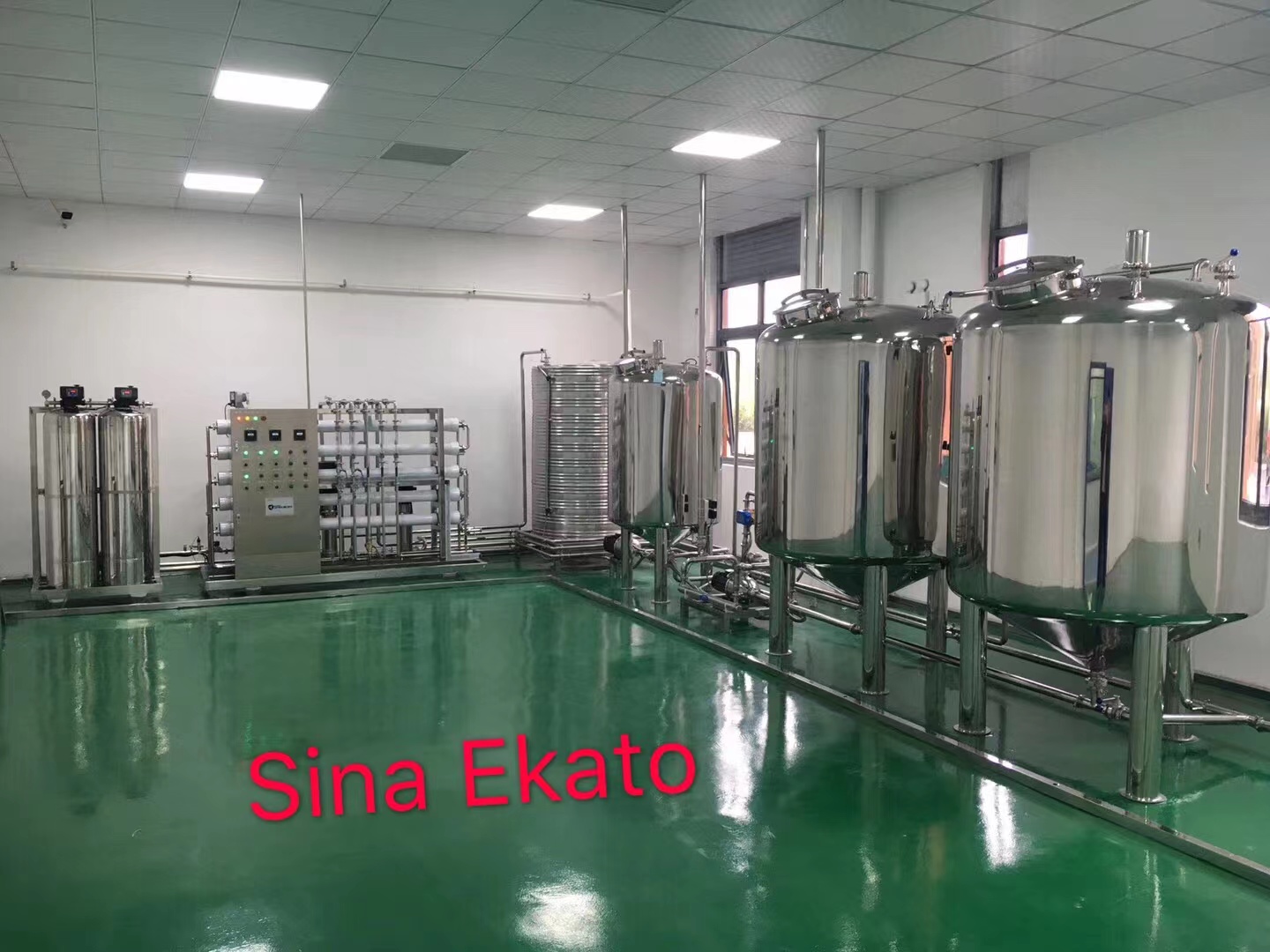

SRI LANKA Project
SRI LANKA Project - 1000L/Hour

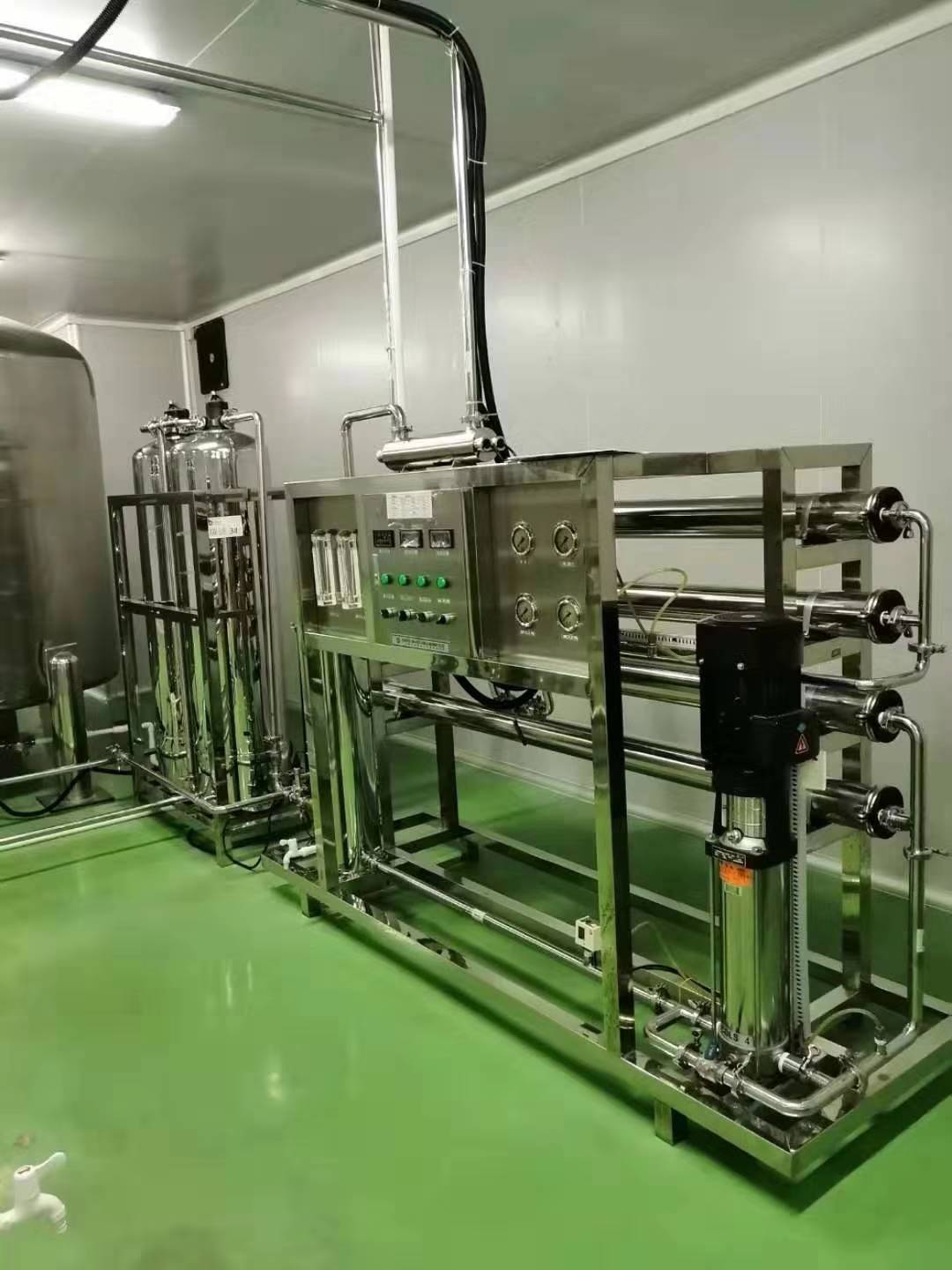

UK Project
UK Project - 1000L/Hour

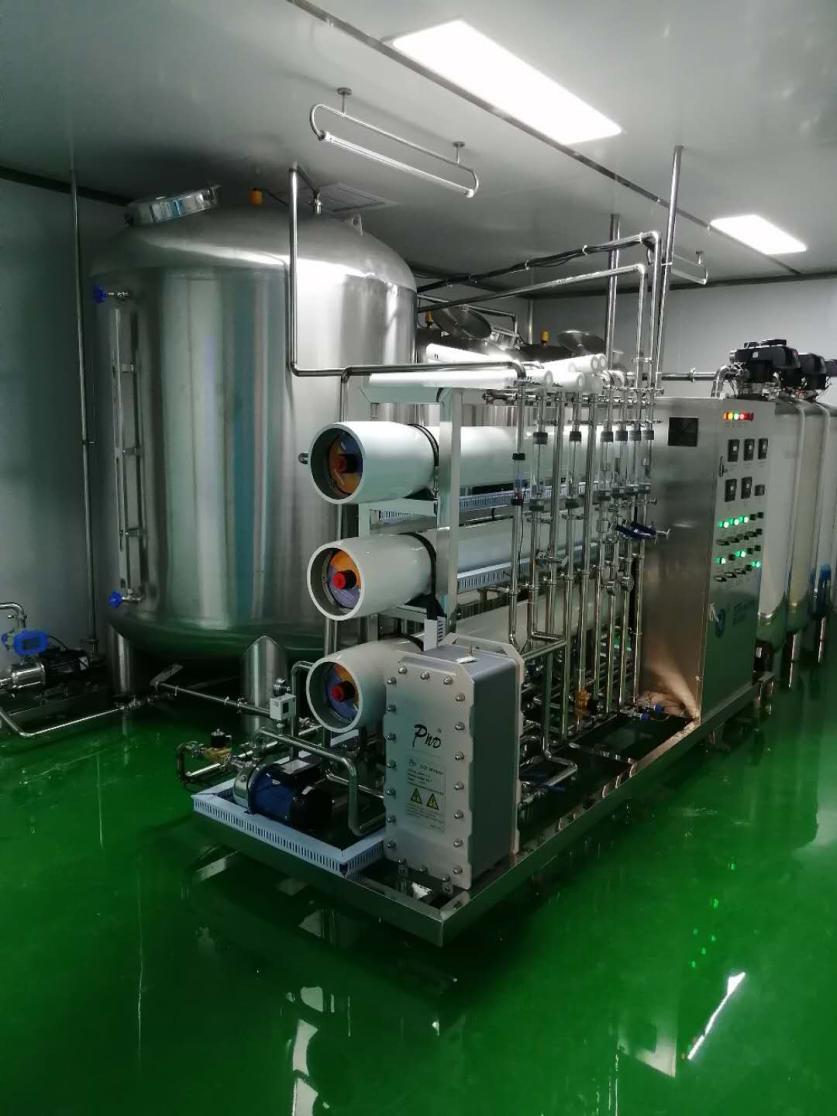

SOUTH AFRICA Project
SOUTH AFRICA - 2000L/HOUR

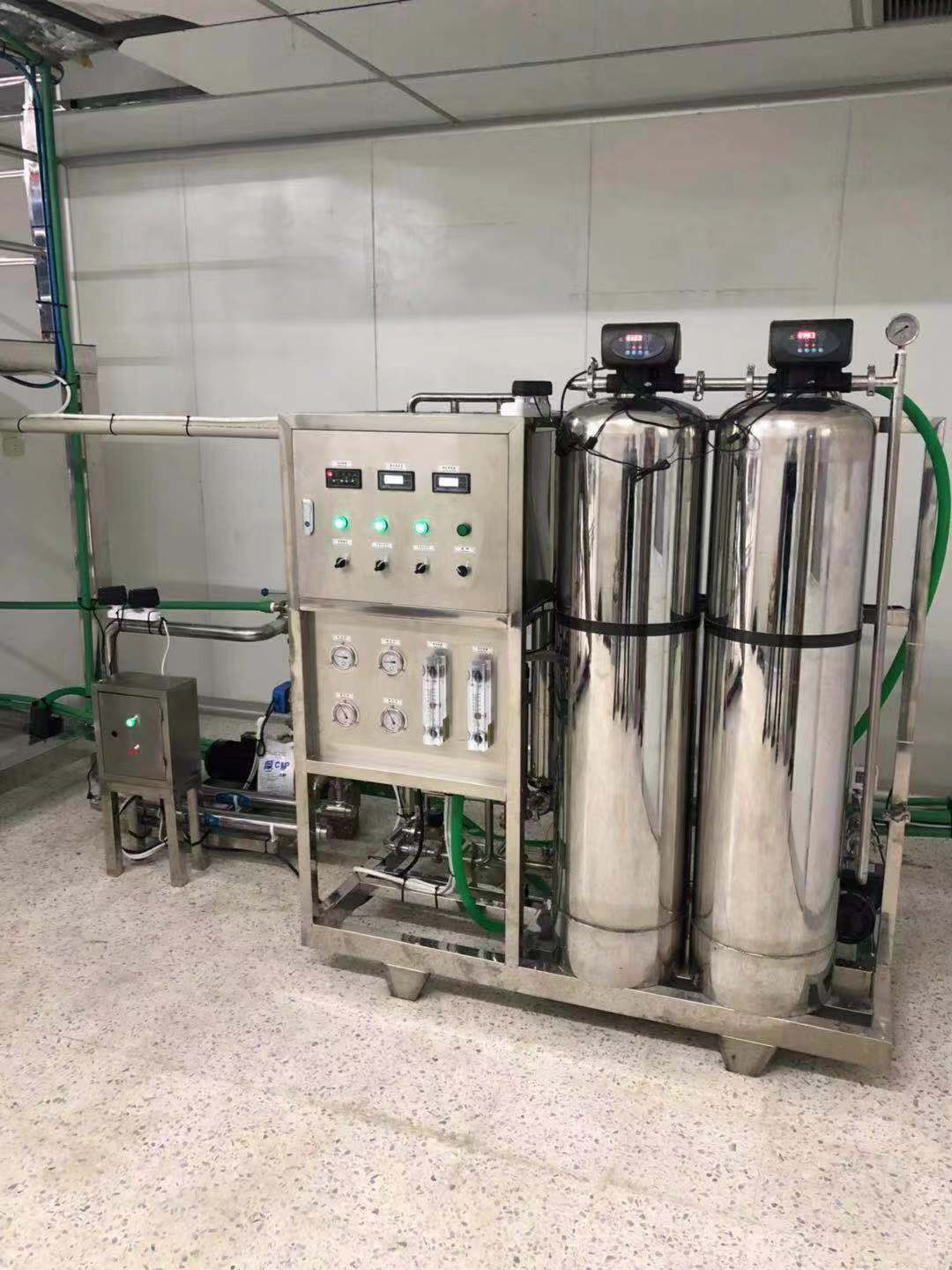

DUBAI Project
DUBAI Project - 3000L/Hour

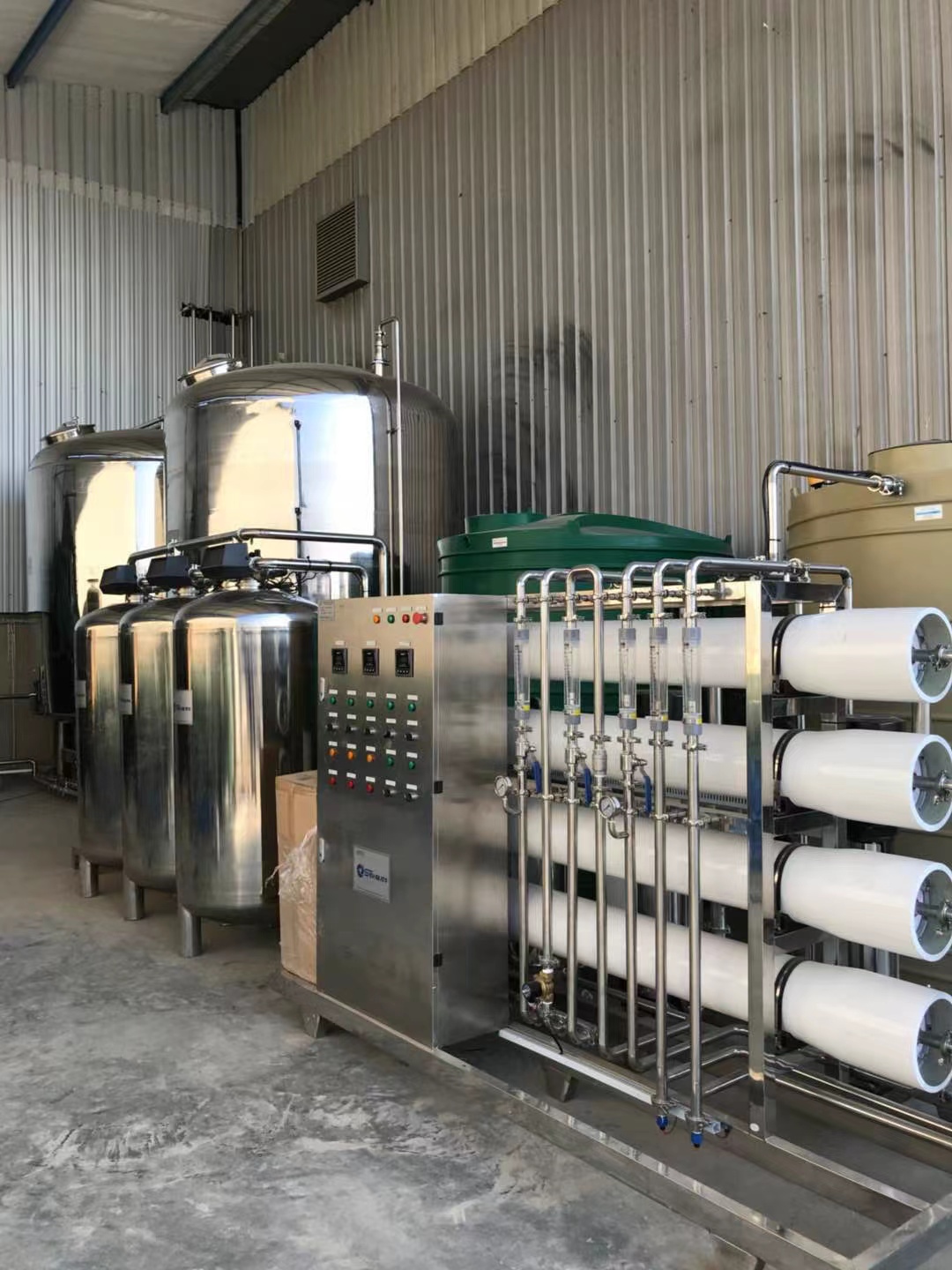

SYRIA PROJECT
SYRIA PROJECT - 500L/HOUR

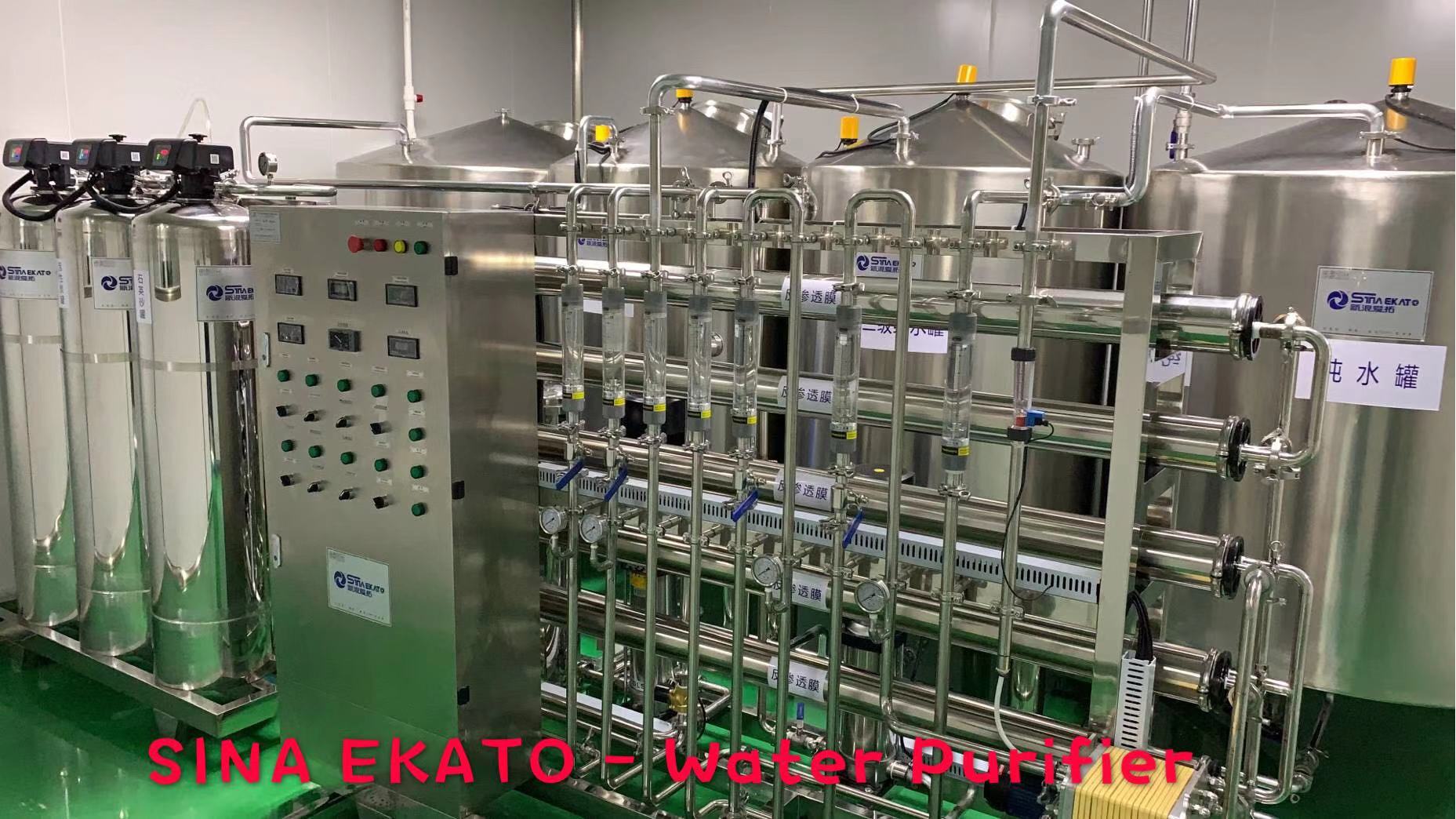

KUWAIT PROJECT
KUWAIT PROJECT - 1000L/HOUR
Advanced Treatment Components

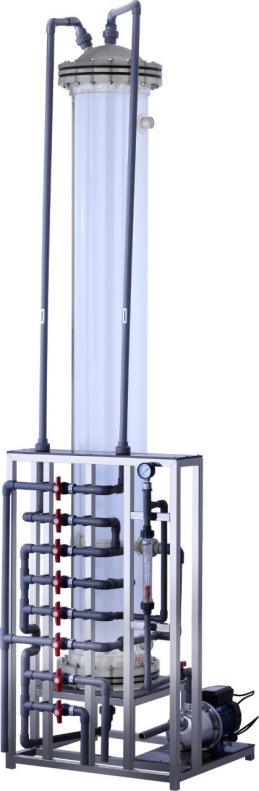

Anion Cation Mixing Bed
CG-Anion Cation Mixing Bed

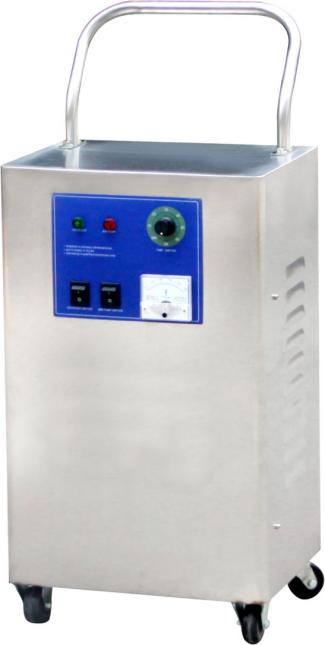

Ozone Generator
Ozone Generator

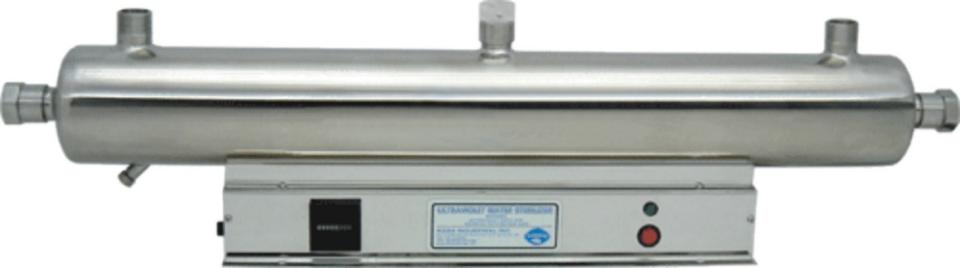

Ultraviolet Sterilizer
Current Passing Type Ultraviolet Sterilizer
CG-EDI-6000L/Hour
CG-EDI-6000L/Hour
Technical Specifications
Model Capacity (T/H) Power (KW) Recovery (%) One-stage Conductivity (µs/cm) Two-stage Conductivity (µs/cm) EDI Conductivity (µs/cm) Raw Water Conductivity (µs/cm)
R0-500 0.5 0.75 55-75 ≤10 2-3 ≤0.5 ≤300
R0-1000 1.0 2.2 55-75
R0-2000 2.0 4.0 55-75
R0-3000 3.0 5.5 55-75
R0-5000 5.0 7.5 55-75
R0-6000 6.0 7.5 55-75
R0-10000 10.0 11 55-75
R0-20000 20.0 15 55-75
No Item Data
1 Description Pure water treatment purifying machine
2 Voltage AC380V-3phase
3 Component Sand filter + carbon filter + soften filter + precision filter + Ro filter
4 Production Capacity 500L/H (500-5000L/H can be customized)
5 Filter principle Physical filtration + reverse osmosis filtration
6 Control Button or PLC + Touch screen
Frequently Asked Questions
1. What is the desalination efficiency of this RO system?
The system features a reverse osmosis desalination rate of ≥ 99%, with an overall machine desalination rate of ≥ 97%, effectively removing organic matter, colloids, and bacteria.
2. Does the system require chemical additives for water treatment?
No, when used for disposing industrial water, the RO device does not consume large amounts of acids or alkalis, making it an eco-friendly solution without secondary pollution.
3. Is the operation fully automated?
Yes, the system features a high degree of automation. It includes automatic start and stop functions based on water sufficiency, and the reverse osmosis membrane is automatically flushed by an IC microcomputer controller.
4. What is the typical water quality produced by the system?
The conductivity for one-stage finished water is ≤ 10 µs/cm, two-stage is around 2-3 µs/cm, and EDI treated water can reach ≤ 0.5 µs/cm.
5. Can the capacity of the machine be customized?
Yes, while standard models range from 500L/H to 20,000L/H, capacities between 500 and 5000L/H can be specifically customized to meet your requirements.
6. Are the system components reliable?
Absolutely. Imported parts account for over 90% of the machine, ensuring long-term durability and stable performance for industrial applications.
