| No. | Material volume (t) | Unit disposing capacity (t/h) | Initial temp (°C) | Final temp (°C) | Temp drop diff (°C) | Cold load (kw) | Affluence factor (1.30) | Design capacity (kw) |
|---|---|---|---|---|---|---|---|---|
| 1 | 1.00 | 1.00 | 80.00 | 30.00 | 50.00 | 58.15 | 1.30 | 1.30 |
| 2 | 2.00 | 2.00 | 80.00 | 30.00 | 50.00 | 116.30 | 1.30 | 1.30 |
| 3 | 3.00 | 3.00 | 80.00 | 30.00 | 50.00 | 174.45 | 1.30 | 1.30 |
| 4 | 4.00 | 4.00 | 80.00 | 30.00 | 50.00 | 232.60 | 1.30 | 1.30 |
| 5 | 5.00 | 5.00 | 80.00 | 30.00 | 50.00 | 290.75 | 1.30 | 1.30 |

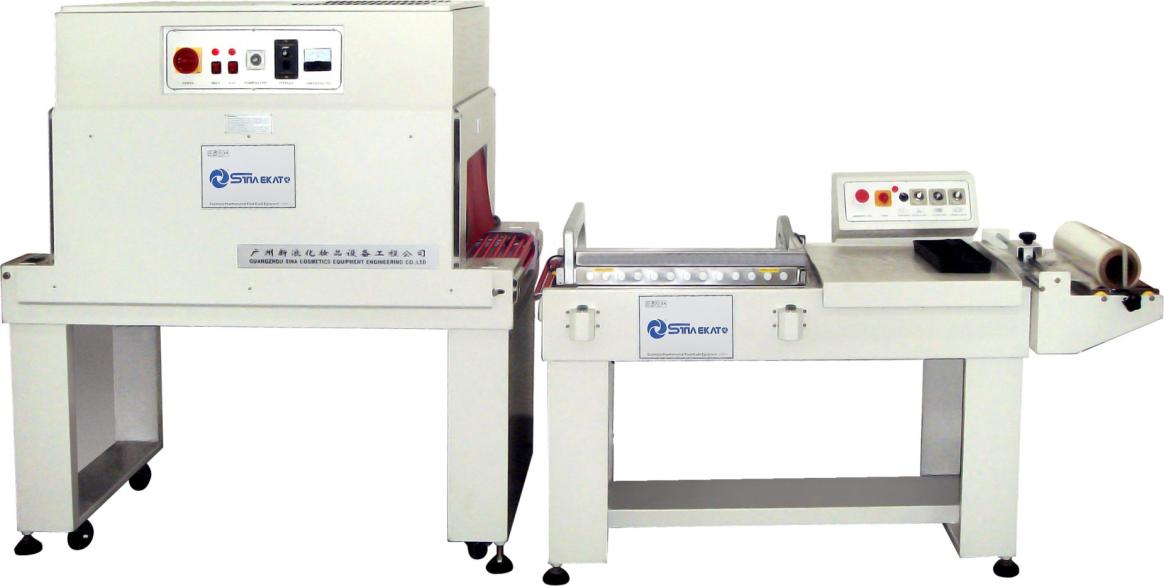

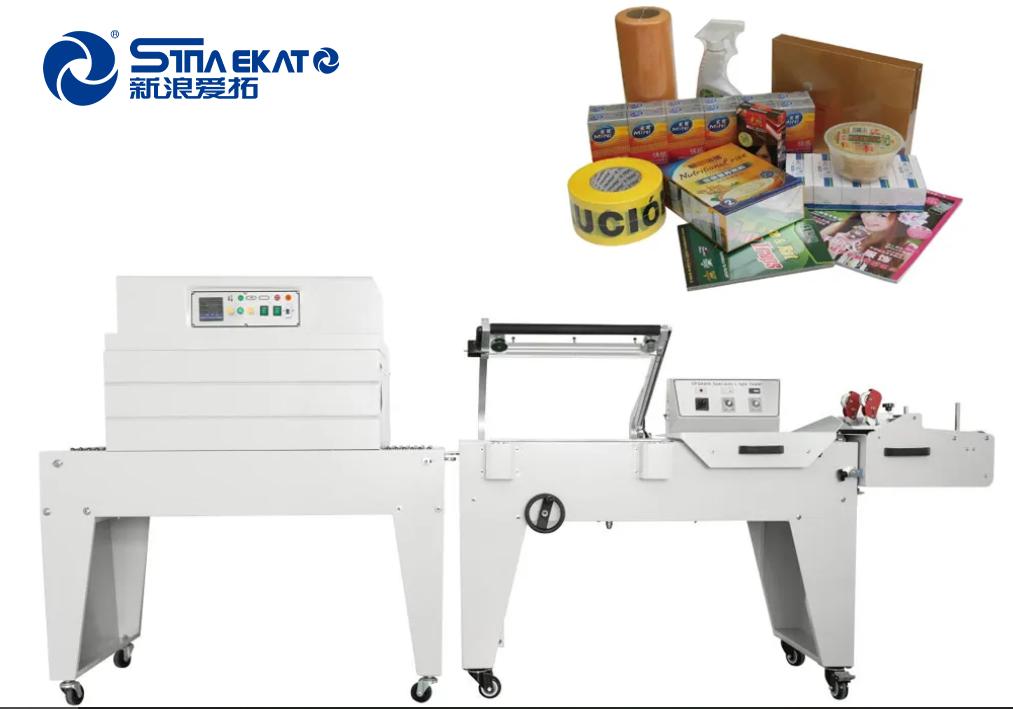

The cutting and sealing machine is generally used as a supporting equipment for the shrink packaging machine, and it can also be used alone. Featuring a Teflon coated non-stick layer sealing cloth, it ensures non-sticky film sealing that is neat and crack-free. After sealing and cutting, the product enters the shrinking machine to complete the packaging process.
| Item | Sealing and cutting machine |
| Item No. | 450L |
| Power supply | 220V 50/60HZ |
| Motor power | 1KW |
| Transfer speed | 0-15 PCS/min |
| Maximum sealing and cutting size | 450*350*200mm |
| Total Weight | 40-50KG |
| Dimension | 1080x720x910mm |
| Applicable shrink film | POF/PVC/PP |
01. Easy Operation: The control panel is concise and clear, making it simple for workers to operate.
02. Adjustable Film Frame: Thicker roller frame with strong load-bearing capacity; length is adjustable for simple film changes.
03. Practical Pin Wheel: Can move left and right to choose the exact punch position.
04. Advanced Sealing Knife: Uses Teflon-coated anti-sticking aluminum alloy for firm sealing without cracking, smoking, or pollution.
05. Firm Heat Sealing: Pull-down rod with 2 solenoid coils ensures fixed and firm sealing and cutting.
06. Height Adjustment: Hand wheel allows quick adjustment of table height based on product size.
The machine is designed to work efficiently with POF, PVC, and PP thermal shrink films.
The sealing knife is made of high-temperature aluminum alloy and is coated with a Teflon anti-sticking layer to ensure clean, smoke-free cuts.
Yes, the machine features an adjustable transfer speed ranging from 0 to 15 pieces per minute to suit your production needs.
Absolutely. You can simply turn the integrated hand wheel to adjust the table height according to the specific dimensions of your product.
The equipment utilizes stainless steel heating tubes and an advanced internal circulation design for long-lasting performance and low energy consumption.
The 450L model can accommodate a maximum sealing and cutting size of 450mm (length) x 350mm (width) x 200mm (height).
