1. With many years of experience in domestic and international installation, the manufacturer has successively undertaken the integral installation of hundreds of large-sized projects.
2. Professional project installation and management experience are provided to international standards.
3. After-sales service personnel have practical experience in equipment use and maintenance with systemic training.
4. Sincere provision of machinery & equipment, cosmetic raw materials, packing materials, and technical consultation services.
Supported by a professional design center and national light industry research institutes, the company is a professional manufacturer of various types of cosmetic machinery and equipment. The products are applied in industries such as cosmetics, medicine, food, chemical industry, and electronics, serving many nationally and internationally famous enterprises.
80% of the main parts of our products are provided by world’s famous suppliers, ensuring high quality products and effective guarantees.
◆ High speed rotor endows the material with high centrifugal speed and force. Granules spread homogeneously and uniformly with a degree of uniformity reaching more than 99%.
◆ Very small aperture between stator and rotor assures the effect of grinding, shearing, mixing and emulsifying while avoiding collision and friction.

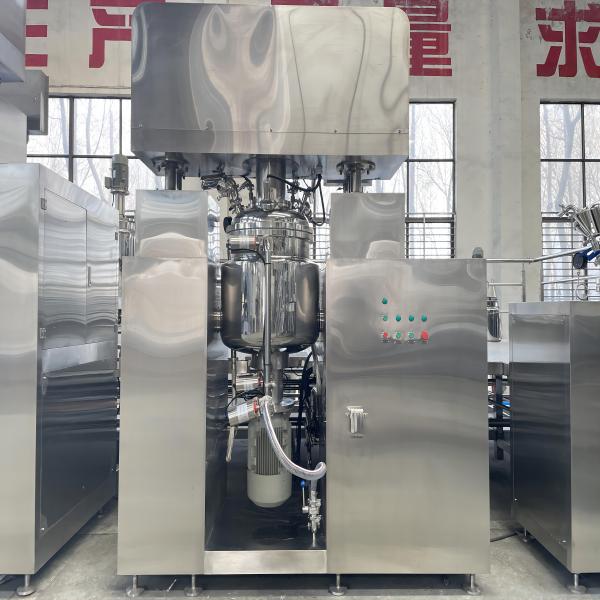

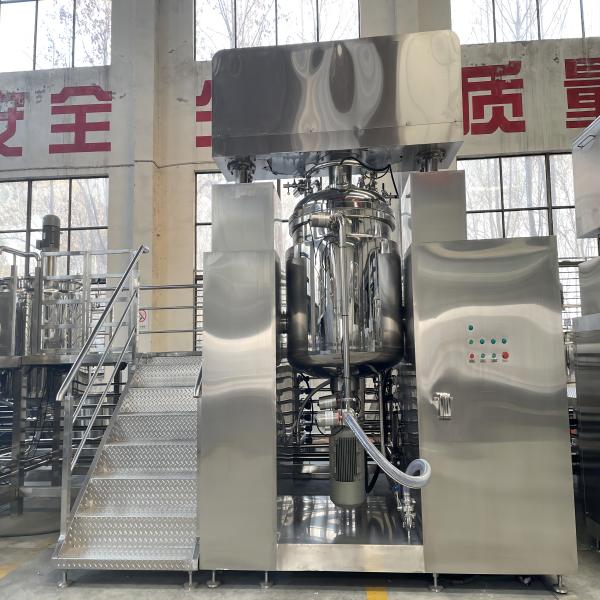

The SME Vacuum emulsifier is professionally designed according to cream/paste manufacturing processes. The machine is composed of pre-mixing pots, vacuum emulsifying pot, vacuum pump, hydraulic system, and electric control system. It offers stable performance, high efficiency, and is easy to clean.
The main pot mixing system adopts two-way wall scraping screw belt mixing. The stirring motor adopts German Siemens motors for efficient mixing. The mixer pot is made of three-layer stainless steel (SUS316L for material contact) and fully meets GMP requirements.
For materials of super high viscosity (above 50,000 C.P.S), the high viscosity vacuum emulsifying homogenizer is highly recommended. The machine includes vacuum, hydraulic pressure, heating, and cooling functions. Blending is carried out under vacuum to ensure emulsifying effects. Equipped with CIP for convenient cleaning.
| Model | Capacity | Homogenizer (KW/rpm) | Stir Motor (KW/rpm) | Heating (Steam/Elec KW) | Limit Vacuum (Mpa) |
|---|---|---|---|---|---|
| SME-DE5 | 5L | 0.37 / 3000 | 0.18 / 63 | 2 / 5 | -0.09 |
| SME-DE10 | 10L | 0.75 / 3000 | 0.37 / 63 | 3 / 6 | -0.09 |
| SME-DE50 | 50L | 3 / 3000 | 1.1 / 63 | 9 / 18 | -0.09 |
| SME-DE100 | 100L | 4 / 3000 | 1.5 / 63 | 13 / 32 | -0.09 |
| SME-DE200 | 200L | 5.5 / 3000 | 2.2 / 63 | 15 / 45 | -0.09 |
| SME-DE300 | 300L | 7.5 / 3000 | 2.2 / 63 | 18 / 49 | -0.085 |
| SME-DE500 | 500L | 11 / 3000 | 4 / 63 | 24 / 63 | -0.08 |
| SME-DE1000 | 1000L | 15 / 3000 | 5.5 / 63 | 30 / 90 | -0.08 |
| SME-DE2000 | 2000L | 15 / 3000 | 7.5 / 63 | 40 / _ | -0.08 |
Factory testing and experiments with face cream
A: The pot body is constructed using a three-layer imported stainless steel plate. The inner layer in contact with materials is SUS316L, while the jacket and insulation layers are SUS304, ensuring full compliance with GMP standards.
A: Yes, the vacuum emulsifying homogenizer is highly recommended for materials with super high viscosity, specifically those above 50,000 C.P.S.
A: The equipment supports both steam heating and electric heating modes, depending on the technological requirements and the specific model selected.
A: The homogenizing system, built with advanced technology, can reach a maximum emulsifying rotation speed of 4,200 rpm, with a shearing fineness of 0.2-5μm.
A: Yes, we provide a two-year equipment warranty along with operation videos and support for video inspections of the finished products.
A: Vacuum defoaming ensures the materials are aseptic. Additionally, vacuum sucking is particularly effective for powder materials to prevent dust contamination during the feeding process.
