CE Certification SINAEKATO SME-200L VACUUM HOMOGENIZING EMULSIFYING MACHINE (PLC CONTROL) Manufacturers, Factory

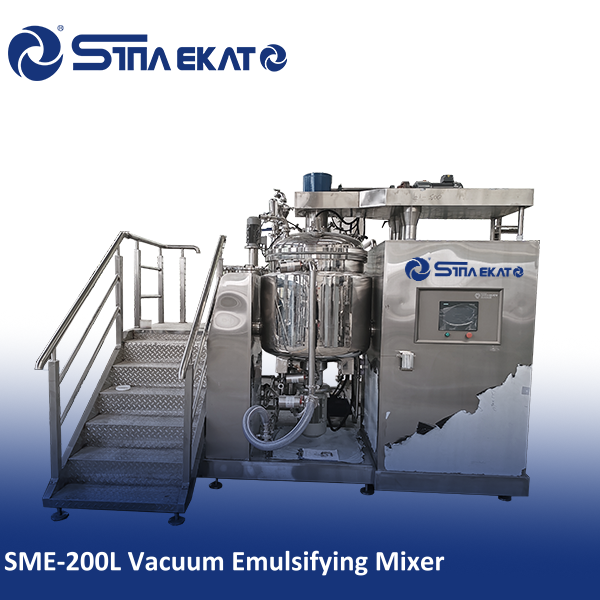

We are thrilled to introduce the SME-200L Hydraulic Lift Vacuum Emulsifying Mixer, a cutting-edge solution designed to meet the demanding requirements of the cosmetics, pharmaceutical, and food industries. This innovative mixer, developed by Sina Ekato, is equipped with advanced features that ensure efficient and precise emulsification, homogenization, and mixing processes.

Product Description

Daily Cosmetic
hair conditioner
facial mask
moisturizing lotion
suncream
skin care
shea butter
body lotion
sunscreen cream
cream
hair cream
cosmetic paste
BB Cream
lotion
face wash liquid
mascara
foundation
hair color
face cream
eye serum
hair gel
hair dye
lip balm
serum
lip gloss
emulsion
lipstick
highly viscous product
shampoo
cosmetic toner
hand cream
shaving cream
moisturizing cream
Food & Pharmaceutical
cheese
milk butter
ointment
ketchup
mustard
peanut butter
mayonnaise
wasabi
toothpaste
margarine
Salad dressing
sauce

For material of super high viscosity (above 50,000 C.P.S), the high viscosity vacuum emulsifying homogenizer is highly recommonded. Raw materials can be directly sucked into the groove by the machine. The machine is equipped with vacuum, hydraulic pressure, heating, cooling and other functions. Emulsifying, blending and dispersion can be completed within a short period of time. Slow speed blade type blending and high speed homogenizing systems are provided with frequency conversion control. Users can select push button control or PLC touch screen system. Parts that contact materials are made of stainless steel SS316L. The whole equipment conforms to GMP standard. Blending is carried out under vacuum to effectively ensure the emulsifying effect. The machine equipped with CIP, which can convinient user's own CIF system to clean the machine.

Pls kindly confirm as following:
? 1. What is your detail of made products?
? 2. What is capacity of tank do you need?
? 3. Which heating method do you need? (electric heating or steam heating)
? 4. Which type of homogenizer do you need? (upper homogenizer or bottom homogenizer)
? 5. Which control do you need? (PLC touch screen control or button control)

The advantage of the homogenizing emulsifier is that it can conveniently deal with a variety of product materials. The pot lid stirring homogenizer is connected with the frame, and the hydraulic system is used to lift and lift, and the cleaning is convenient to operate. The emulsifier equipment from the laboratory to the large tonnage level processing capacity uses the homogenizing way, which a good design in structure.

Available Production Lines
(1) Cosmetics cream, ointment, skin care lotion, toothpaste production line. From Bottle washing machine - bottle drying oven - Ro pure water equipment - mixer - filling machine - capping machine - labeling machine - heat shrink film packing machine - inkjet printer - pipe and valve etc.
(2) Shampoo, liquid soap, liquid detergent (for dish and cloth and toilet etc), liquid wash production line.
(3) Perfume production line.
(4) Other machines: powder machines, lab equipment, and some food and chemical machines.

80% of the main parts of our products are provided by world's famous suppliers. During long-term cooperation and exchange with them, we have accumulated much valuable experience, so that we can provide customers with high quality products and more effective guarantee.

Reverse Osmosis Water Treatment

Stainless Steel Storage Tank

Fully automatic production line

Model Capacity Homogenizer Motor Stir Motor Dimension (mm) Total power (KW) Limit vacuum (Mpa)
KW r/min KW r/min L W H Steam Electric
SME-D55L0.3730000.186312605401600/185025-0.09
SME-D1010L0.7530000.376313005801600/195036-0.09
SME-D5050L330001.163260022501950/2700918-0.09
SME-D100100L430001.563275023802100/29501332-0.09
SME-D200200L5.530002.263275027502350/33501545-0.09
SME-D300300L7.530002.263290028502450/35001849-0.085
SME-D500500L113000463365033002850/40002463-0.08
SME-D10001000L1530005.563420036503300/48003090-0.08
SME-D20002000L1530007.563485043003800/540040_-0.08
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.
Frequently Asked Questions
1. What materials is this vacuum emulsifying homogenizer suitable for? It is highly recommended for materials with super high viscosity, specifically those above 50,000 C.P.S, making it ideal for cosmetic creams, ointments, and pharmaceutical pastes.
2. Does the equipment comply with international manufacturing standards? Yes, the entire equipment conforms to GMP standards. All parts that come into contact with raw materials are made of high-quality stainless steel SS316L.
3. What functions are integrated into this machine? The machine is a multi-functional system equipped with vacuum suction, hydraulic lifting, heating, cooling, blending, and high-speed dispersion capabilities.
4. Can I choose the control system for my production line? Absolutely. Users can select between a traditional push-button control panel or a modern PLC touch screen system depending on their operational preferences.
5. How is the cleaning process handled for this emulsifier? The machine is equipped with a CIP (Clean-In-Place) system, allowing for convenient and efficient cleaning through the user's existing cleaning infrastructure.
6. What is the capacity range available for these machines? We offer a wide range of capacities from laboratory-scale 5L units up to large-scale industrial 2000L production models to meet various processing needs.
