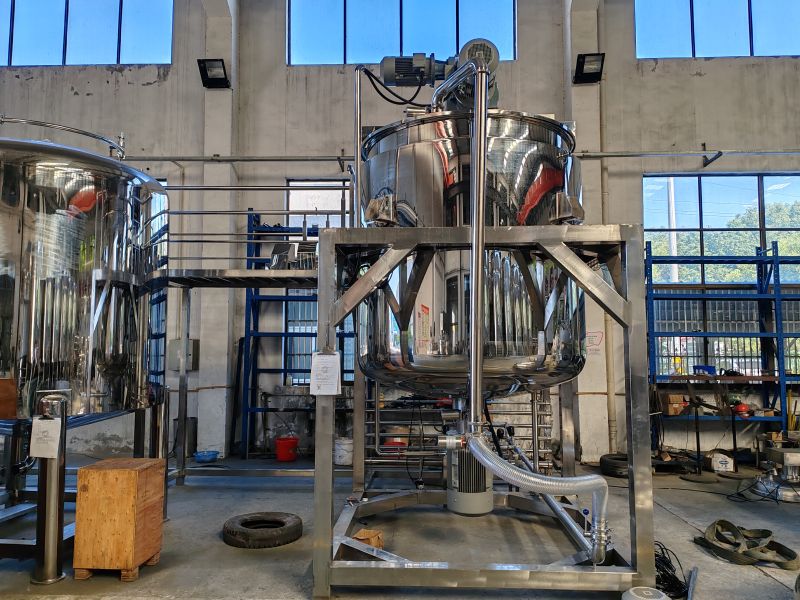

The PME-4000L Mixer adopts a fixed pot body design where the pot cover and body are connected via flange, ensuring a stable and sealed environment for industrial processing.
🚀
Equipped with a diversified high-speed homogenizer, it powerfully mixes solid and liquid raw materials, rapidly dissolving indissoluble materials like AES, AESA, and LSA during detergent production, significantly reducing energy consumption and production cycles.
The mixer pot features a sophisticated three-layer stainless steel welded structure. The inner layer, in direct contact with materials, is crafted from imported SUS316L stainless steel. The jacket and insulation layers are made of 304 stainless steel. All tank bodies and pipelines are mirror-polished or matte-finished to meet strict GMP requirements.
Core Mixing & Control Systems
🔄
Double-Direction Stirring: Adopts wall-scraping mixing with frequency conversion speed adjustment to satisfy various technological requirements.
🌀
Bottom Homogenization: Utilizes an external circulation system with high-quality motors. The homogenization speed (0-2880 r/min) is precisely managed via PLC control.
💻

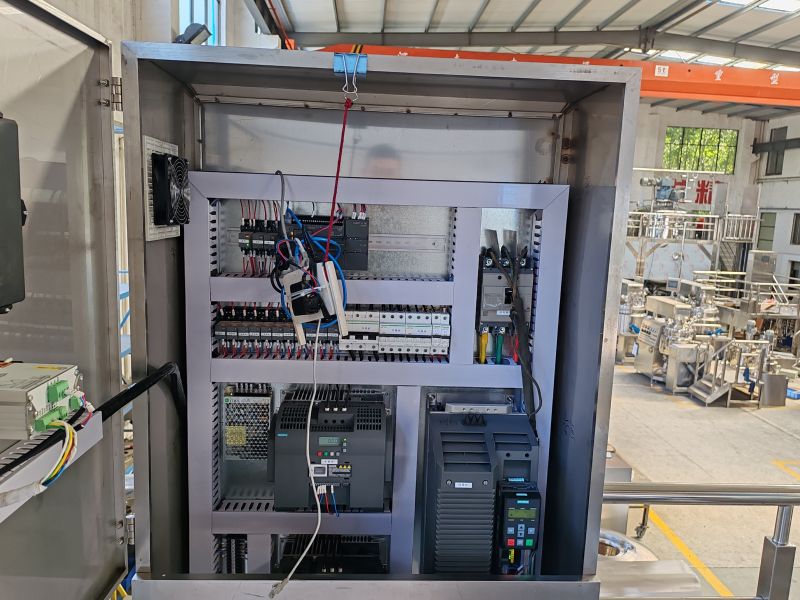

Smart Control: Managed by an independent PLC electronic control cabinet using high-end electrical components (Schneider Electric, Siemens, Omron). Operation is monitored and controlled through a Siemens PLC touch screen.
Components & Modules
Top Mixing System: Features bi-directional wall-scraping stirring powered by German motors for thorough blending.
Certifications & Quality: 80% of main parts are sourced from world-famous suppliers, ensuring high-quality products and effective operational guarantees.
Integrated Piping & Safety
The system includes a comprehensive pipeline network: Sewage pipes, Steam inlet/outlet for heating, Cooling water pipes for temperature regulation, and Compressed air pipes for agitation or aeration processes.
✔️ Delivery within 30~60 days
✔️ Customized plans according to requirements
✔️ Equipment warranty for two years
✔️ Video inspection support
Frequently Asked Questions
Q1: What materials are used for the PME-4000L Mixer?
The inner layer in direct contact with materials is made of SUS316L stainless steel, while the outer layers and pipelines use SUS304 stainless steel, fully complying with GMP standards.
Q2: How is the homogenization speed controlled?
The homogenization speed (ranging from 0-2880 r/min) is adjusted through a Siemens inverter and managed via a PLC touch screen control system.
Q3: What industries can benefit from this mixer?
It is ideal for producing liquid detergents, cosmetics, spices, pharmaceuticals, and other fine chemicals that require efficient emulsification and blending.
Q4: Does the machine support heating and cooling?
Yes, the system is designed with a steam heating pipe for efficient temperature increase and a cooling water inlet for precise temperature regulation during processing.
Q5: What are the advantages of the PLC touch screen interface?
It provides a user-friendly interface for real-time monitoring, precise parameter control (speed, temperature, time), and automation capabilities to ensure consistent product quality.
Q6: What is the lead time and warranty for this equipment?
The typical delivery period is between 30 to 60 days. We provide a two-year equipment warranty and support video inspections of finished products.
