This specialized machinery is engineered for the high-efficiency manufacturing of paste and ointment-like products, including toothpaste, cosmetics, food, and various chemical industry applications. Flexible production capacities are available ranging from 50L to 5000L.

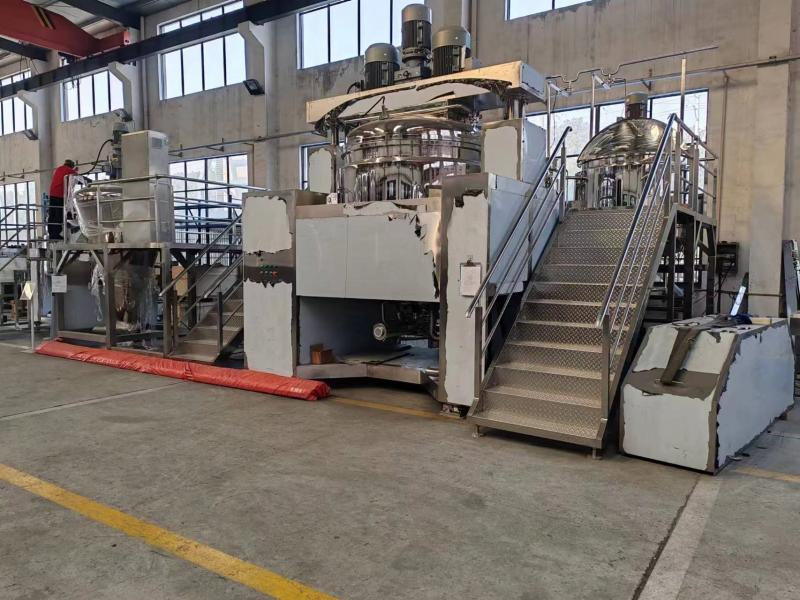

🌐 Industrial Toothpaste Making System (3500L Configuration)
📊 1800L Oil-phase Premixer
- Three layers stainless steel construction.
- All contact parts adopt high-grade Stainless Steel 316L.
- Outer surfaces and non-contact parts adopt Stainless Steel 304.
- Efficient Steam Heating system.
- Top-mounted dispersing mixing unit.
- Advanced Control via Touch Screen & PLC interface.
🏗️ SME-BE3500L Main Mixer
- Heavy-duty three-layer stainless steel structure (SUS316L for product contact).
- Integrated Steam Heating technology.
- Single direction mixing equipped with wall scrapers + dual-side dispersing mixing.
- Dual control options: Intuitive Touch Screen + PLC (Optional electrical buttons).
- Top mixing configuration for uniform consistency.
- Optional Homogenizer/Emulsifier integration available.
💧 2000L Water-phase Premixer
- Full stainless steel construction (SUS316L contact / SUS304 surface).
- Steam heating functionality.
- Top-mounted Paddle mixing with precision guide plate.
- Bottom-mounted high-shear homogenizer.
- Centralized PLC & Touch Screen management.

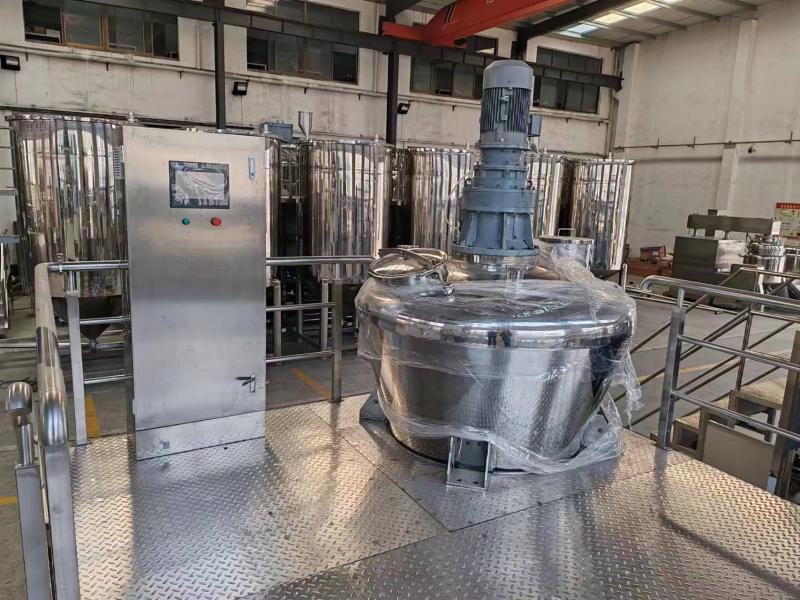

⚖️ 1500L Powder Mixer (Independent Platform)
- Single layer design (Non-heating/cooling type).
- Sealed cover for dust-free operation.
- Hydraulic lifting system for easy cleaning and discharge.
- Vacuum system integration for powder suction.
- GMP standard compliant with SUS 316L contact materials.
- Versatile application for both cream and liquid toothpaste production.
📸 Quality Inspection & Shipment
Rigorous factory inspection process ensures performance standards are met before global shipment.
🧴 Tube Filling & Sealing Unit
Available in Semi-automatic and Full-automatic configurations to suit different production scales.
🔍 Technical Details & Components
SME-BE3500L Main Pot

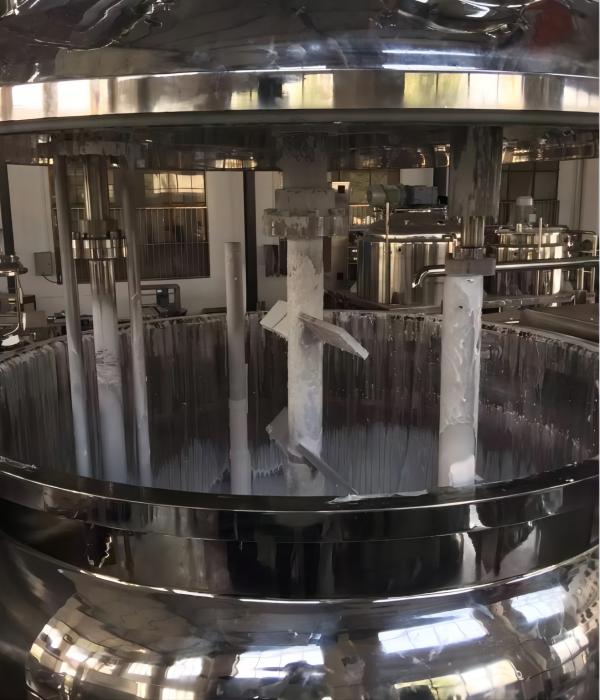

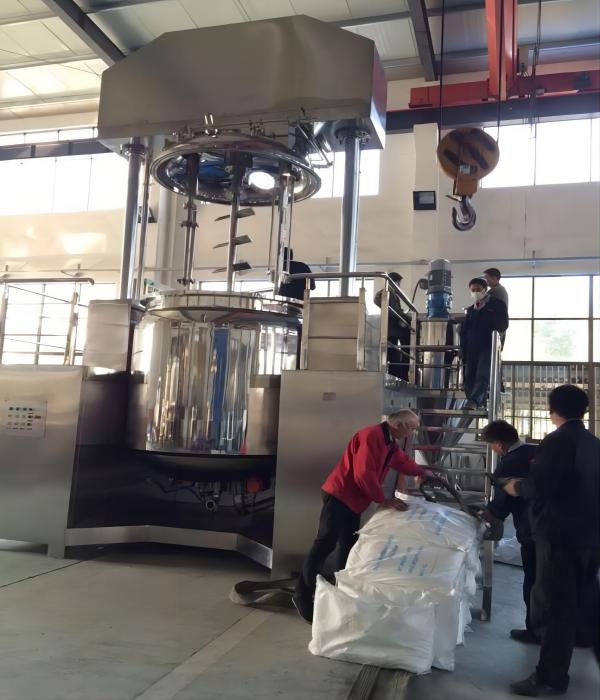

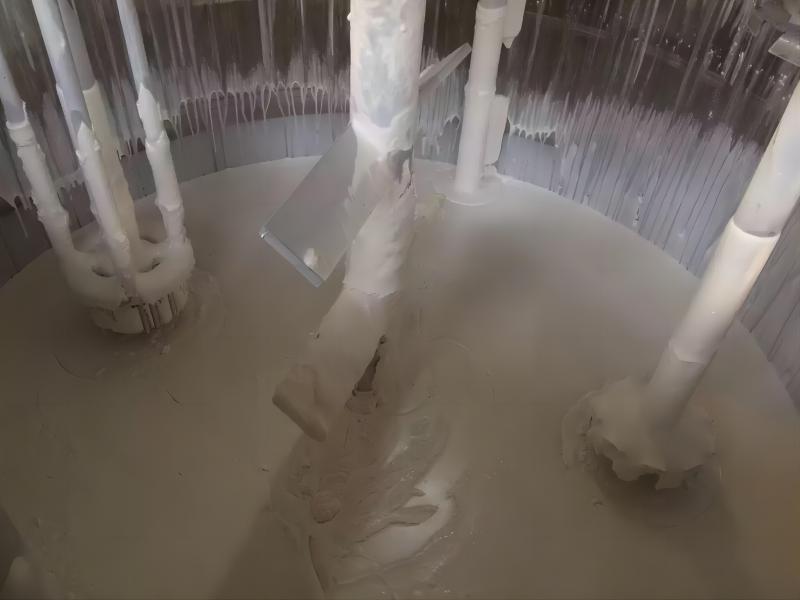

2000L Water-phase & 1800L Oil-phase Premixers
3500L Main Pot Cover Elements

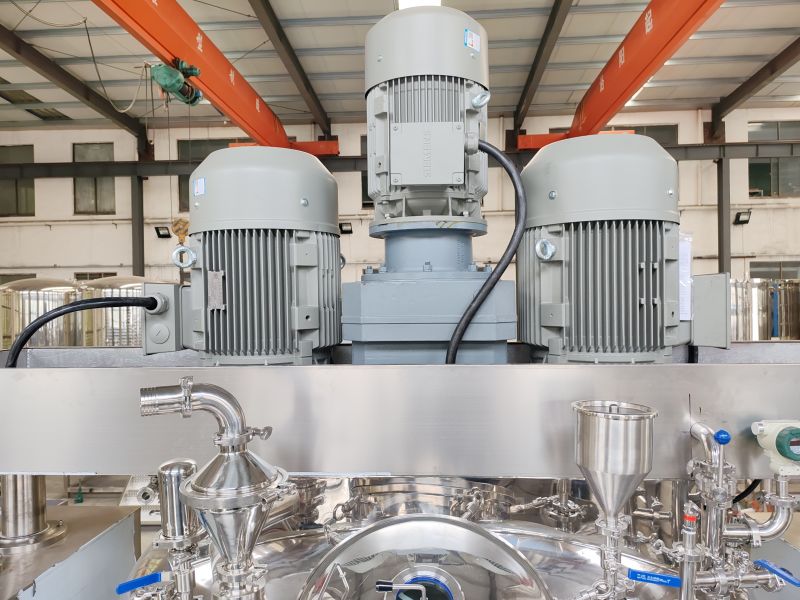

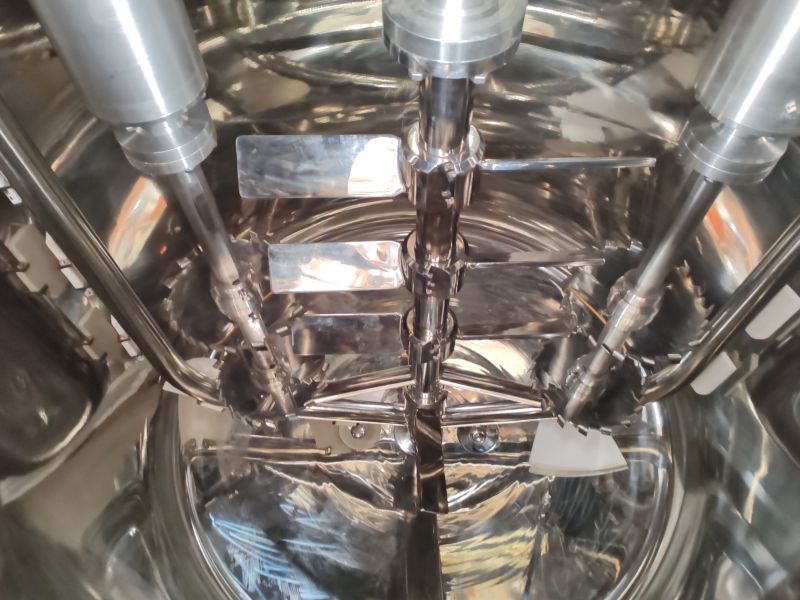

Top Mixing & Dispersing System
❓ Frequently Asked Questions (FAQ)
1. What materials are used in the construction of these mixers?
All parts that come into contact with the product are made of high-quality Stainless Steel 316L to meet GMP standards, while other surfaces are made of Stainless Steel 304.
2. What is the capacity range for these machines?
We provide a wide range of sizes to suit various production needs, starting from 50L for small batches up to 5000L for large-scale industrial manufacturing.
3. Can the machine handle both liquid and heavy paste products?
Yes, the design is highly versatile and suitable for producing both liquid creams and thick paste products like toothpaste.
4. How is the temperature controlled during the mixing process?
The machines utilize a three-layer stainless steel jacket system specifically designed for efficient steam heating.
5. Does the powder mixer support vacuum operation?
Yes, the 1500L powder mixer includes a vacuum system specifically designed for sucking powder, which helps in bubble-free production and easy material handling.
6. What type of control system is used?
The system is equipped with a modern PLC and Touch Screen interface for precise control, with electrical button controls available as an option.
