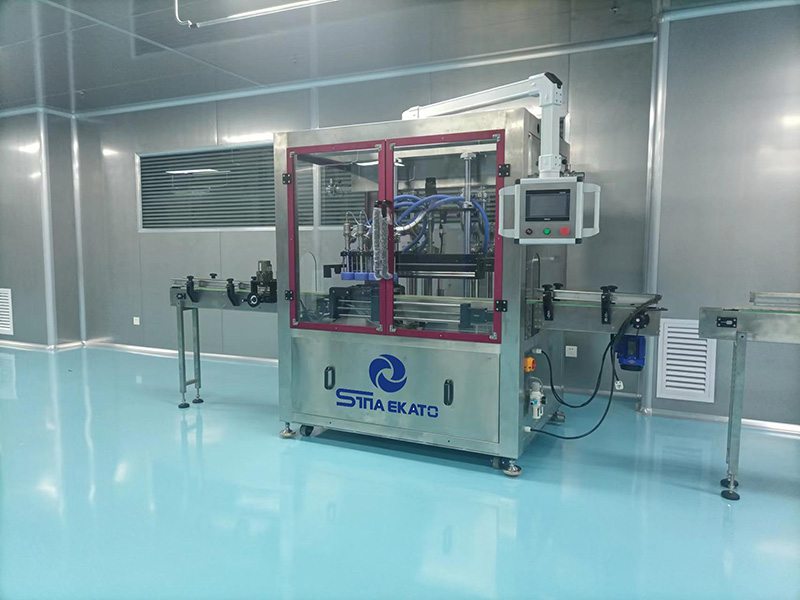

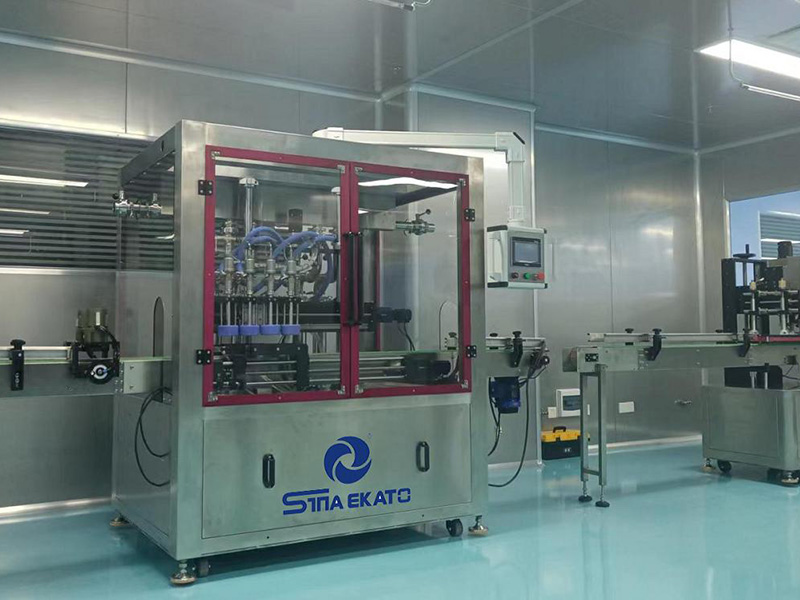

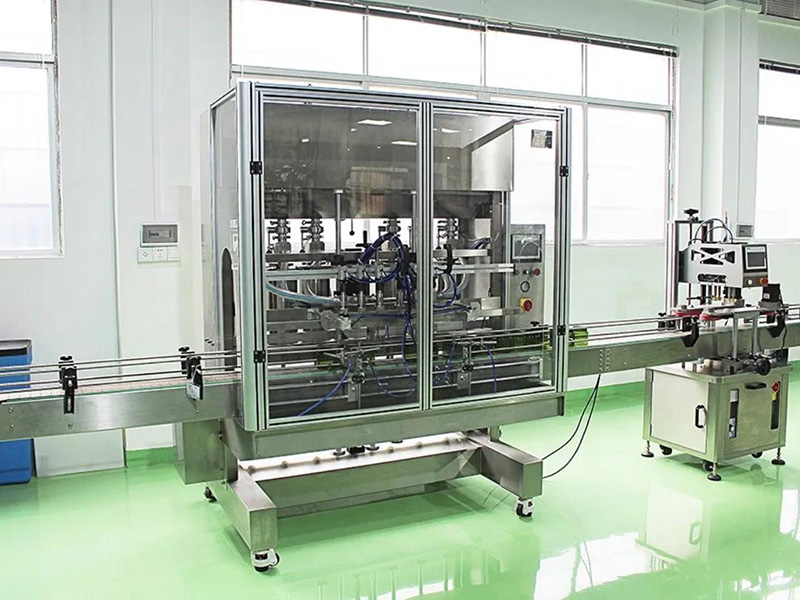

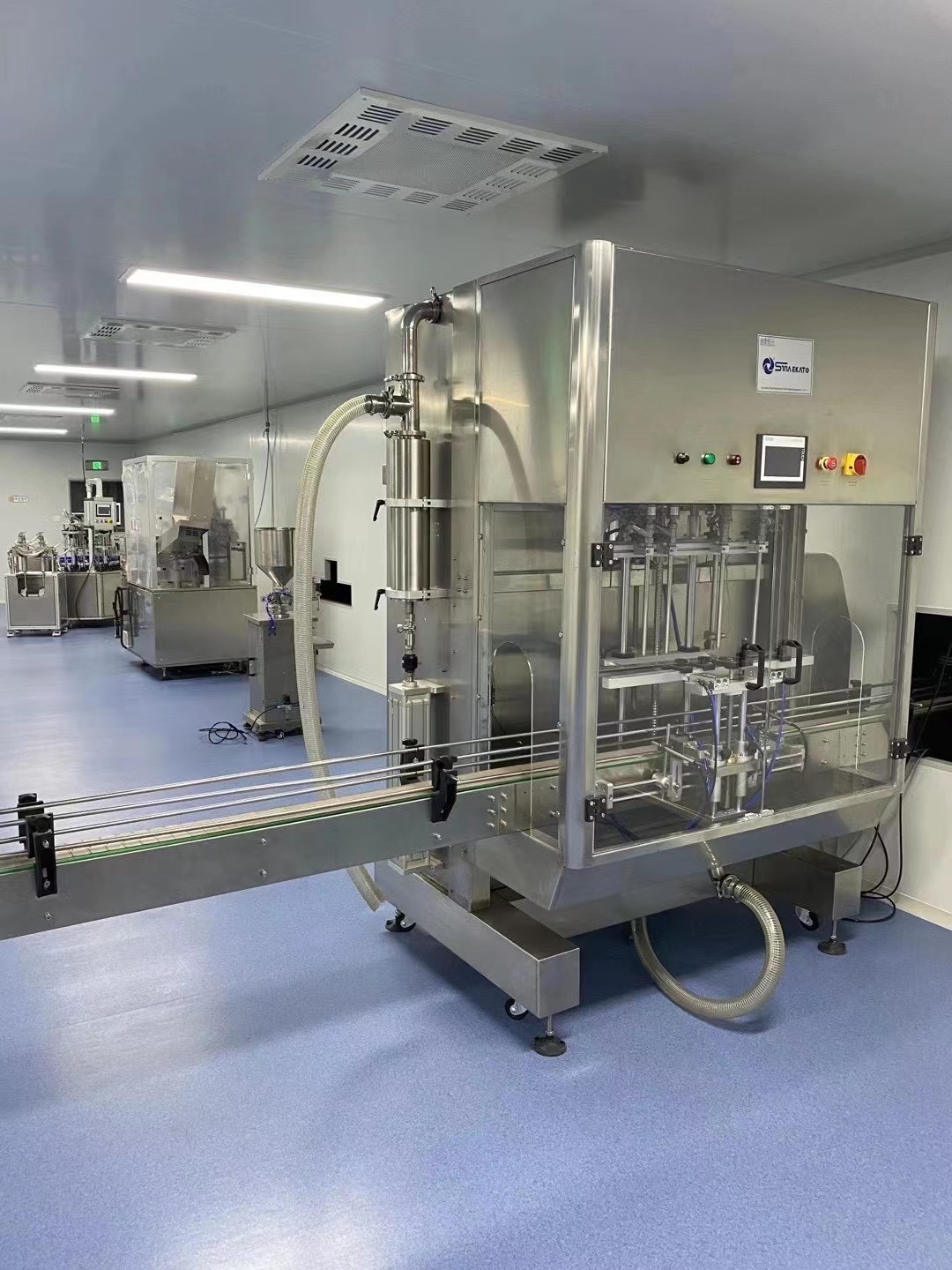

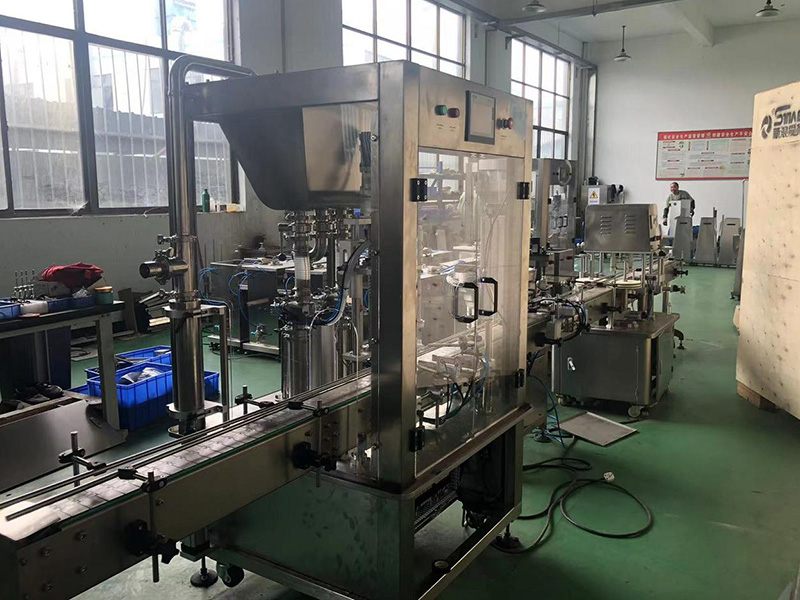

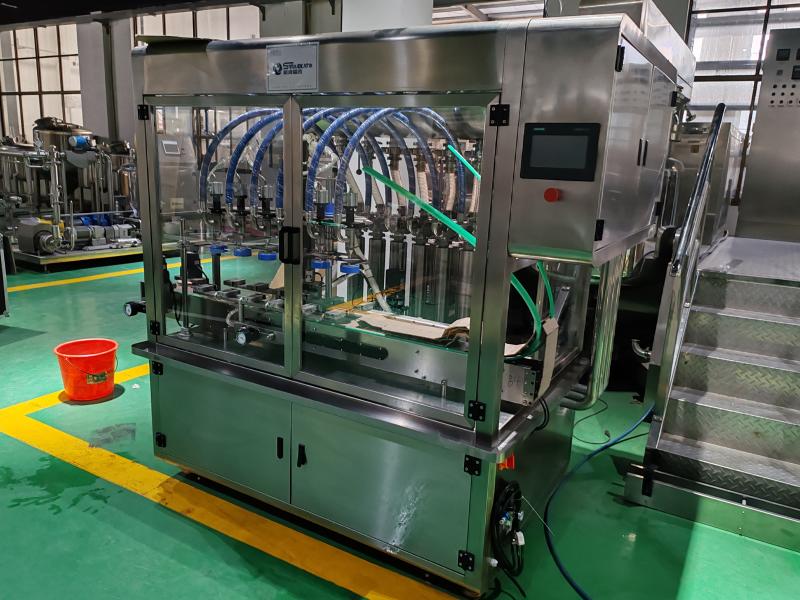

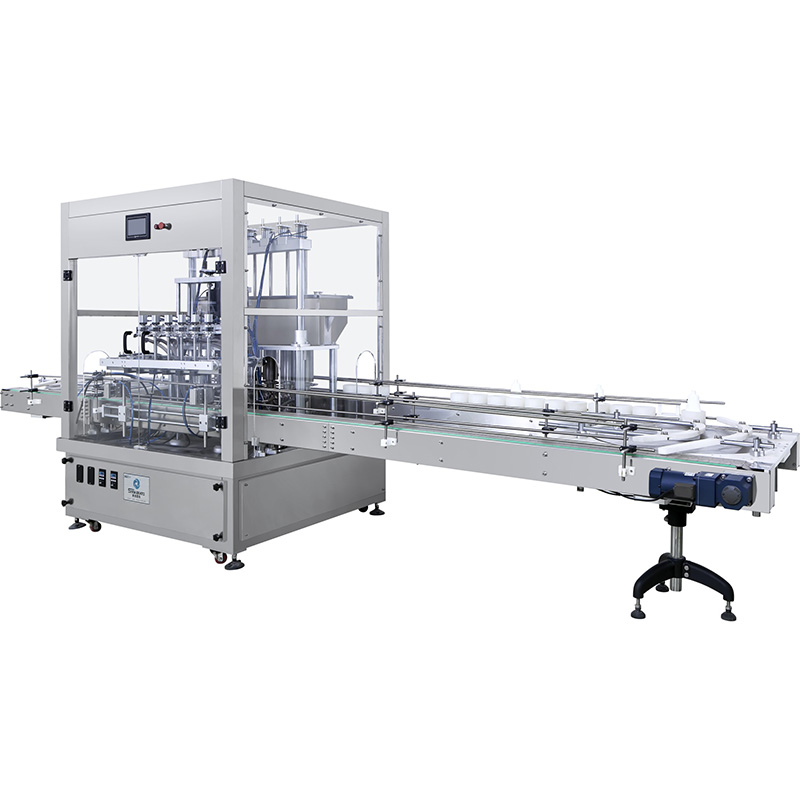

The piston fillers are designed to dispense products of different viscosity. The components that come in contact with product are made of 316 stainless steel which is sourced from Sweden and processed by CNC machines to ensure a surface roughness lower than 0.8. Main pneumatic components are from Airtac, Taiwan. PLC & Touch screen is from Siemens.
Main Applications: Lubricating oils, skin care products, hair washing products, body washing, hair care, body care, other washing products, sauces, oral liquids.
| No | Description | |
| Contact material part stainless steel 316L, other part stainless steel 304; | ||
| - |

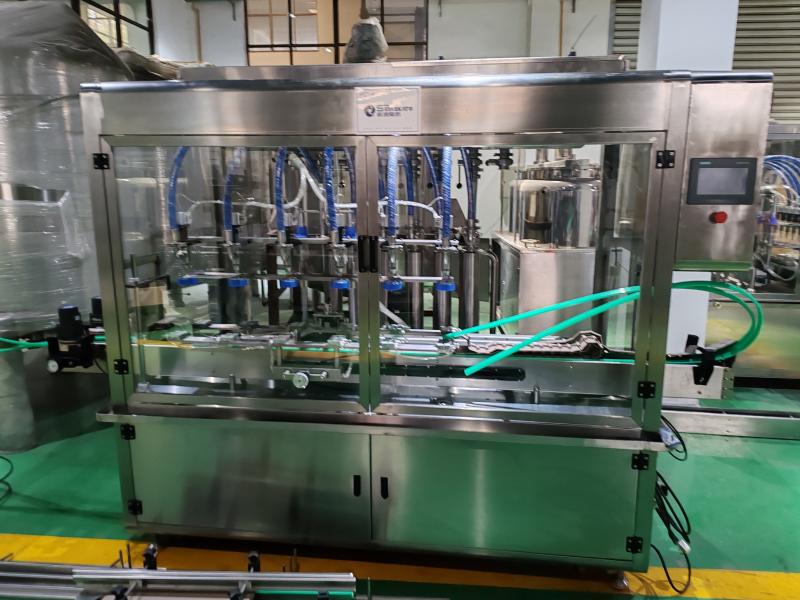

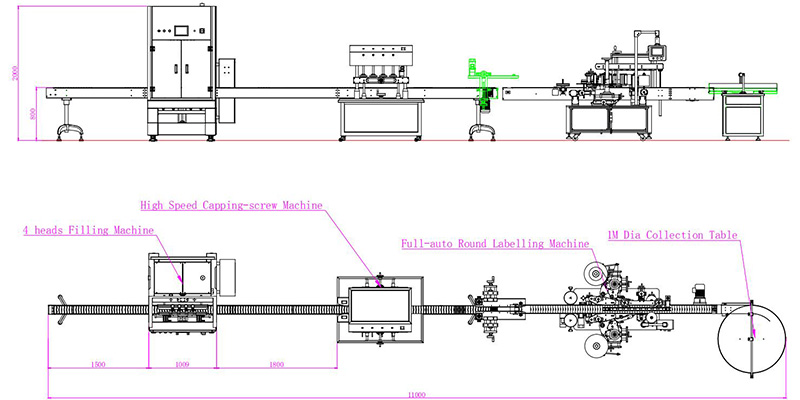

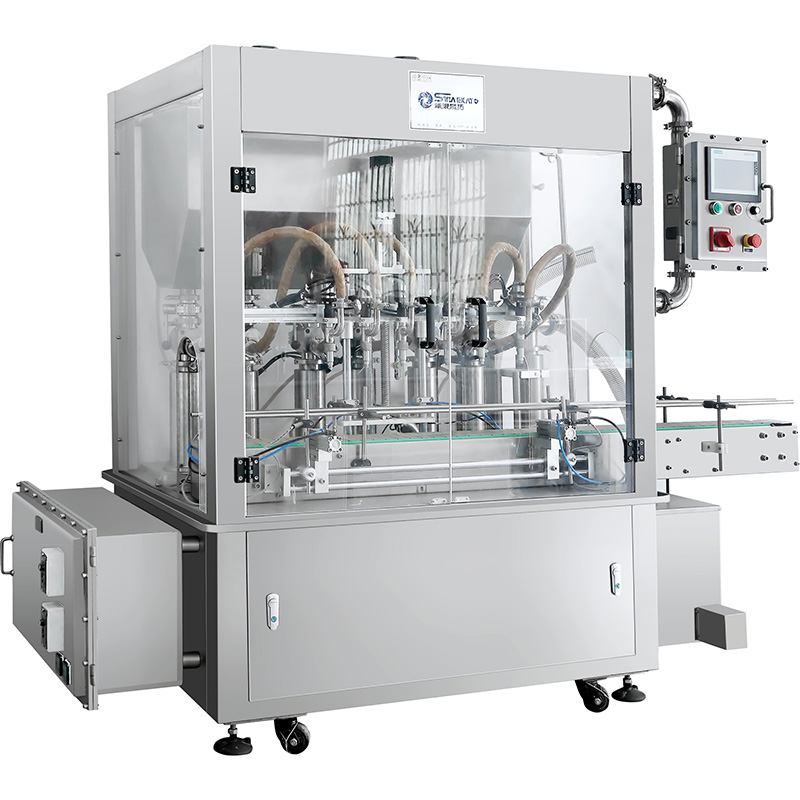

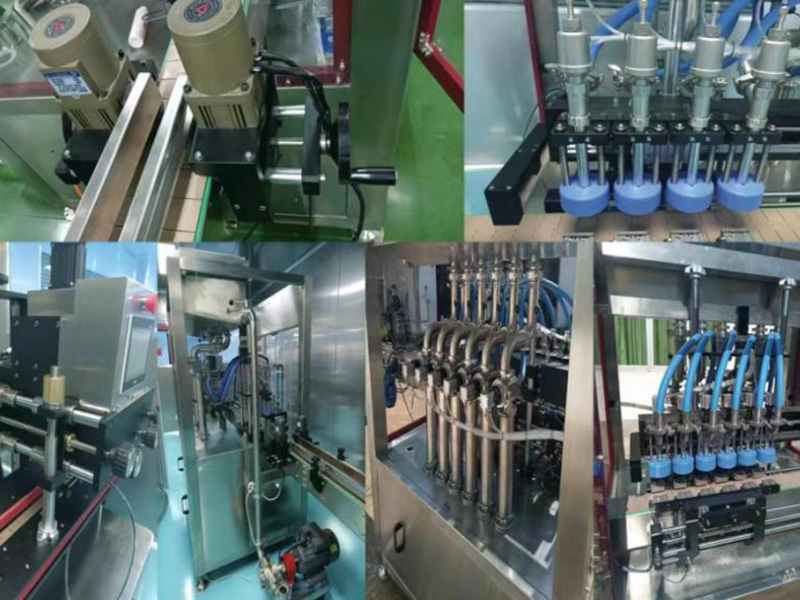

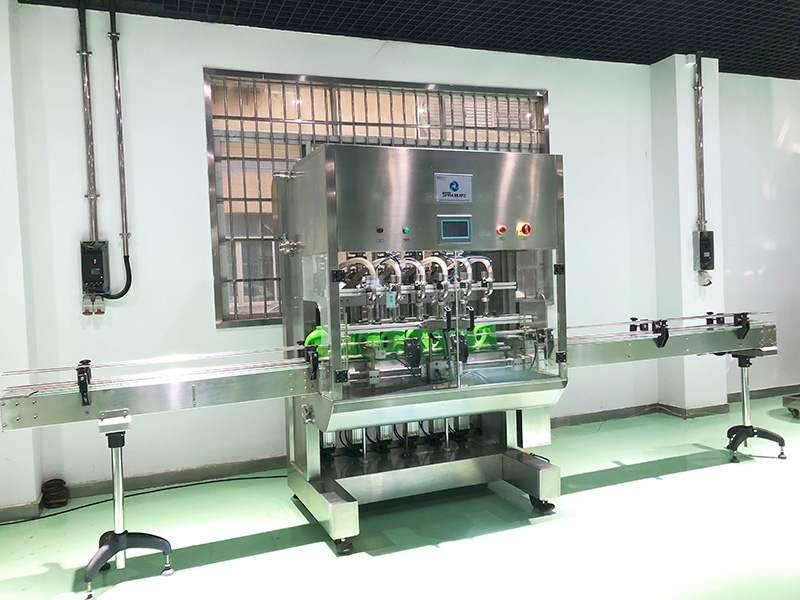

(Follow type + Servo type) 4 Heads Filling Machine: • 4 nozzles filling machine (servo motor: 1KW); • Material tank dia76*2; • Transfer valve is direct push plunger valve, cylinder model SDA32-30; • Connecting hose (quick PVC hose); • Adopt anti-drip cylinder filling head, cylinder with blowing power; • Japan Omron reflector photoelectric counting; • No bottle lack bottle no filling; • Servo filling head lifting, touch screen to set the height of bottle mouth; |
|
| 1 | Filling head: | 2, 4, 6, 8, 10, 12 heads (Accept customized) |
| 2 | Filling range: | 5-60ML; 10-120ML; 25-250ML; 50-500ML; 100-1000ML |
| 3 | Bottle height: | 50-200MM |
| 4 | Bottle diameter: | 40-110MM |
| 5 | Suitable products: | Cream, lotion, detergent, shampoo, liquid-washing products, water... |
| 6 | Filling precision: | ±1% |
| 7 | Air Pressure: | 0.6Mpa |
| 8 | Controller: | Touch screen & PLC |
| 9 | Filling speed: | 40-80 bottles/min |
| 10 | Working condition: | Power: 220V 2KW; Air pressure: 4-6KG |
| 11 | Dimension: | 5000*1300*1950mm |
| No | Name | Original |
| 1 | PLC | SIEMENS |
| 2 | Touch screen | SIEMENS |

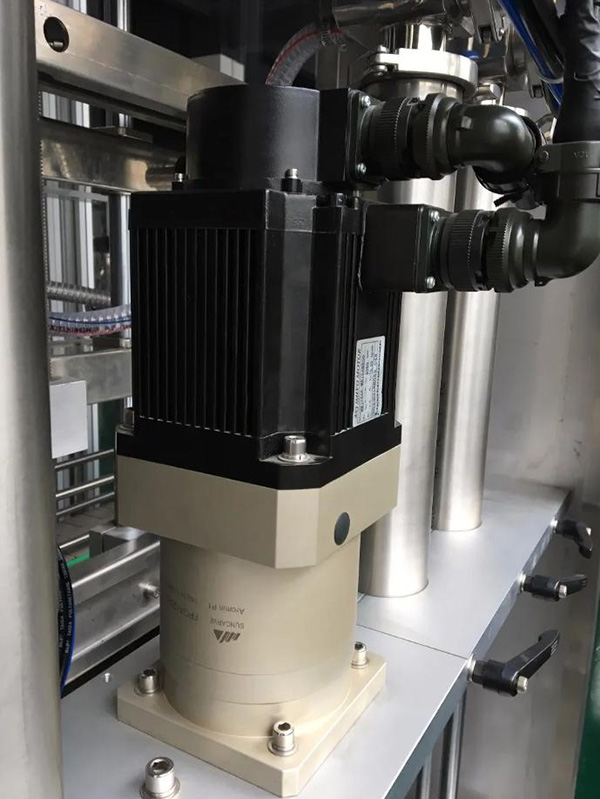

| 3 | Servo motor (Filling) | MITSUBISHI |

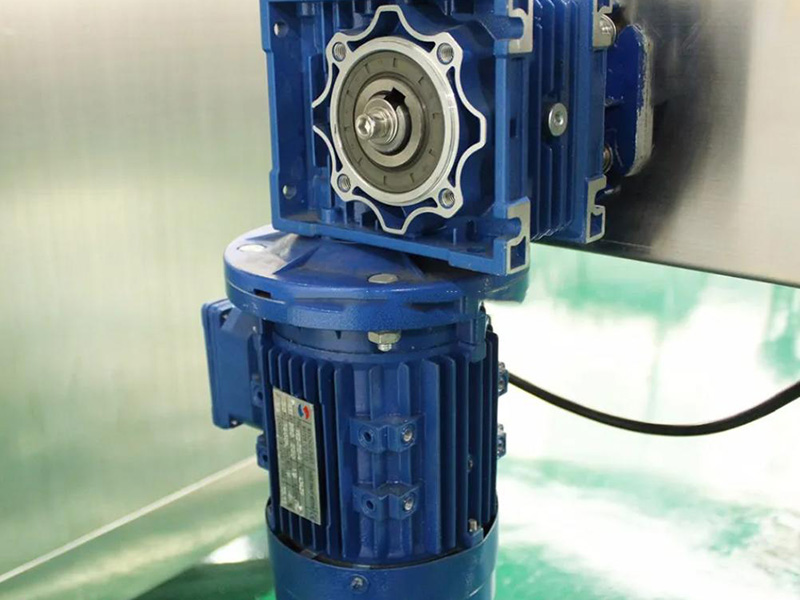

| 4 | Conveyor belt motor | JSCC |
| 5 | Alternating current contractor | Schneider |
| 6 | Emergency scenter | Schneider |
| 7 | Power Switch | Schneider |
| 8 | Buzzer | Schneider |
| 9 | Converter | MITSUBISHI |
| 10 | Filling nozzle cylinder | AirTAC |
| 11 | Rotary valve cylinder | AirTAC |
| 12 | Blocking bottle cylinder | AirTAC |
| 13 | Clamping bottle cylinder | AirTAC |
| 14 | Detection of photoelectric | OMRON |
| 15 | Switch | OMRON |
| 16 | Solenoid valve | AirTAC |
| 17 | Filter | AirTAC |
All product contact parts are made of high-quality 316L stainless steel, sourced from Sweden and processed by CNC machines to ensure hygiene and durability.
Yes, the machine is equipped with a bottle mouth localizer, making it suitable for various bottle shapes, including irregular ones.
The machine offers high precision with a filling accuracy of ±1%, which can be individually fine-tuned via the touch screen interface.
The system features a "no bottle no fill" function controlled by Omron photoelectric sensors to prevent waste and maintain cleanliness.
Yes, the parts are connected with quick-release clamps, allowing for rapid disassembly and thorough cleaning between production runs.
The machine utilizes world-class components, including Siemens PLC and touch screens, and Mitsubishi servo motors for reliable operation.
