The product is mainly applied in such indust tries as daily chemical care products, biopharmaceutical industry, food industry, p aint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilizer, plastic & rubber, electrics and elec;tronics, fine chemical industry, etc. The emulsifying effect is more prominent for mat terials of high base viscosity and high solid content.
The vacuum emulsifiers include many varieties. The homogenizing systems include top homogenization, bottom homogenization, internal and external circulating homogenization. The mixing systems include single-way mixing, double-way mixing and helical ribbon mixing. The lifting systems include single-cylinder lifting and double-cylinder lifting. Various high quality products can be customized according to customer requirements.
Triple Mixing: Adopts imported frequency converter for speed adjustment, meeting diverse technological demands.

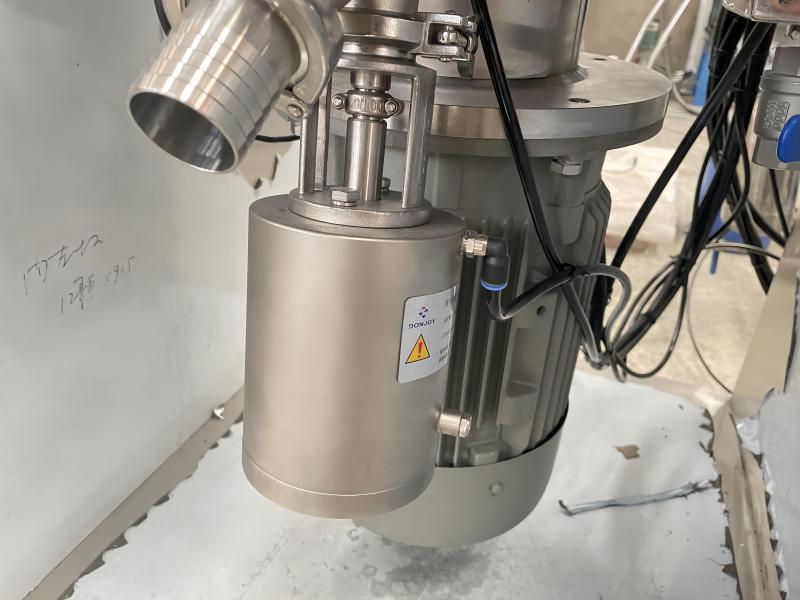

German Technology: Homogenizing structure adopts imported double-end mechanical seal effect. Max speed: 4,200 rpm; shearing fineness: 0.2-5μm.
Vacuum Defoaming: Ensures materials are aseptic. Vacuum suction for powder avoids dust pollution.

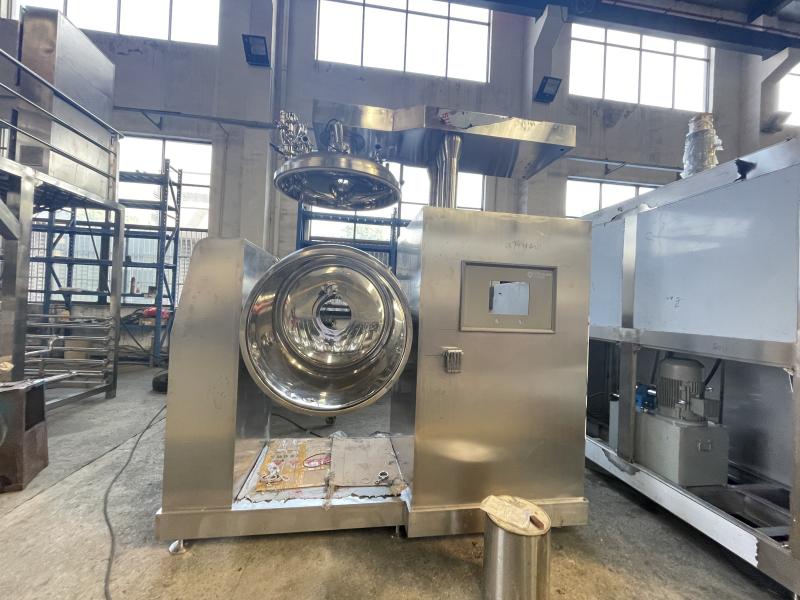

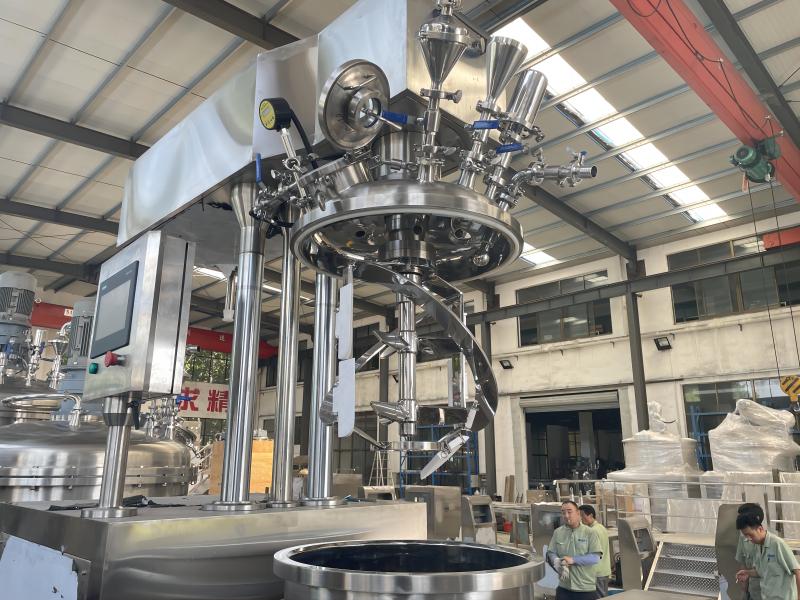

Easy Maintenance: Lifting pot lid and tilt discharge system for easy and obvious cleaning effects.
GMP Compliance: Body welded by imported three-layer stainless steel plate; mirror polishing on tanks and pipes.
Heating/Cooling: Supports steam or electric heating. Imported electrical configurations ensure stable control.
Professional Installation & Global Experience

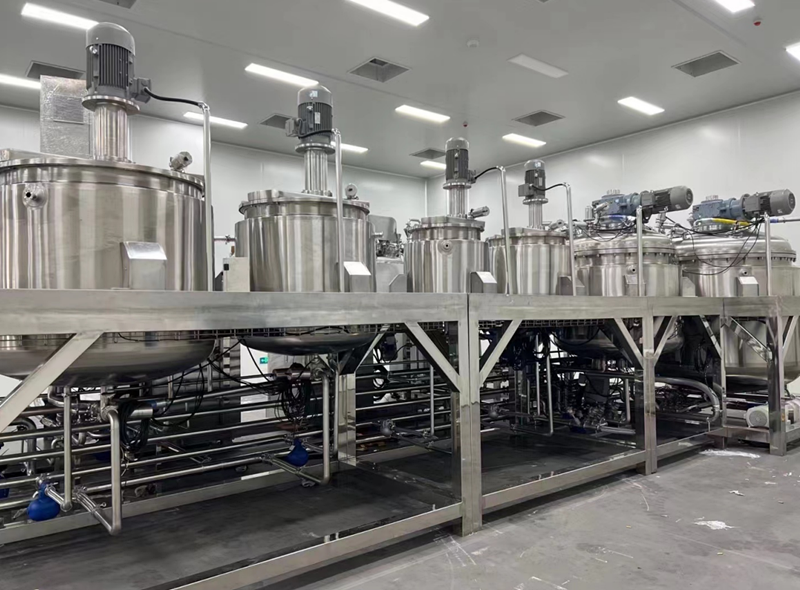

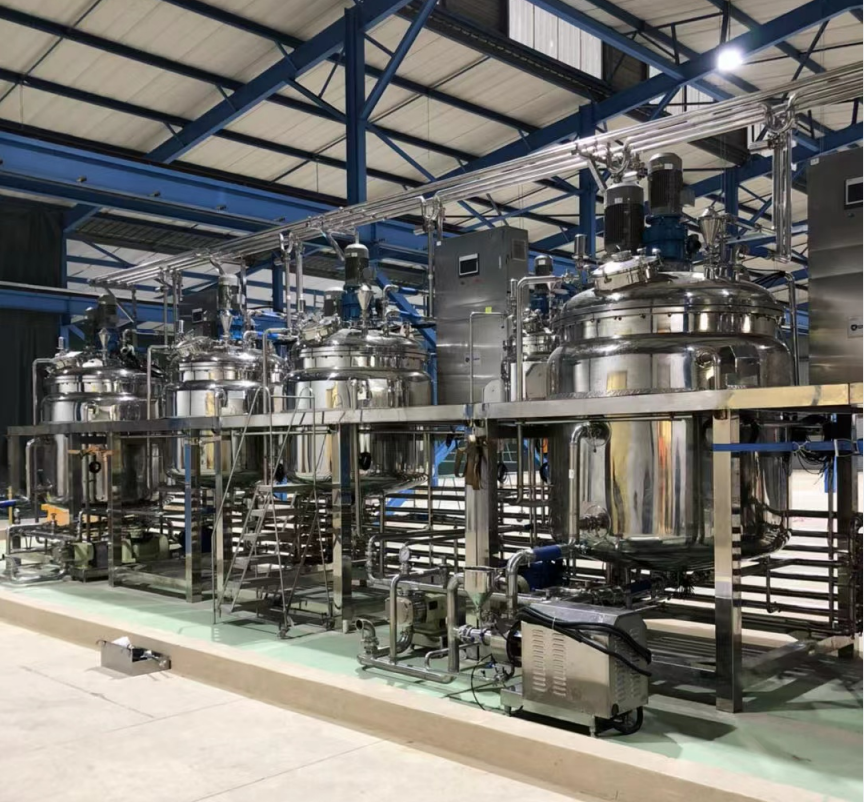

Integral installation of hundreds of large-sized projects with extensive domestic and international experience.
Internationally top-ranking professional project management and installation expertise.
After-sales personnel with practical equipment use, maintenance experience, and systemic training.
Comprehensive supply of machinery, cosmetic raw materials, packing materials, and technical consultation.

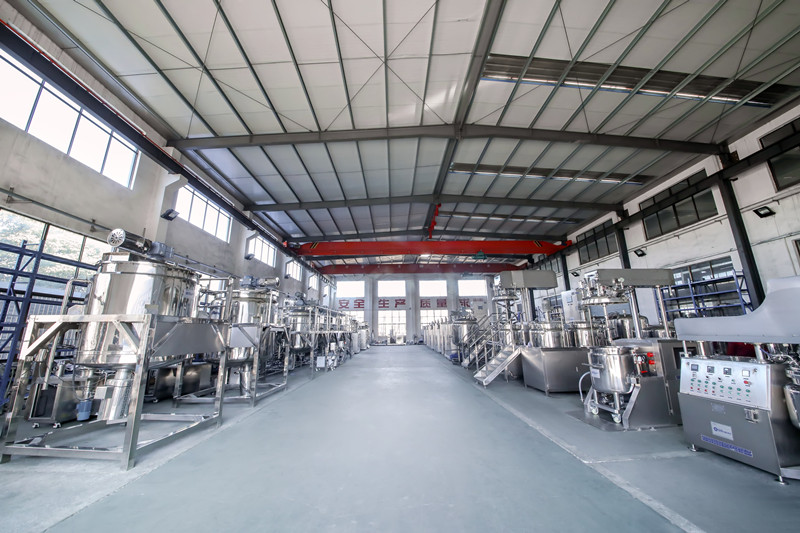

Professional Manufacturing Excellence
Under the support of high-end design centers and light industry research institutes, our engineering experts form the core of our technological strength. As a brand enterprise in the daily chemical machinery industry, our products serve sectors including cosmetics, medicine, food, chemical industry, and electronics on a global scale.
Quality Focus & Global Standards
80% of the main parts of our products are provided by world’s famous suppliers. This long-term cooperation ensures high quality and effective guarantees.
Fast delivery within 30~60 days.
Customized plans according to specific requirements.
Support for video factory inspections and finished product inspection.
Comprehensive equipment warranty for two years.
Full equipment operation videos provided.
Performances & Technical Features
The high-speed rotor endows material with high centrifugal force. Granules spread homogeneously with a uniformity degree of over 99%. Small apertures between stator and rotor ensure precise grinding, shearing, and mixing while avoiding collision friction.

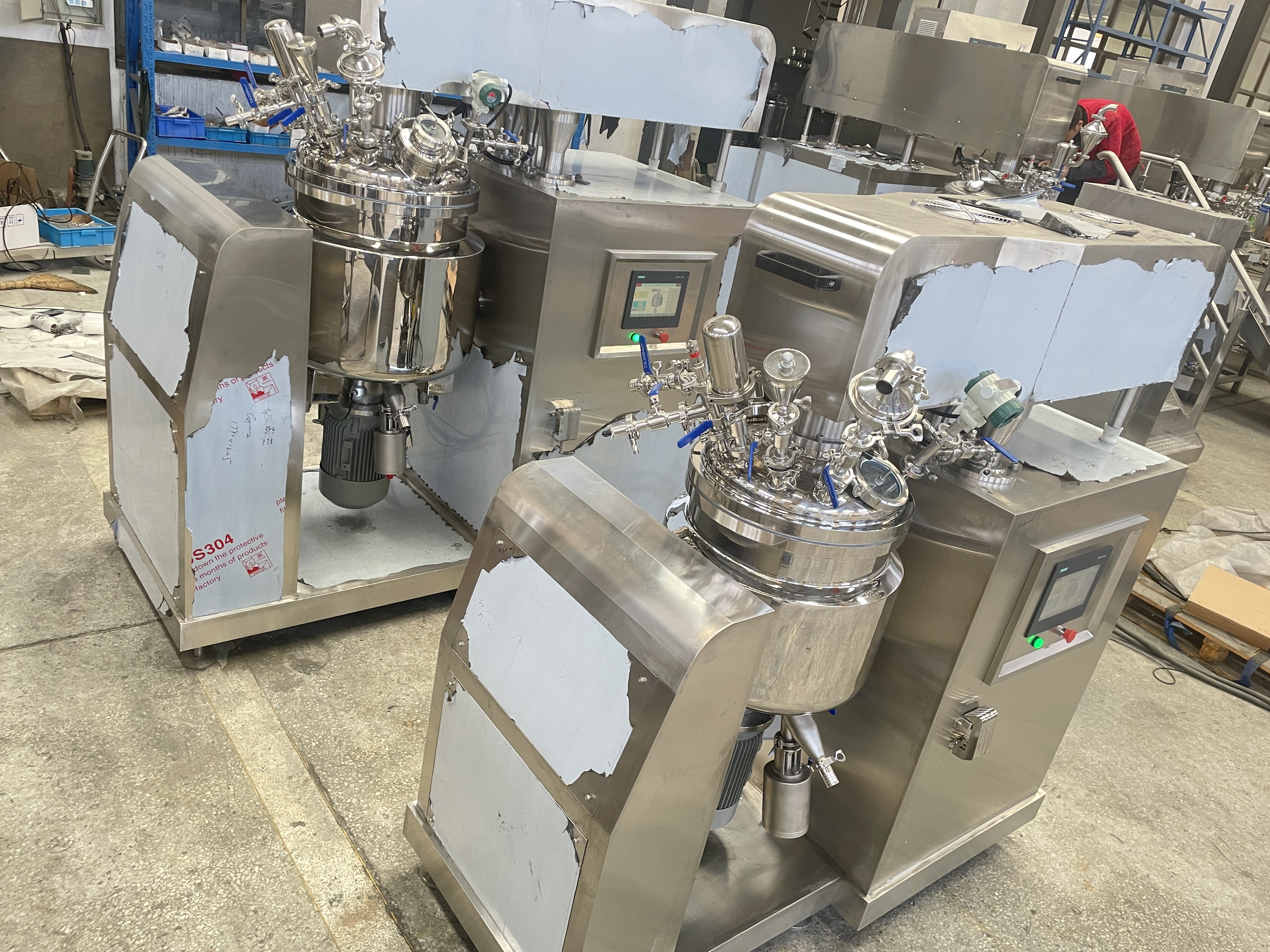

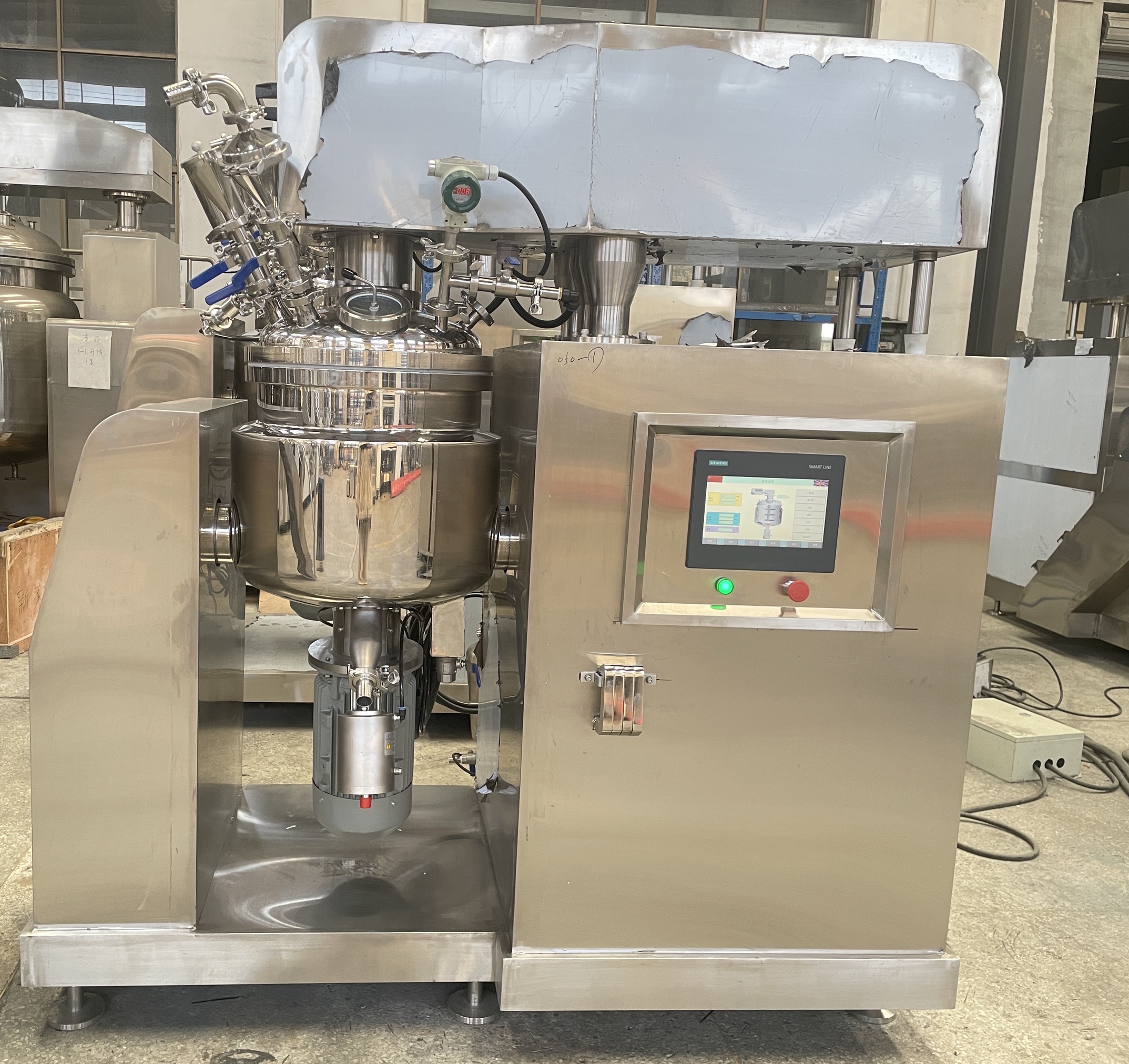

Professionally designed according to cream/paste manufacturing processes, featuring advanced European and American technology. Includes pre-mixing pots, vacuum emulsifying pot, hydraulic system, and PLC/push-button control systems.

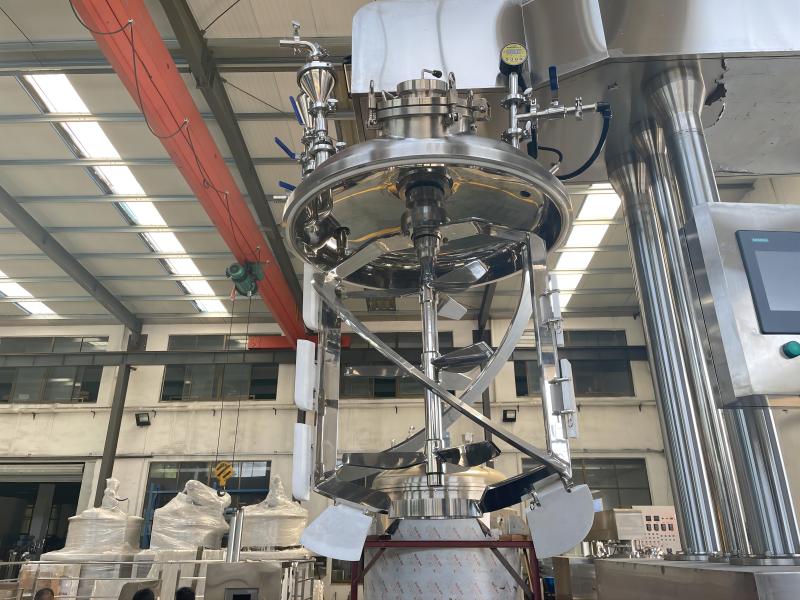

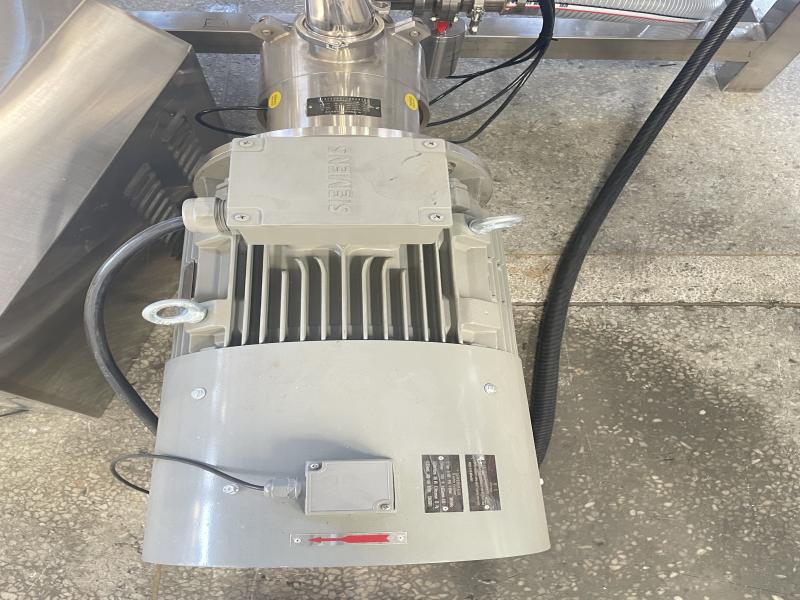

The main pot mixing system adopts two-way wall scraping screw belt mixing with German Siemens motors. Constructed with three-layer stainless steel (SUS316L for material contact, SUS304 for jacket/insulation). All components are mirror-polished to meet GMP requirements.
Specialized High Viscosity Solutions
Recommended for materials exceeding 50,000 C.P.S. Features vacuum, hydraulic pressure, heating, and cooling functions. Equipped with CIP cleaning systems for maximum hygiene.

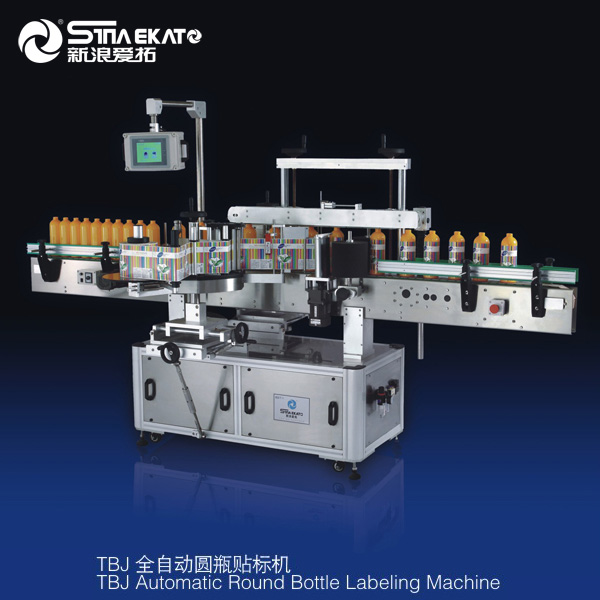

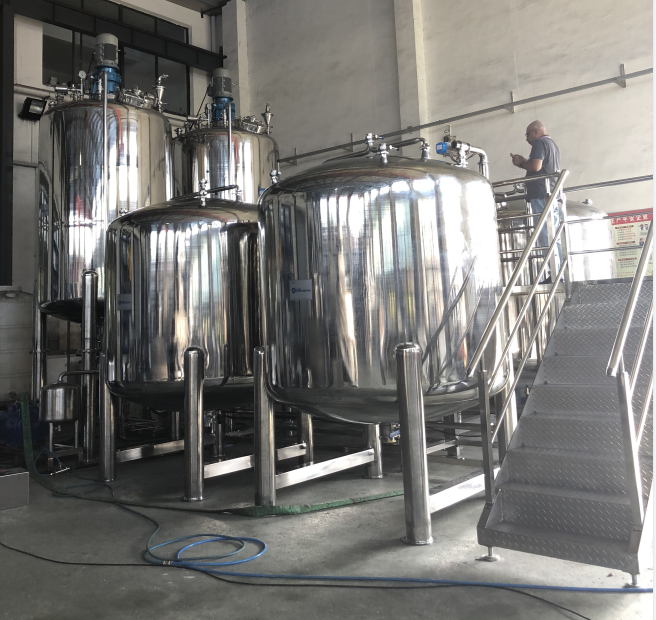

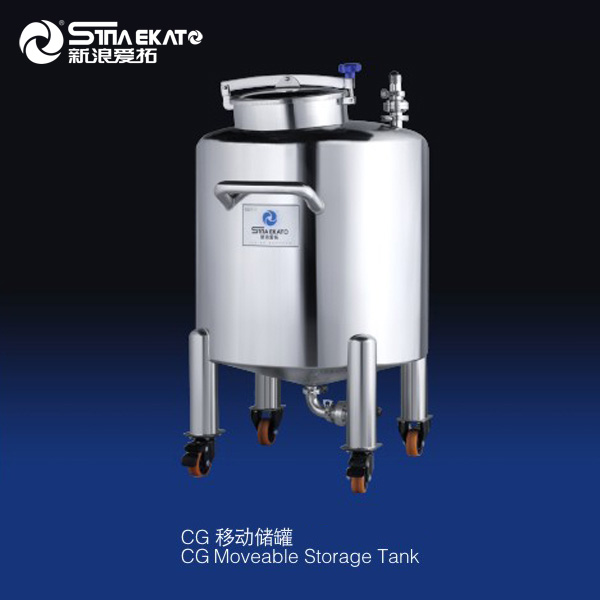

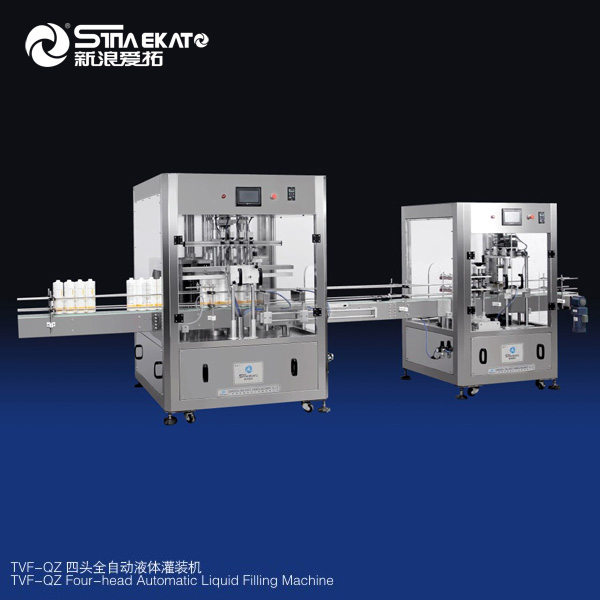

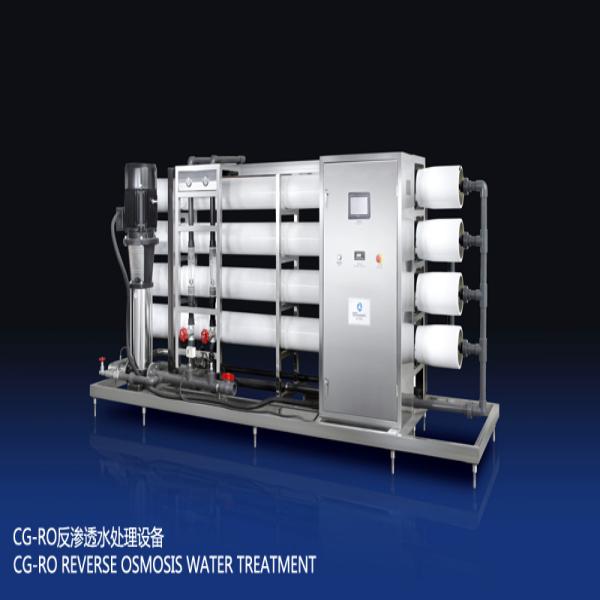

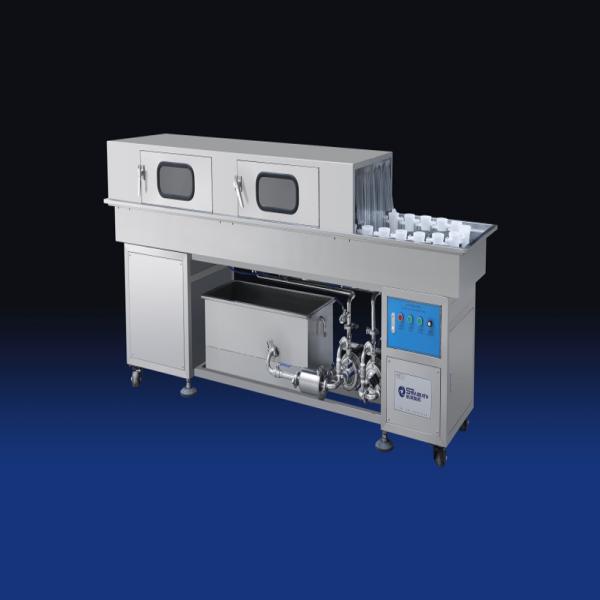

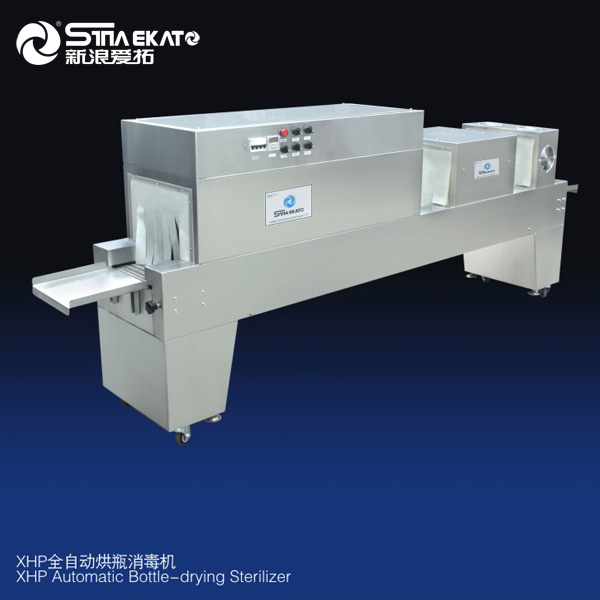

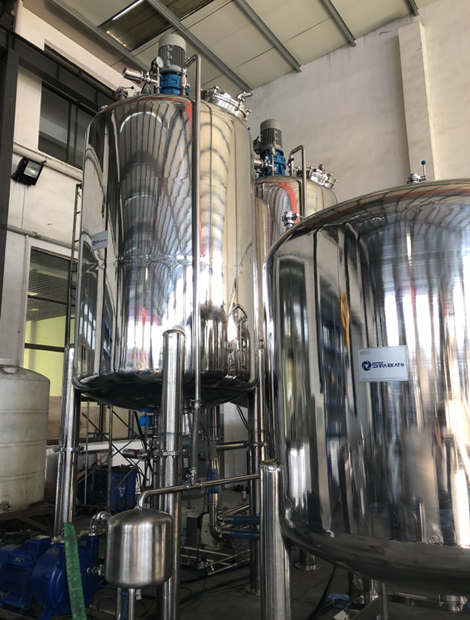

RO Treatment Water System | Auto Washing Bottle Machine | Bottle Drying Machine | Sterile Storage Tank | Auto Liquid Filling Machines | Auto Labeling Machine
Model
Capacity
Homogenizer Motor (KW/RPM)
Stir Motor (KW/RPM)
Steam Heating
Electric Heating
Limit Vacuum (Mpa)
SME-DE5
5L
0.37 / 3000
0.18 / 63
2
5
-0.09
SME-DE10
10L
0.75 / 3000
0.37 / 63
3
6
-0.09
SME-DE50
50L
3 / 3000
1.1 / 63
9
18
-0.09
SME-DE100
100L
4 / 3000
1.5 / 63
13
32
-0.09
SME-DE200
200L
5.5 / 3000
2.2 / 63
15
45
-0.09
SME-DE300
300L
7.5 / 3000
2.2 / 63
18
49
-0.085
SME-DE500
500L
11 / 3000
4 / 63
24
63
-0.08
SME-DE1000
1000L
15 / 3000
5.5 / 63
30
90
-0.08
SME-DE2000
2000L
15 / 3000
7.5 / 63
40
_
-0.08

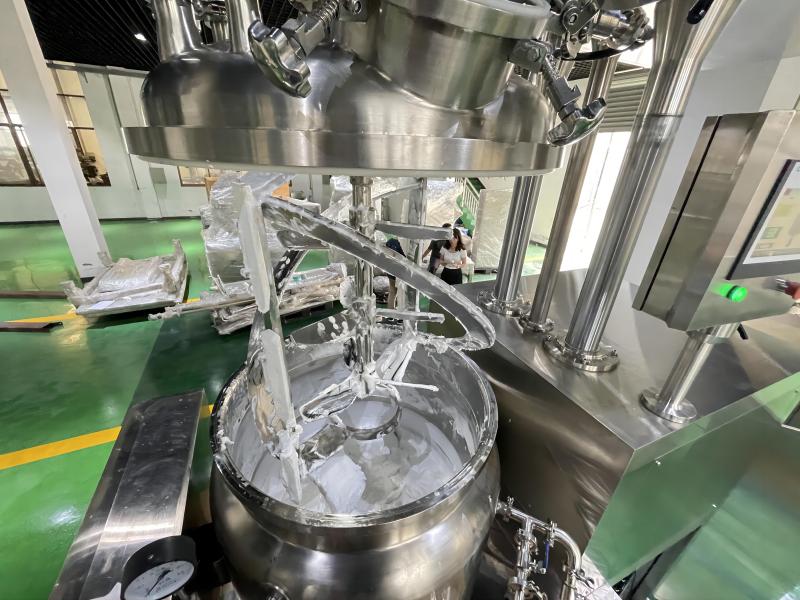

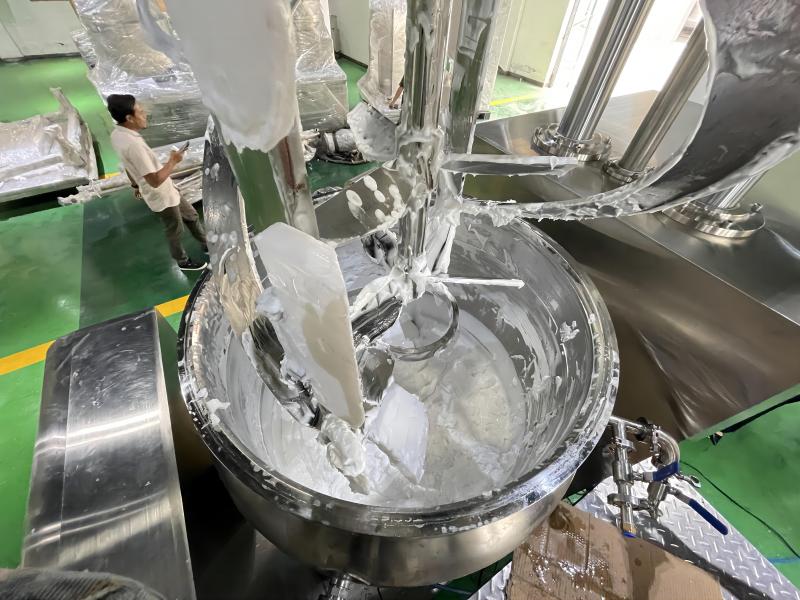

Testing face cream in the factory environment
FAQ - Frequently Asked Questions
What materials can be processed with your vacuum emulsifiers?
Our machines are professionally designed for creams, pastes, and high-viscosity materials (above 50,000 C.P.S.), widely used in cosmetics, medicine, and food industries.
Do the machines comply with international GMP standards?
Yes, all pot bodies and pipes adopt mirror polishing and are constructed from SUS316L and SUS304 stainless steel, fully conforming to GMP requirements.
What is the typical delivery timeframe?
The delivery date usually ranges between 30 to 60 days, depending on the customization requirements and equipment model.
Is it possible to inspect the equipment before shipment?
Absolutely. We support both on-site factory inspections and video-based inspections for both the factory environment and the finished products.
What heating methods are available for the tanks?
Depending on your technological needs, the tank bodies can be equipped with either steam heating or electric heating modes.
What is the warranty period for the machinery?
We provide a comprehensive two-year warranty for all our equipment, along with operation videos and technical support.
