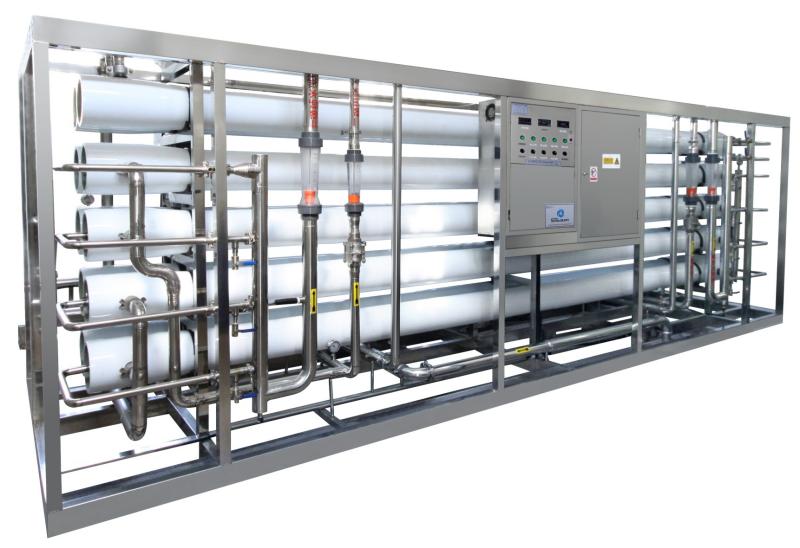

Best 500L/H-2000L/H RO Water treatment Grade One and two industrial pharmaceutical grade Factory, Factories

Reverse osmosis technology is a modern high technology developed recently in China. Reverse osmosis is to separate water from solution after it permeates the specially-made semi-transparent membrane through exerting a pressure that is higher than the osmosis pressure on the solution, As this process is reverse to the natural permeation direction, it is called reverse osmosis. According to different osmosis pressures of various materials, the process of reverse osmosis with a pressure higher than the osmosis pressure can be used to reach the purposes of separation, extraction, purification and concentration of a certain solution it does not need heating and there is no phase changing process; therefore, it saves more energy than traditional process.

Product Description

📐 Space Saving

This system occupies little space, is easy to operate, and has a wide application range.

💧 High Efficiency

Reverse osmosis desalting rate >99%, machine desalting rate >97%. Removes 98% of organic matters, colloids, and bacteria.

⚙️ Automation

High operation automation degree. It is unattended with automatic start/stop and timed flushing.

Key Advantages
  • Low operation cost and no secondary pollution (no large amounts of acids or alkalis used).
  • Excellent water conductivity: One stage ≤ 10 μs/cm, two stage 2-3 μs/cm, EDI ≤ 0.5 μs/cm.
  • Automatic flushing of reverse osmosis film by IC microcomputer controller.
  • Online display of raw water and pure water electric conductivity.
  • Imported parts account for over 90% of the system.
DUBAI Project - 2000L/Hour
Application Ranges
Electronic & Pharma

Silicon wafers, display tubes, large infusions, injections, and biochemical products.

Chemical & Electric

Chemical circulating water, product manufacturing, and power generation boiler feeding water.

Food & Beverage

Purified drinking water, beverages, beer, alcohol, and health products.

Flowchart for Two-stage Type:
Raw water → Raw water tank → Raw water pump → Sand filter → Carbon filter → Safty filter → (High pressure pump) → One stage RO → Middle water tank → (High pressure pump) → Two stage RO → Stainless steel pure water tank → Pure water pump → Using pure water point
SRI LANKA Project (1000L/H) | UK Project (1000L/H) | SOUTH AFRICA (2000L/H)
DUBAI Project (3000L/H) | SYRIA & KUWAIT Projects
Component Gallery
Anion Cation Mixing Bed | Ozone Generator | Ultraviolet Sterilizer
CG-EDI-6000L/Hour
Technical Specifications
Model Capacity (T/H) Power (KW) Recovery (%) One-stage Cond. Two-stage Cond. EDI Cond.
R0-500 0.5 0.75 55-75 ≤10 μs/cm 2-3 μs/cm ≤0.5 μs/cm
R0-1000 1.0 2.2 55-75
R0-2000 2.0 4.0 55-75
R0-5000 5.0 7.5 55-75
No Item Data
1 Description Pure water treatment purifying machine
2 Voltage AC380V-3phase
3 Component Sand + Carbon + Soften + Precision + RO Filter
4 Capacity 500-5000L/H (Customizable)
5 Control Button or PLC + Touch screen
Frequently Asked Questions (FAQ)
Q1: What is the desalination efficiency of this RO system? A: The reverse osmosis desalination rate is greater than 99%, and the overall machine desalination rate is over 97%, effectively removing organic matter, colloids, and bacteria.
Q2: Is the system fully automated? A: Yes, the system features a high degree of automation. It includes automatic start/stop based on water levels, timed flushing, and an online conductivity display.
Q3: Does the water treatment process require chemicals? A: No, the system uses physical filtration and reverse osmosis, meaning it does not consume large amounts of acids or alkalis, resulting in no secondary pollution.
Q4: What industries can use this purified water? A: It is widely used in electronics, pharmaceuticals, chemical processing, food and beverage production, and power generation boiler feeding water.
Q5: What is the quality of the finished water? A: Based on raw water ≤ 300 μs/cm, the one-stage output is ≤ 10 μs/cm, two-stage is 2-3 μs/cm, and EDI output can reach ≤ 0.5 μs/cm.
Q6: Are the system components reliable? A: Absolutely. Over 90% of the parts used in the machine are high-quality imported components to ensure long-term stability and performance.
