Daily Cosmetic Applications
Hair Conditioner
Facial Mask
Moisturizing Lotion
Suncream
Skin Care
Shea Butter
Body Lotion
Sunscreen Cream
Cream
Hair Cream
Cosmetic Paste
BB Cream
Lotion
Face Wash Liquid
Mascara
Foundation
Hair Color
Face Cream
Eye Serum
Hair Gel
Hair Dye
Lip Balm
Serum
Lip Gloss
Emulsion
Lipstick
Highly Viscous Product
Shampoo
Cosmetic Toner
Hand Cream
Shaving Cream
Moisturizing Cream
Food & Pharmaceutical Applications
Cheese
Milk Butter
Ointment
Ketchup
Mustard
Peanut Butter
Mayonnaise
Wasabi
Toothpaste
Margarine
Salad Dressing
Sauce

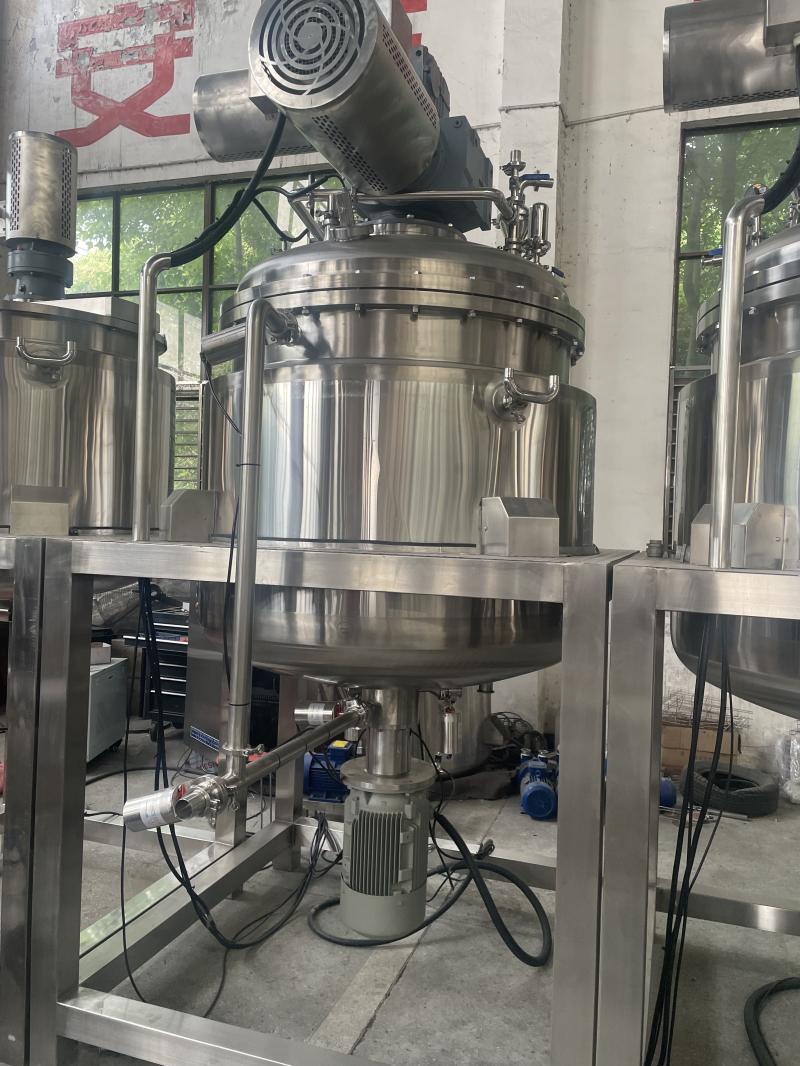

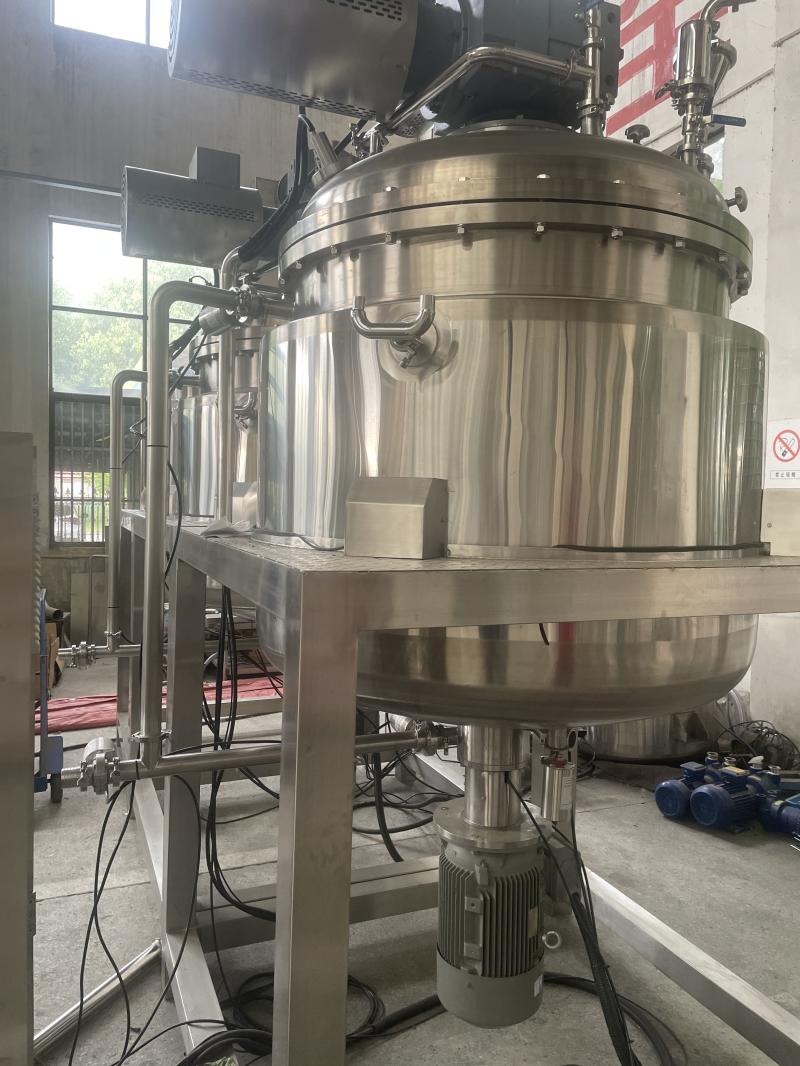

For material of super high viscosity (above 50,000 C.P.S), the high viscosity vacuum emulsifying homogenizer is highly recommended. Raw materials can be directly sucked into the groove by the machine. The machine is equipped with vacuum, hydraulic pressure, heating, cooling and other functions.
Emulsifying, blending and dispersion can be completed within a short period of time. Slow speed blade type blending and high speed homogenizing systems are provided with frequency conversion control. Users can select push button control or PLC touch screen system. Parts that contact materials are made of stainless steel SS316L. The whole equipment conforms to GMP standard. Blending is carried out under vacuum to effectively ensure the emulsifying effect. The machine equipped with CIP, which can convenient user's own CIF system to clean the machine.
🔍 Please confirm the following details for a tailored solution:
1. What is your detail of made products?
2. What is capacity of tank do you need?
3. Which heating method do you need? (Electric heating or steam heating)
4. Which type of homogenizer do you need? (Upper homogenizer or bottom homogenizer)
5. Which control do you need? (PLC touch screen control or button control)
The advantage of the homogenizing emulsifier is that it can conveniently deal with a variety of product materials. The pot lid stirring homogenizer is connected with the frame, and the hydraulic system is used to lift and lift, and the cleaning is convenient to operate. The emulsifier equipment from the laboratory to the large tonnage level processing capacity uses the homogenizing way, which a good design in structure.
Available Production Lines
🧴
Cosmetic & Pharma: Cream, ointment, skin care lotion, and toothpaste lines. From bottle washing to inkjet printing.
🧼
Liquid Detergents: Shampoo, liquid soap, and detergent production lines for household and industrial use.
✨
Specialty Lines: Perfume production, powder machines, lab equipment, and specialized food/chemical machinery.
80% of the main parts of our products are provided by world's famous suppliers, ensuring high quality and effective guarantee.
Reverse Osmosis Water Treatment
Stainless Steel Storage Tank
Fully Automatic Production Line
Technical Specifications
| Model |
Capacity |
Homogenizer Motor |
Stir Motor |
Dimension (mm) |
Total Power (KW) |
Limit Vacuum (Mpa) |
| KW |
r/min |
KW |
r/min |
Length |
Width |
Height |
Steam |
Electric |
| SME-D5 | 5L | 0.37 | 3000 | 0.18 | 63 | 1260 | 540 | 1600/1850 | 2 | 5 | -0.09 |
| SME-D10 | 10L | 0.75 | 3000 | 0.37 | 63 | 1300 | 580 | 1600/1950 | 3 | 6 | -0.09 |
| SME-D50 | 50L | 3 | 3000 | 1.1 | 63 | 2600 | 2250 | 1950/2700 | 9 | 18 | -0.09 |
| SME-D100 | 100L | 4 | 3000 | 1.5 | 63 | 2750 | 2380 | 2100/2950 | 13 | 32 | -0.09 |
| SME-D200 | 200L | 5.5 | 3000 | 2.2 | 63 | 2750 | 2750 | 2350/3350 | 15 | 45 | -0.09 |
| SME-D300 | 300L | 7.5 | 3000 | 2.2 | 63 | 2900 | 2850 | 2450/3500 | 18 | 49 | -0.085 |
| SME-D500 | 500L | 11 | 3000 | 4 | 63 | 3650 | 3300 | 2850/4000 | 24 | 63 | -0.08 |
| SME-D1000 | 1000L | 15 | 3000 | 5.5 | 63 | 4200 | 3650 | 3300/4800 | 30 | 90 | -0.08 |
| SME-D2000 | 2000L | 15 | 3000 | 7.5 | 63 | 4850 | 4300 | 3800/5400 | 40 | - | -0.08 |
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.
Frequently Asked Questions
What materials can the vacuum emulsifying homogenizer handle?
It is designed for a wide range of products including cosmetics (creams, lotions, mascara), food (mayonnaise, ketchup, peanut butter), and pharmaceuticals (ointments). It is especially effective for high-viscosity materials above 50,000 C.P.S.
Does the equipment meet international manufacturing standards?
Yes, the entire equipment conforms to GMP standards. All parts that come into contact with materials are made of high-quality stainless steel SS316L for safety and durability.
What are the available heating and cooling options?
The machine is equipped with flexible functions including vacuum, hydraulic pressure, heating, and cooling. Users can choose between electric heating or steam heating based on their facility's requirements.
How is the blending and homogenizing speed controlled?
Both the slow-speed blade type blending and high-speed homogenizing systems are equipped with frequency conversion control, allowing for precise adjustment of processing speeds.
Is the machine easy to clean between batches?
Yes, the machine is equipped with a CIP (Clean-In-Place) system. Additionally, the hydraulic lifting system for the pot lid makes internal cleaning and maintenance very convenient.
What control systems are available for the equipment?
Depending on your preference and budget, you can select either a traditional push-button control panel or a modern PLC touch screen system for automated operation.
